Maintenance
Changing the Motorised Powerhead Drive Belt (continued)
End Cap
(continued)

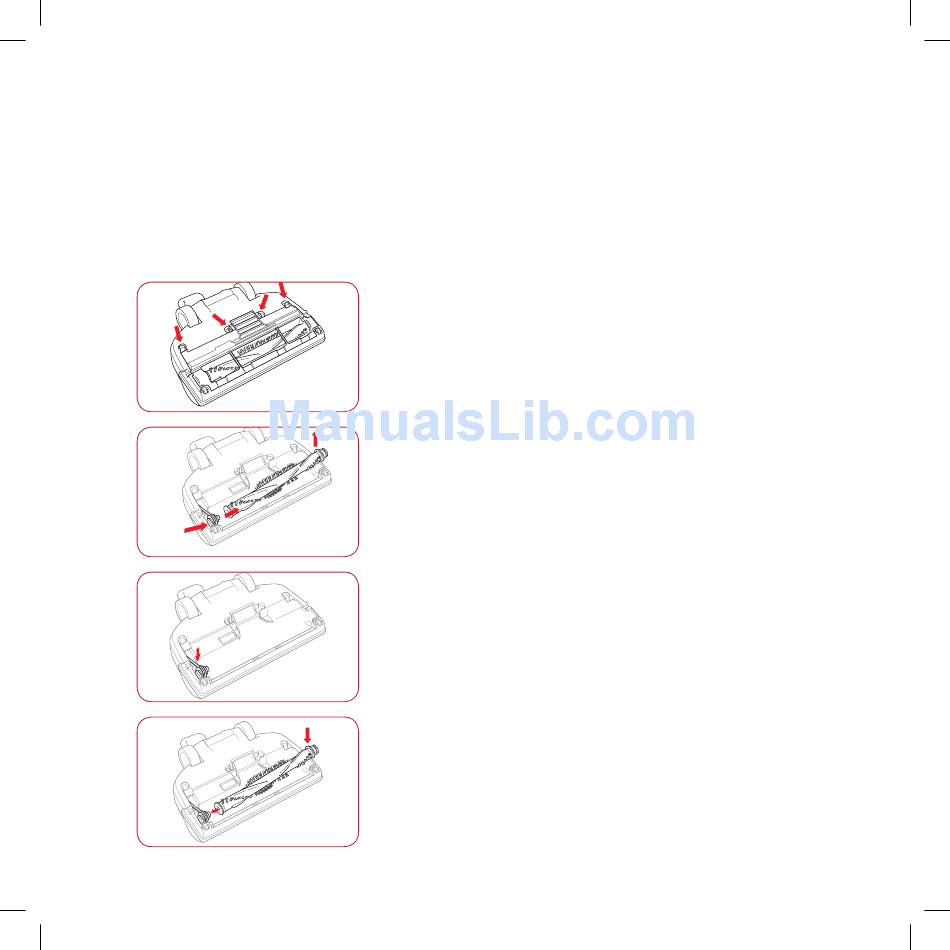

2. Turn the powerhead upside down and
squeezing the locking tabs, remove the
bottom plate.
3. First lift up the end of the rotating brush
with no belt and remove it. Then lift the
end cap where the belt loops around.
4. Slide the old belt off the drive shaft and
then the end cap. If the belt is broken,
remove all the broken pieces.
5. Place the new belt over the drive shaft
first and then the end cap. Make sure the
lettering on the belt is on the outside.
Insert the end cap into the groove.
6. Holding the rotating brush, insert it into
the end cap first and then into the groove
on the other side.
7. Replace the bottom plate.
