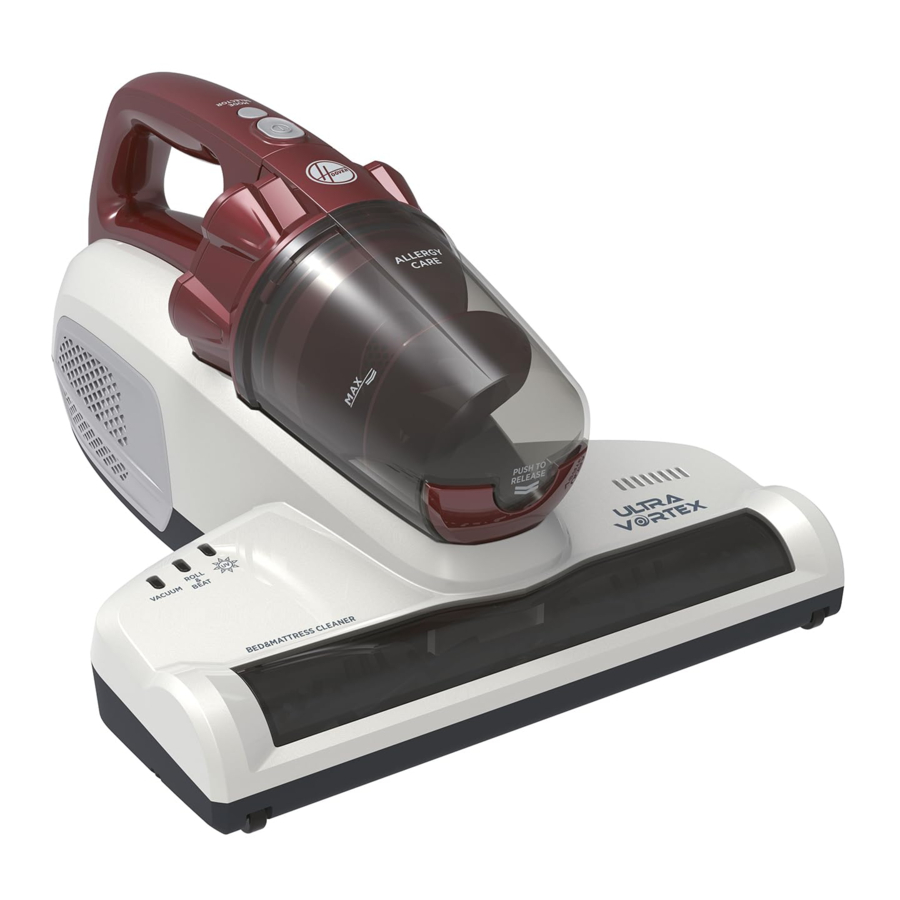

Hoover Ultra Vortex, MBC500, MBC500UV 011, MBC500UV Manual

GETTING TO KNOW YOUR MATTRESS CLEANER

1. Function Button
2. Power Button
3. Dust Cup Assembly
4. Indicator Lamps
   D1 - Vacuum Indicator
   D2 - Agitator Indicator
   D3 - UV Lamp Indicator
5. Dust Cup Top Cover
6. Dust Cup Lower Cover

7. Pre-Motor Filter
8. Mesh
9. Dust Cup
10. Dust Cup Release Cover
11. Power Cord
12. UV Lamp
13. UV Lamp Cover Plate
14. Rotating Agitator
15. Agitator Cover Plate

USING YOUR MATTRESS CLEANER

Make sure all the components are correctly assembled, Extract the power cord and plug into the power supply. The appliance will make a 3 tone sound to indicate it is ready to start.

1. Vacuum + Rotating Agitator + UV Lamp mode
   Press the on/off button [1], the appliance will automatically start up all 3 modes, Vacuum, Rotating Agitator and UV Lamp.
   This will be indicated by 3 illuminated indicator lamps D1, D2 & D3.
   At this setting, the appliance will use the UV radiation to kill mites, bacteria, and other harmful organisms.
   The rotating agitator will disturb and loosen any dust allowing the appliance to vacuum the debris into the dust cup.
2. Vacuum + Rotating Agitator mode
   Press the on/off button [1], the appliance will automatically start up all 3 modes, Vacuum, Rotating Agitator and UV Lamp, to switch off the UV lamp, press the Function Button once [1].
   This will be shown by 2 illuminated indicator lamps D1 & D2.
   At this setting, the appliance will use the rotating agitator to disturb and loosen any dust allowing the appliance to vacuum the debris into the dust cup.
3. Vacuum + UV Lamp mode
   Press the on/off button [1], the appliance will automatically start up all 3 modes, Vacuum, Rotating Agitator and UV Lamp, to switch off the Rotating Agitator, press the Function Button twice [1].
   This will be shown by 2 illuminated indicator lamps D1 & D3.
   At this setting, the appliance will use the UV radiation to kill mites, bacteria, and other harmful organisms. The Vacuum function will vacuum the debris into the dust cup.

   In order to avoid accidental injury, the UV lamp WILL ONLY WORK when within a distance of 5cm from the object being cleaned or at a working angle less than 30 degrees. If the cleaner is outside these parameters then the UV LAMP INDICATOR D3 and the UV lamp will SWITCH OFF AUTOMATICALLY.
   At any time during use, press the On/Off Button to switch the appliance off.

MATTRESS CLEANER MAINTENANCE

1. Dust Cup Cleaning
   Turn off the appliance, unplug the power, press the dust cup release button and remove the dust cup assembly [2,3].


   Rotate the dust cup and remove [4] Empty the contents of the dust cup and clean [5].


   Unlatch the dust cup top cover [6], remove the Pre-motor filter and wash with hand warm water [7], allow to dry thoroughly before replacing in the appliance. Rinse and wipe clean any dust build up on the Mesh [7] After cleaning, refit the dust cup to main body [8,9].




   Cleaning the Washable Filters
   To maintain optimum cleaning performance regularly remove the filters and tap against the side of the bin to release dust. The filters should be washed under hand warm water when the filter has excessive dust level. Do not use hot water or detergents.

   All bagless cleaners require regular filter cleaning. Failure to clean your filters may result in air blockage, overheating and product failure. This may invalidate your guarantee.
   *certain models only
   ** May vary according to model

   Always ensure the filters are fully dry before use. Do not use the product without the filter fitted.
2. Agitator Cleaning
   To remove the agitator cover plate, remove the screw, press the 4 release clips and remove the agitator cover plate [10].
   Using scissors, carefully cut and remove any tangled threads or hair etc from the agitator body. After cleaning replace the agitator cover [11] and secure the cover in place using the screw.


3. UV Lamp Cleaning
   To remove the UV Lamp cover plate, remove the 2 screws [12] and remove the UV cover plate.
   Use a dry soft cloth or cotton swab to gently wipe clean the lamp [12].
   After cleaning replace the UV Lamp cover plate and secure the cover in place using the 2 screws.


1. The penetrability of the UV lamp is weak, any paper, lead, glass or plastic may greatly reduce the intensity of UV irradiation. Any dust or oil on the UV lamp will directly affect the penetrability. The UV lamp should be cleaned regularly.
2. Do not touch the UV lamp with your bare finger, the stain you leave on it will affect the penetration of sterilization light.
3. Regularly check and maintain the filters.
4. If the appliance will not be used for a long time, please store the appliance in a cool dry place, do not store your appliance in damp conditions or in direct sunlight.

TROUBLE SHOOTING

The following is a list of commonly encountered problems and solutions.
If any of these problems persist contact your local Hoover representative.

INSTRUCTIONS FOR SAFE USE

This appliance should only be used for mattress, blanket, pillow, cushion, sofa and other textiles cleaning, as described in this user guide. Please ensure that this guide is fully understood before operating the appliance. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. If the power cord is damaged stop using the appliance immediately. To avoid a safety hazard, an authorised Hoover service engineer must replace the power cord.
Use only attachments, consumables or spares recommended or supplied by Hoover.
Do frequently clean the dust cup and pre-motor filter assembly.
Do not leave the appliance plugged in. Always switch off and remove the plug from the socket after use, or before cleaning the appliance or any maintenance task.
Do not pick up hard or sharp objects, matches, hot ashes, cigarette ends or other similar items.
This product is with UV lamp, avoid watching the bottom of the machine in the case of power on, to prevent UV radiation damage to human body. Do not spray with or pick up flammable liquids, cleaning fluids, aerosols or their vapours.
Please do not use UV lamp to concentrate on working in one place for continuous use, this may damage the cleaning object.
Do not continue to use your appliance if it appears faulty.
Do not use the appliance to clean animals or people.
Do not use your appliance out of doors or on any wet surface or for wet pick up.

This appliance contains a UV emitter. Do not stare at the light source.
Hoover service: To ensure the continued safe and efficient operation of this appliance we recommend that any servicing or repairs are only carried out by an authorised Hoover service engineer.
Static electricity: Some blankets can cause a small build up of static electricity. Any static discharge is not hazardous to health.
