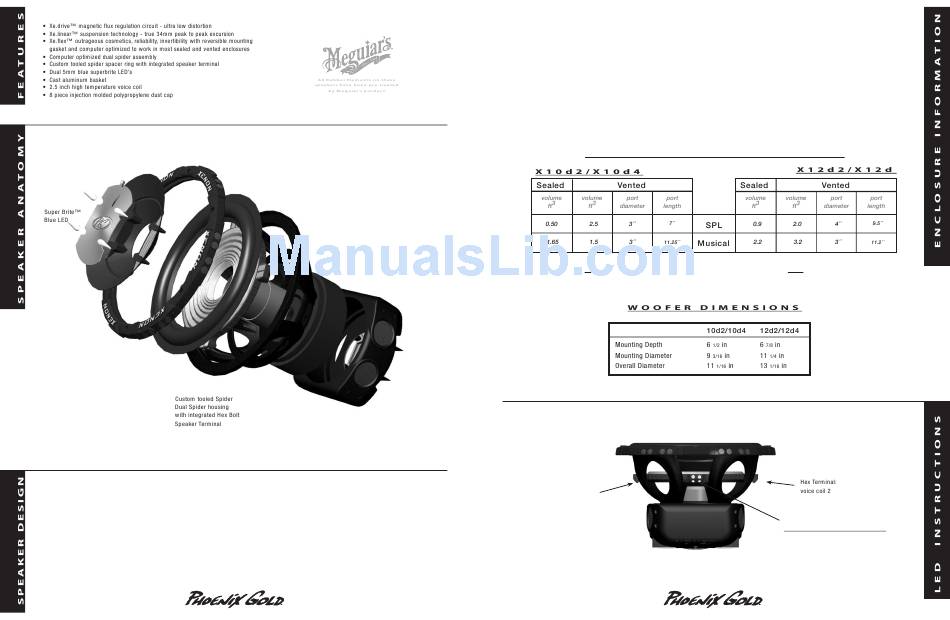

Phoenix Gold 10 AND 12 INCH HIGH EXCURSION SUBWOOFERS Quick Manual page 2

8 piece custom
tooled injection
molded dust cap
assembly
Injection-Molded custom
tooled Polypropylene cone
with integrated Dust cap
landing
Dual Custom-Tooled
Computer-Optimized
Linear SpiderS
The Xenon subwoofer was developed from the ground up to
compliment the amazing performance of our Series
Xenon
amplifiers. Utilizing cutting edge design techniques, we can deliver a
woofer that has an impressive peak to peak linear field excursion of
up to 40mm. The injection-molded 8 piece dust cap in conjunction
with the custom injection-molded polypropylene cone provides
Reversible Injection-Molded
Rubber Mounting Gasket
Four Layer 2.5 Inch Voice Coil
Heavy Duty Cast Aluminum Basket
Large, 125 Ounce, Y33 Grade
Computer Optimized
Motor Structure
Injection-Molded Rubber
Motor Housing with
integrated Expanded Metal
Venting.
exceptional musicality at very high drive levels. All of the motor (Xe.
drive) and suspension (Xe.linear) parts have been computer optimized
to provide symmetrical driving force in both directions. This translates
into very low distortion and exceptional output even as your amplifier
is running out of steam.
The Xenon subwoofers are over-engineered and overbuilt in virtually
every way conceivable. It's very important that the enclosure is built
to these same exacting standards. The enclosure must be made
of .75 inch MDF. Screws or air staples are excellent construction
fasteners when used with a strong bonding "yellow" wood working
glue that can fill joint gaps. Be sure that the enclosure panels are
airtight at all joining seams. Lining the walls with a polyester matting
1 to 3 inches thick is sufficient.
Your PG dealer has extensive knowledge, tools and the experience
needed for the design and construction necessary for your Xenon
E N C L O S U R E R E C O M M E N D A T I O N S
*The above enclosures include the driver displacement.
Hex Terminal:
voice coil 1
subwoofer application. We also recommend you consult with your
dealer for specific technical assistance related to your installation.
The charts provided should be used as a reference when building an
enclosure for your Xenon subwoofer.
The charts contain several enclosure types. The Musical enclosure
provides deeper, tighter and higher quality output to provide a more
accurate reproduction of the original source material. The SPL
enclosure, on the other hand, fits the basshead's needs of maximum
output while sacrificing some sound quality.
*The above enclosures include the driver displacement.
Small Terminal:
LED power
+ = Switched 12 Volt Power
- = Ground
