Features
• 60mm of Peak to Peak Excursion
• 3.0" Ultra High Temp Copper Wound Voice Coil
• Removable tri-LEDs for Customization or Field Service
• Radial Backplate Venting System
• Easy Connect Single Location Speaker Terminal
• Long Throw Dual Spider Suspension
• High Excursion CAE/CAD Motor Design
• Woven Tinsel Leads

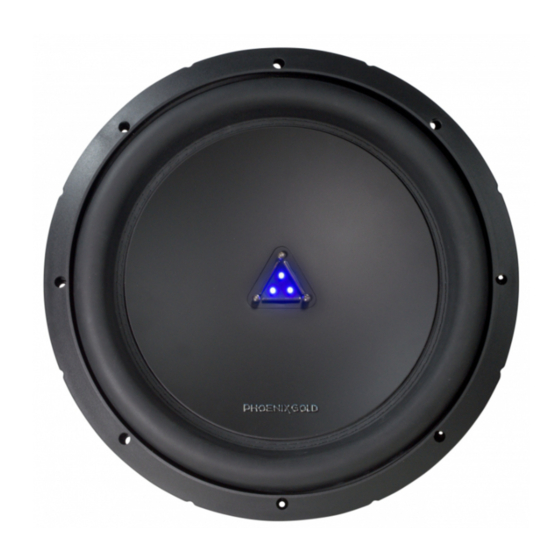

Ti312D2X
Ti312D4X
Models: Ti312D2X , Ti312D4X
• Black Anodized Aluminum Former
• Injection Polypropylene Dustcap
• High Roll Butyl Rubber Double Stitched Surround
• Optimized for Sealed or Vented Enclosures
• Rigid Powder Coated Anti-Resonant Castbasket
• Quick Disconnect Series/Parallel Wires Included
• Spare LED Assembly Included
Subwoofer Manual
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Phoenix Gold Ti312D2X
Summary of Contents for Phoenix Gold Ti312D2X

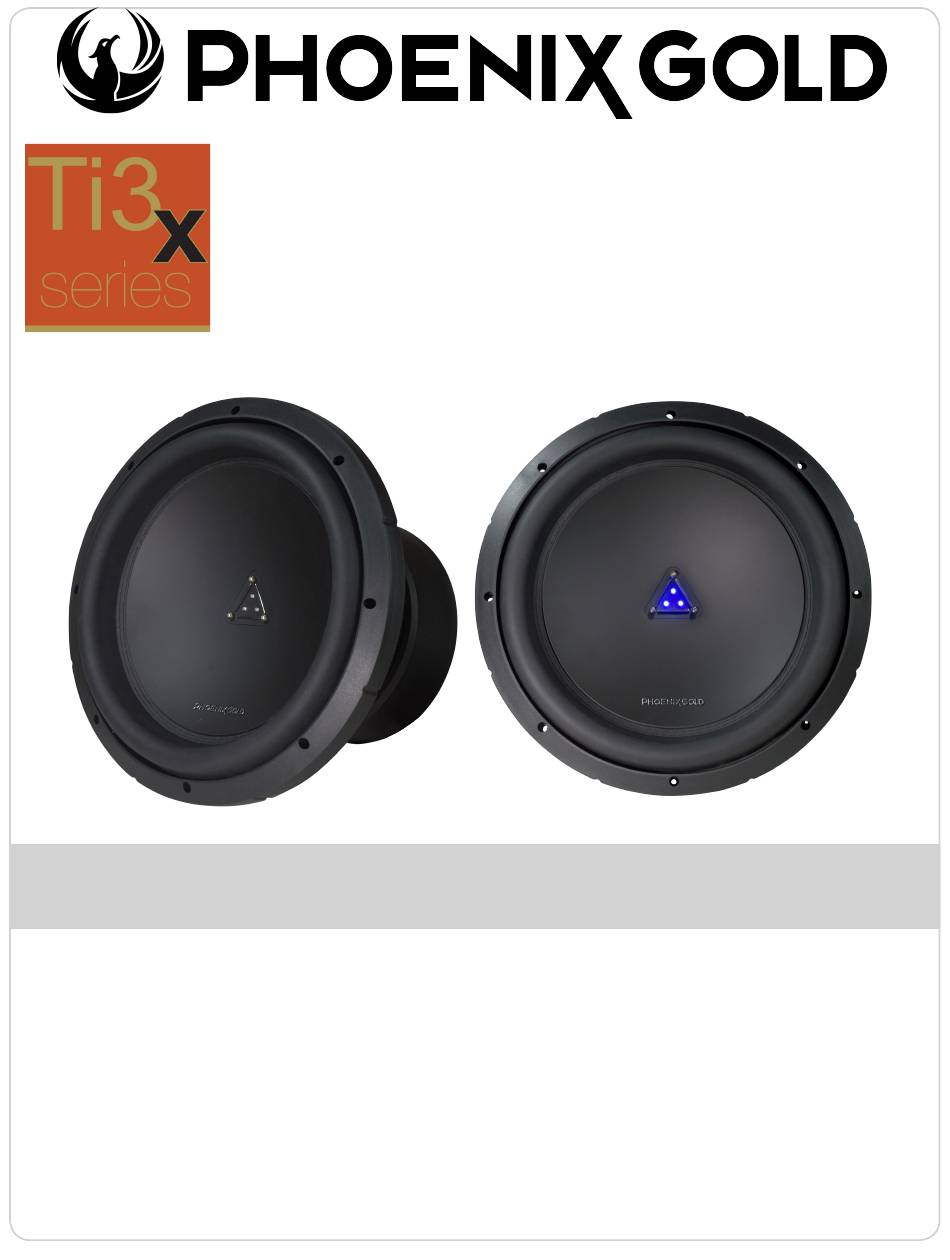

- Page 1 Ti312D2X Ti312D4X Subwoofer Manual Models: Ti312D2X , Ti312D4X Features • 60mm of Peak to Peak Excursion • Black Anodized Aluminum Former • 3.0” Ultra High Temp Copper Wound Voice Coil • Injection Polypropylene Dustcap • Removable tri-LEDs for Customization or Field Service •...
- Page 2 Subwoofer Owner’s Manual VENTED ENCLOSURE RECCOMENDATIONS VENTED - SQ VENTED - SPL VENTED - Normal Volume(cu.ft.) Volume(cu.ft.) Volume(cu.ft.) 2.25 1.75 Vent Opening(in.) Vent Opening(in.) Vent Opening(in.) 2 x 12 2 x 12 2 x 12 Vent Length(in.) Vent Length(in.) Vent Length (in.) 25.5 23.5 Tuning Freq...
- Page 3 Subwoofer Owner’s Manual LED ASSEMBLY LED Terminal: The small terminal located on the side of the basket labeled “LED” powers the LEDs. Only use 12v and Ground. Do not use the amplifier’s speaker output, it will damage the LEDs. Spare LED Assembly: Every Ti3X subwoofer includes 2 spare LED assembllies. Be sure to keep it for future use if necessary. Changing LED Colors: The spare assembly has blue LEDs.
- Page 4 LIMITED WARRANTY Phoenix Gold warrants this product to be free of defects in materials and workmanship for a period of one (1) year from the original date of purchase. This warranty is not transferable and applies only to the original purchaser from an authorized Phoenix Gold dealer in the United States of America only. Should service be necessary under this warranty for any reason due to manufacturing defect or malfunction, Phoenix Gold will (at its discretion), repair or replace the defective product with new or remanufactured product at no charge.
