7420 Cabling pt.3
7420 Cabling pt.3
Connecting Expansion Storage to the Sun Storage
7420 (4 HBAs)
The Sun ZFS Storage 7420 is available with either two, three, or four HBA cards installed, each
of which can support up to six Sun Disk shelves. The figures below show a representative
sample of stable, balanced configurations with four HBAs, as well as steps to migrate from one
state to another.
NOTE: Diagrams below are not representative of proper slot location for HBAs.
Cabling Diagrams

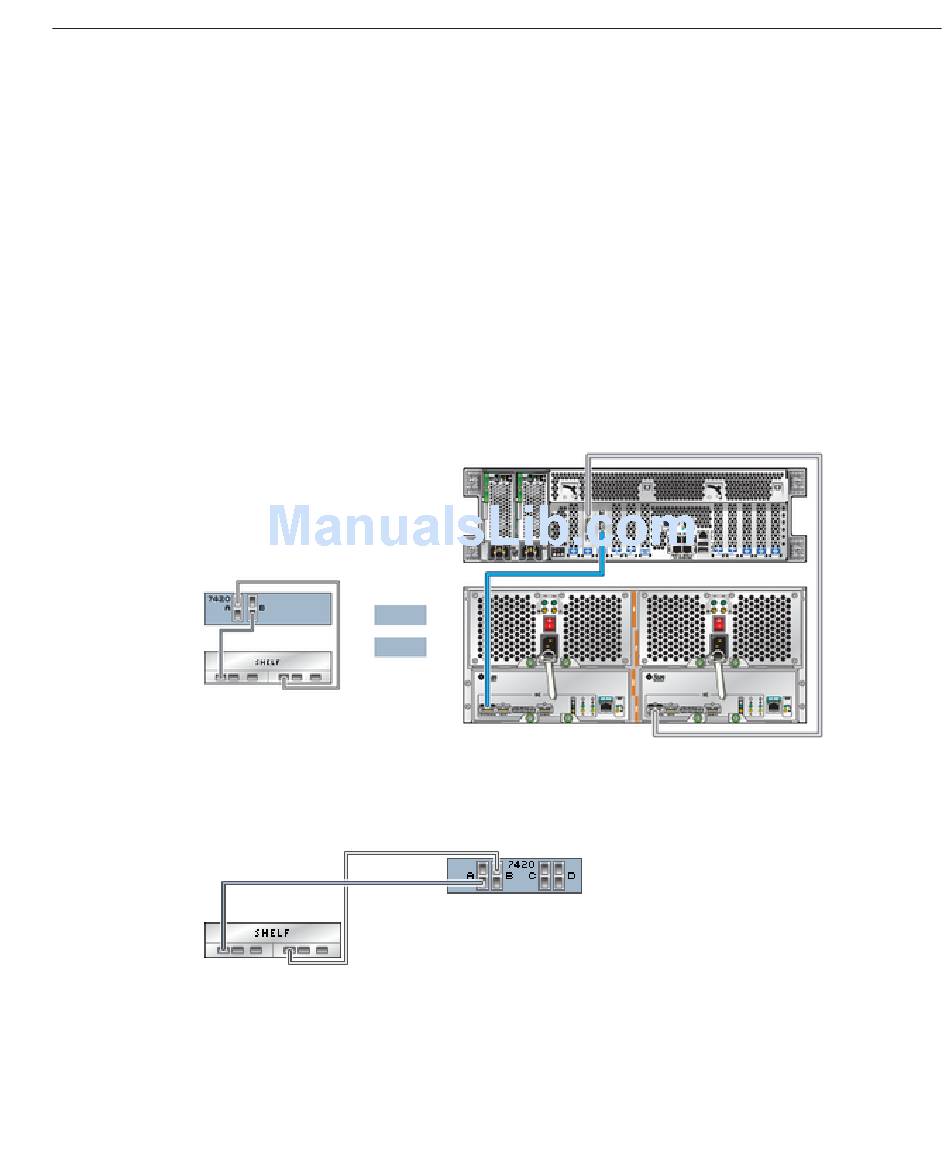

fig.1 Sun ZFS Storage 7420 with four HBAs and one Sun Disk shelf
Chapter 3 • Cabling
71
