Page 1: Installation Instructions
Installation Instructions Mac OS X Setup Guide Merlin U730/U740 HSDPA Modem © 2006, Novatel Wireless Inc. All rights reserved. Pg. 1 of 10... -
Page 2: Table Of Contents
SETTING UP YOUR EQUIPMENT ................3 SET THE NETWORK CONNECTION SETTINGS ............4 OPEN AN INTERNET CONNECTION................9 SURF THE INTERNET....................10 DISCONNECT FROM THE INTERNET ..............10 © 2006, Novatel Wireless Inc. All rights reserved. Pg. 2 of 10... -
Page 3: Introduction

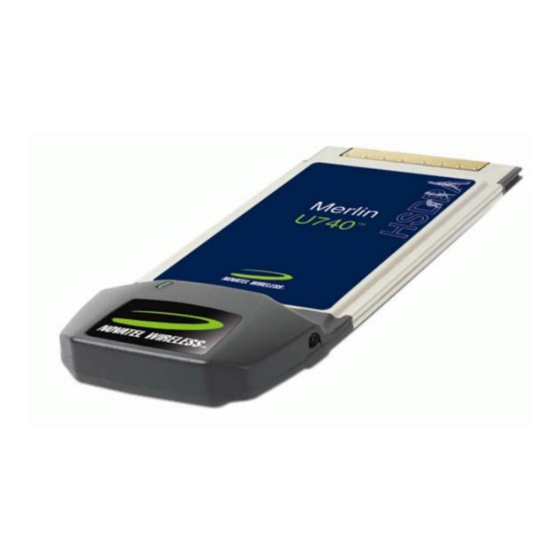

U730/U740 PC Card modem and a Apple® PowerBook® with Mac OS X 10.4 Tiger™ The Novatel Wireless Merlin U730/U740 enables you to connect to a 3G service provider and the Internet. The modem provides reliable wireless data communications with average speeds between 400 and 700 kbps and easily installs in any PowerBook®... -
Page 4: Set The Network Connection Settings
1. Make sure the card is completely inserted into the PC Card slot. 2. Launch System Preferences from the Apple ( ) menu. 3. Click the Network icon in the System Preferences window. © 2006, Novatel Wireless Inc. All rights reserved. Pg. 4 of 10... - Page 5 4. If this is the first time you insert your modem in the computer, a notification window will alert you that there was a New Port Detected and that it is a Novatel Wireless HSDPA Modem. Press OK to dismiss the notification.
- Page 6 APN supplied to you by your service provider. (Note: Enter the in the Telephone Number field. APNs are NOT of the form *98#) © 2006, Novatel Wireless Inc. All rights reserved. Pg. 6 of 10...
- Page 7 Click the PPP Options... button. Change the settings to match what is shown below. (Note: You might need to turn off IP header compression for some carrier networks.) Click OK and the view will be reverted back to the Network window © 2006, Novatel Wireless Inc. All rights reserved. Pg. 7 of 10...
- Page 8 8. Select the Modem tab. Then select HSDPA Support (U730 U740) as the Modem as shown below. 9. Click the Apply Now button and close System Preferences. © 2006, Novatel Wireless Inc. All rights reserved. Pg. 8 of 10...
-
Page 9: Open An Internet Connection
4. When a connection is made, the status bar message is Status: Connected to and the Connect Time, and IP Address are indicated. The Disconnect button appears on the window. © 2006, Novatel Wireless Inc. All rights reserved. Pg. 9 of 10... -
Page 10: Surf The Internet
To disconnect from the Internet click on the Phone icon in the menu bar and click Disconnect. (This can also be accomplished by clicking the Disconnect button in the Internet Connect application as shown above.) © 2006, Novatel Wireless Inc. All rights reserved. Pg. 10 of 10...
