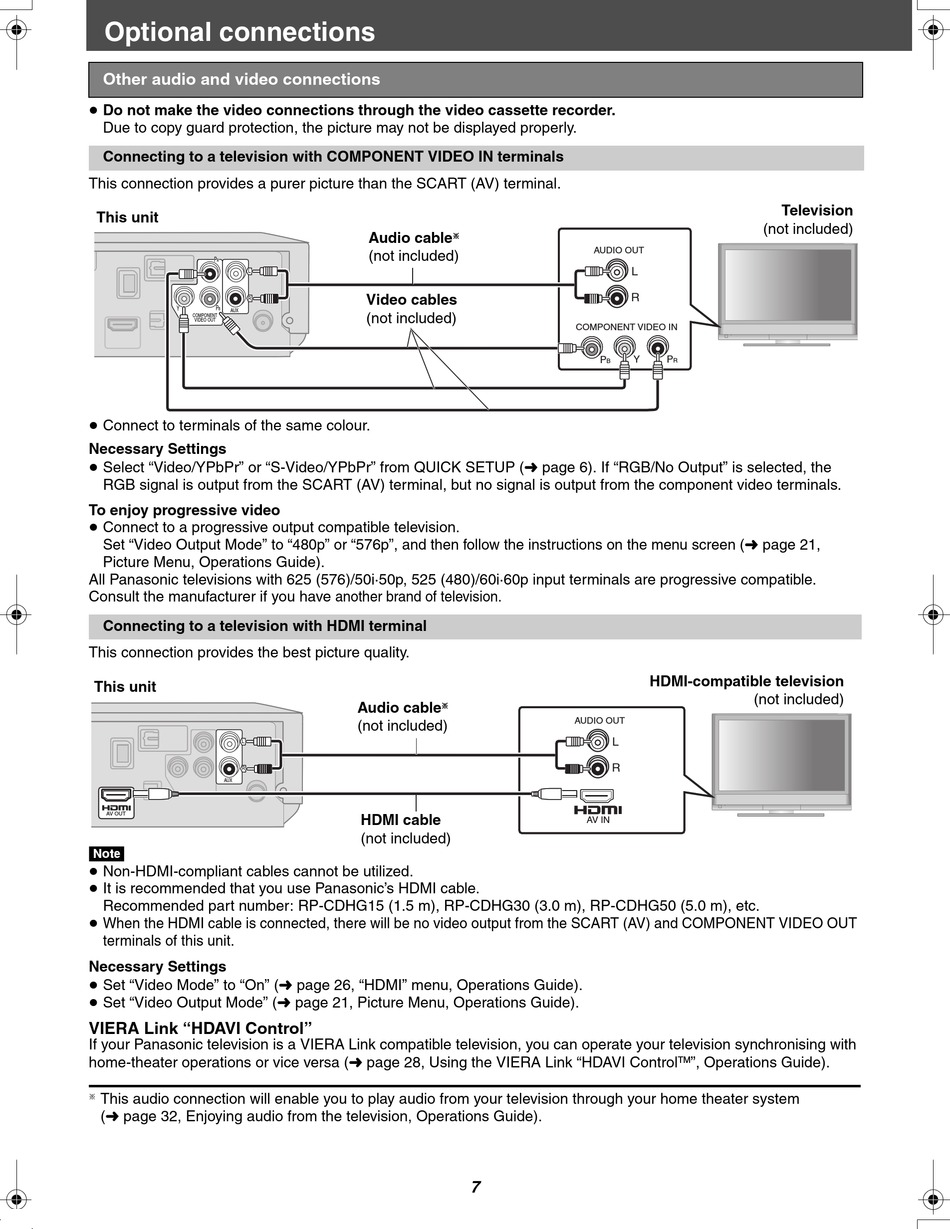

Optional connections

Other audio and video connections
≥ Do not make the video connections through the video cassette recorder.
Due to copy guard protection, the picture may not be displayed properly.
Connecting to a television with COMPONENT VIDEO IN terminals
This connection provides a purer picture than the SCART (AV) terminal.
This unit
P
R
L
R
P
Y
B
AUX
COMPONENT
VIDEO OUT
≥ Connect to terminals of the same colour.
Necessary Settings
≥ Select "Video/YPbPr" or "S-Video/YPbPr" from QUICK SETUP (➜ page 6). If "RGB/No Output" is selected, the
RGB signal is output from the SCART (AV) terminal, but no signal is output from the component video terminals.
To enjoy progressive video
≥ Connect to a progressive output compatible television.
Set "Video Output Mode" to "480p" or "576p", and then follow the instructions on the menu screen (➜ page 21,
Picture Menu, Operations Guide).
All Panasonic televisions with 625 (576)/50i·50p, 525 (480)/60i·60p input terminals are progressive compatible.
Consult the manufacturer if you have another brand of television.
Connecting to a television with HDMI terminal
This connection provides the best picture quality.
This unit
L
R
AUX
AV OUT
[Note]
≥ Non-HDMI-compliant cables cannot be utilized.
≥ It is recommended that you use Panasonic's HDMI cable.
Recommended part number: RP-CDHG15 (1.5 m), RP-CDHG30 (3.0 m), RP-CDHG50 (5.0 m), etc.
≥ When the HDMI cable is connected, there will be no video output from the SCART (AV) and COMPONENT VIDEO OUT
terminals of this unit.
Necessary Settings
≥ Set "Video Mode" to "On" (➜ page 26, "HDMI" menu, Operations Guide).
≥ Set "Video Output Mode" (➜ page 21, Picture Menu, Operations Guide).
VIERA Link "HDAVI Control"
If your Panasonic television is a VIERA Link compatible television, you can operate your television synchronising with
home-theater operations or vice versa (➜ page 28, Using the VIERA Link "HDAVI Control
§
This audio connection will enable you to play audio from your television through your home theater system
(➜ page 32, Enjoying audio from the television, Operations Guide).
§
Audio cable
(not included)
Video cables
(not included)
§
Audio cable
(not included)
HDMI cable
(not included)
7
AUDIO OUT
L
R
COMPONENT VIDEO IN
Y
P
P
R
B
HDMI-compatible television
AUDIO OUT
L
R
AV IN
TM
", Operations Guide).
Television
(not included)
(not included)
