http://www.myronanddavis.com

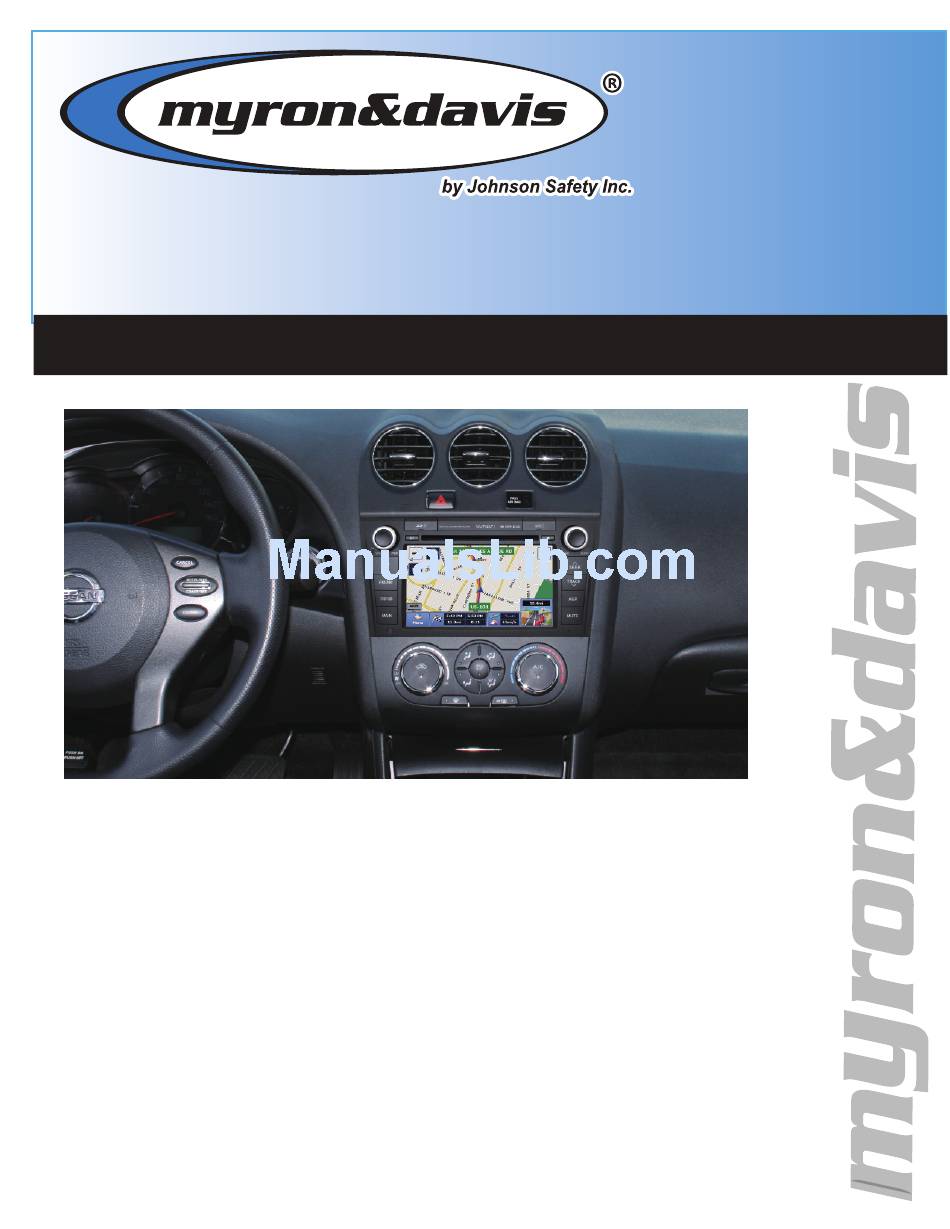

Installation Instructions
Nissan Altima
NV7NAT1
INSTALLATION INSTRUCTIONS AND USE
The Myron & Davis In-Dash Navigation System Includes
a built in DVD player that should not be viewed by the
driver while driving to avoid violation of State and Local
Laws. This product should be installed by a professional
to ensure proper installation and operation.
Myron & Davis is not responsible for any potential accidents,
property damage or bodily harm that might result from improper
installation or operation.
Advertisement
Related Manuals for Myron & Davis Nissan Altima NV7NAT1
Summary of Contents for Myron & Davis Nissan Altima NV7NAT1
-
Page 1: Installation Instructions
http://www.myronanddavis.com Installation Instructions Nissan Altima NV7NAT1 INSTALLATION INSTRUCTIONS AND USE The Myron & Davis In-Dash Navigation System Includes a built in DVD player that should not be viewed by the driver while driving to avoid violation of State and Local Laws. - Page 2 - Read the entire installation instructions prior to performing any work. - Before installation, check to see that all parts are not damaged or defective. 1 - Ensure all appropriate materials are available These are some of the common installation items you will need: - Digital Multi –...
- Page 3 Installation Guide 2- Caution -Battery Check the battery to ensure it’s fully charged NOTE: Some new vehicles batteries are not fully charged and may cause improper operation 3 - Warning - Remove the key from the ignition - Disconnect the negative battery terminal - Care must be used working with vehicles with airbags to prevent: - injury - damage to or malfunction of the airbag system...
- Page 4 4 – Removal of the Dash Trim Cont’d. Step 4 - Remove AC control Step 1. Remove the trim from below Step 2. Use a panel tool to remove the Step 3. Remove the A/C vents. knobs the radio A/C vents above the radio. NOTE: Do not unplug the air bag light.
- Page 5 5 – Remove Factory Radio Remove the OEM Radio and prepare the Myron and Davis Unit for installation by following the steps below. Note: Inspect all fasteners and brackets for damage. Replace as necessary before the installation process is started Step 1a.
- Page 6 5 – Remove Factory Radio Cont. Step 9. Use the supllied screws when Myron and Davis trim installed on the Step 8. Snap the supplied trim around the Installing the brakets on the Myron and Davis factory A/C controls. factory A/C controls. unit.
- Page 7 6 - GPS Antenna, Optional Satellite Radio, and iPod interface The GPS and Optional Satellite Radio Antenna should be mounted on the exterior of the vehicle and optional iPod interface connector in a user friendly location within the vehicle cabin. Follow the steps below for proper installation. Note: Avoid routing the GPS harness near other power sources to ensure peak operation...
- Page 8 7 - Connect and Install the Myron & Davis unit Follow the steps below to ensure proper installation and connection of the Myron and Davis unit. Note: To ensure that the video cannot be viewed while the vehicle is in motion, connect the (blue/white) Brake Wire to the Emergency Brake Switch (grounded when engaged) Note:...
- Page 9 Altima Built-in navigation antenna interface GPS ANT • Radio Antenna USB Cable Connected to Factory Harness Yellow : CDC BATT Red : CDC ACC Black : CDC GROUND Blue : Reverse Blue/White : Foot Brake...
- Page 10 • ••• White • ••• • ••• 1 out of 3 Yellow Connected to Factory Aux Input and Steering Wheel Control • Male radar • Female lens • • • ••• • Optional • Yellow Multi-function compound interface...
- Page 11 Multi-function compound interface Connected to tire pressure monitoring module(optional) TPMS tire pressure • monitoring system FL OUT • White FR OUT • RL OUT • White RR OUT • White C OUT • Black SW OUT • Yellow SPDIF AMP C •...
- Page 12 http://www.myronanddavis.com 1425 Cooley Court, San Bernardino, CA 92408 Toll Free: 886.335.6789 Fax: 909.799.7300...
