http://www.myronanddavis.com

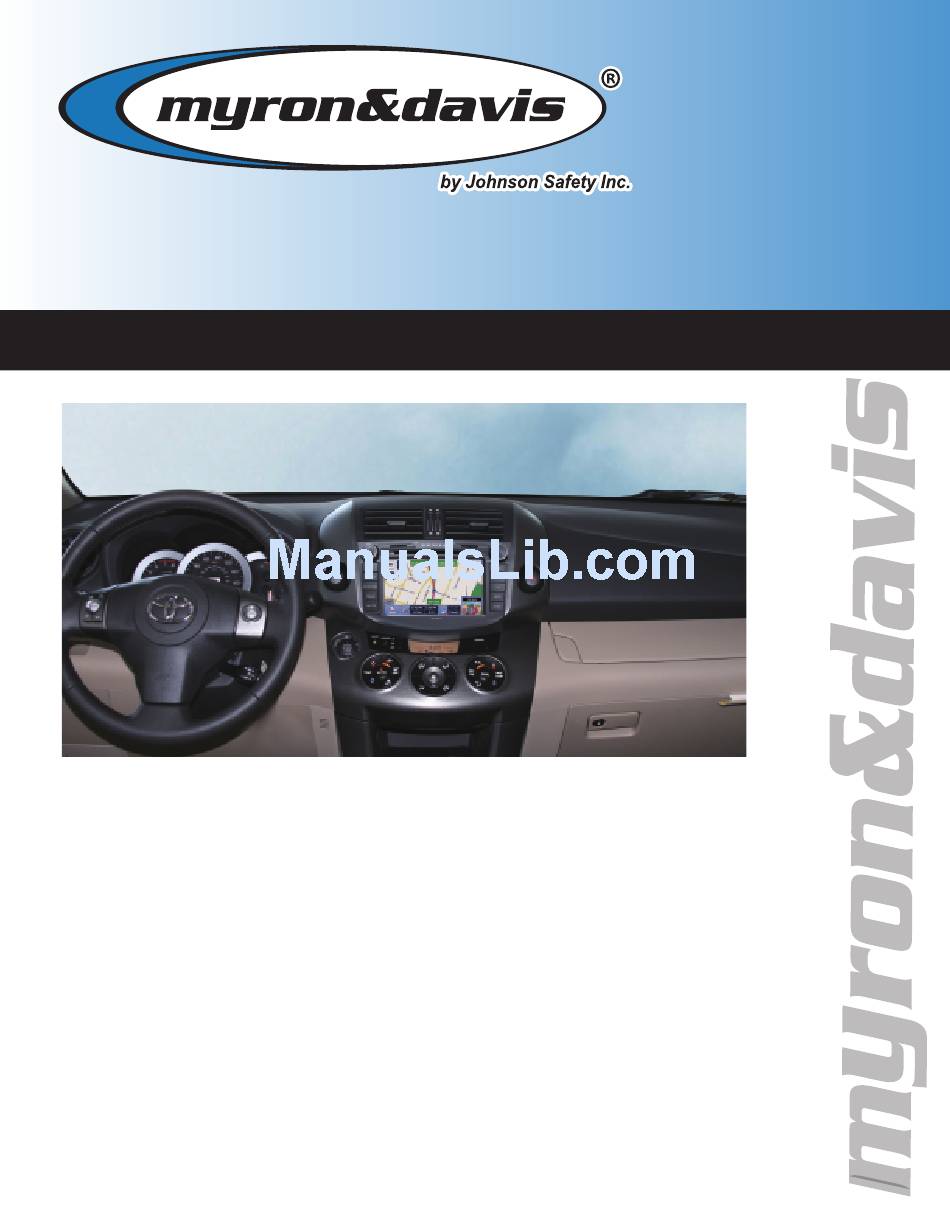

Installation Instructions
Toyota RAV4
NV7TRV1
INSTALLATION INSTRUCTIONS AND USE
The Myron & Davis In-Dash Navigation System Includes
a built in DVD player that should not be viewed by the
driver while driving to avoid violation of State and Local
Laws. This product should be installed by a professional
to ensure proper installation and operation.
Myron & Davis is not responsible for any potential accidents,
property damage or bodily harm that might result from improper
installation or operation.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Myron & Davis NV7TRV1
Summary of Contents for Myron & Davis NV7TRV1
-
Page 1: Installation Instructions
Installation Instructions Toyota RAV4 NV7TRV1 INSTALLATION INSTRUCTIONS AND USE The Myron & Davis In-Dash Navigation System Includes a built in DVD player that should not be viewed by the driver while driving to avoid violation of State and Local Laws. - Page 2 These are some of the common installation items you will need: - Digital Multi – Meter - Philips screwdriver set -Trim Removing tools - ¼” drive sockets -Torx or Allen-drive wrenches -A functional DVD or CD Myron and Davis Entertainment Systems Multi-Media Navigation System Installation Guide NV7TRV1 Rev A...
-
Page 3: Installation Guide
Installation Guide 2- Caution -Battery Check the battery to ensure it’s fully charged NOTE: Some new vehicles batteries are not fully charged and may cause improper operation 3 - Warning - Remove the key from the ignition - Disconnect the negative battery terminal - Care must be used working with vehicles with airbags to prevent: - injury - damage to or malfunction of the airbag system... - Page 4 4 – Removal of the Dash Trim Cont’d. Step 4 - Remove AC control Step 2. Remove the center console Step 1. Remove the trim around the Step 3. Center console trim cont. knobs trim. shifter...
- Page 5 5 – Remove Factory Radio Remove the OEM Radio and prepare the Myron and Davis Unit for installation by following the steps below. Note: Inspect all fasteners and brackets for damage. Replace as necessary before the installation process is started Step 1a.
- Page 6 6 - GPS Antenna, Optional Satellite Radio, and iPod interface The GPS and Optional Satellite Radio Antenna should be mounted on the exterior of the vehicle and optional iPod interface connector in a user friendly location within the vehicle cabin. Follow the steps below for proper installation. Note: Avoid routing the GPS harness near other power sources to ensure peak operation...
- Page 7 7 - Connect and Install the Myron & Davis unit Follow the steps below to ensure proper installation and connection of the Myron and Davis unit. Note: To ensure that the video cannot be viewed while the vehicle is in motion, connect the (blue/white) Brake Wire to the Emergency Brake Switch (grounded when engaged) Note:...
- Page 8 Prius Built-in navigation antenna interface GPS ANT • Multi-function compound interface Yellow : CDC BATT Blue : Reverse Red : CDC ACC Blue/White : Foot Brake Black : CDC GROUND Radio antenna • • • Connects to the factory radio harness...
- Page 9 • ••• White • ••• • ••• 1 out of 3 Yellow Connected to Factory Aux Input and Steering Wheel Control • Male radar • • Female lens • • ••• • Optional • Yellow Multi-function compound interface...
- Page 10 Multi-function compound interface Connected to tire pressure monitoring module(optional) TPMS tire pressure • monitoring system FL OUT • White FR OUT • RL OUT • White RR OUT • White C OUT • Black SW OUT • Yellow SPDIF AMP C •...
- Page 11 http://www.myronanddavis.com 1425 Cooley Court, San Bernardino, CA 92408 Fax: 909.799.7300 Toll Free: 886.335.6789...
