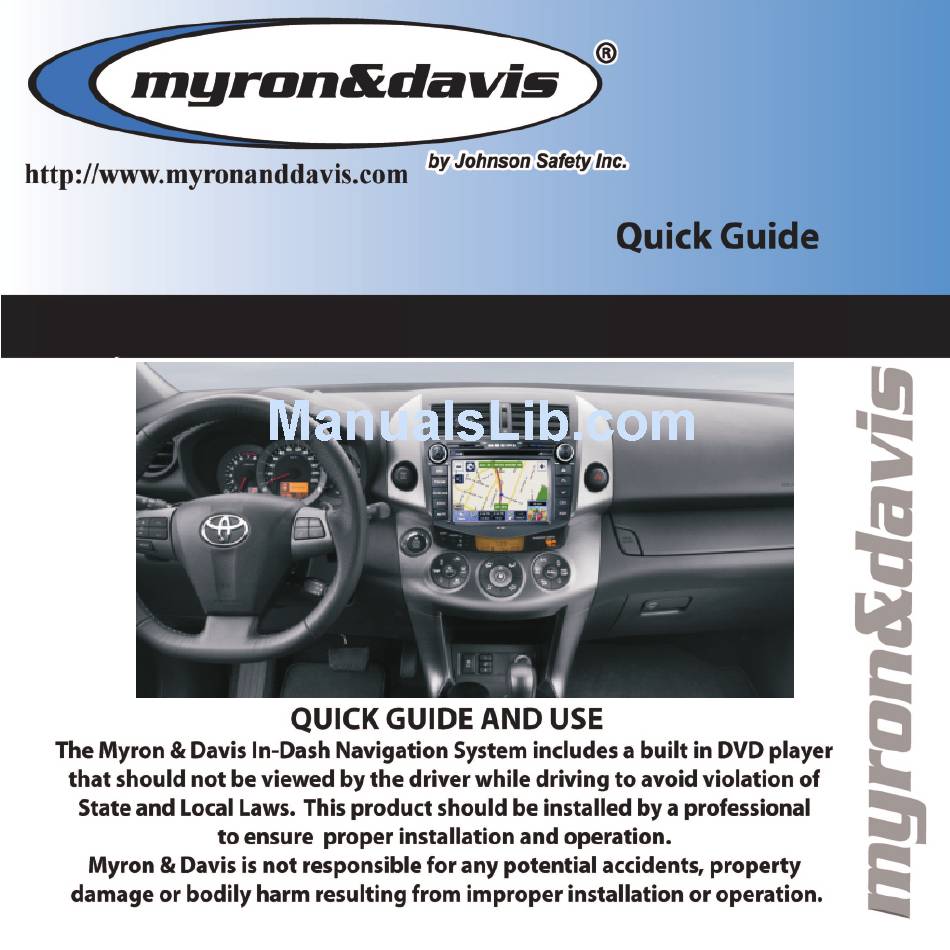

- Page 1 Toyota RAV4 NV7TRV1...
- Page 5 Introduction Thank you for purchasing the Myron and Davis RAV 4 In Dash Multi Media Entertainment System. Please read this manual carefully for safe and proper operation. Retain the manual for future reference. This system is a multi-functional Audio / Video entertainment system with a user friendly GUI, which is designed for ease of operation by the end user.
- Page 6 Built-in RADIO, DVD player, navigation, Bluetooth hands-free, LCD display and high power amplifier. Supports virtual CDC function, capable of storing songs from the CD in the Mp3 format. Storage space capable of 5 Cd’s or up to 60 songs. Bluetooth Hands-free: Supports Bluetooth hands-free communication and Bluetooth Music Streaming.
- Page 7 Touch Screen Input With Navigation While in Navigation Mode characters can be entered by touching the screen thus allowing the user to quickly enter a route Back Up Camera (Optional) Allows the user to have a visual from behind the vehicle Back Up Sensor (Optional) Allows the user to determine the distance to objects behind the vehicle...
-
Page 8: Connection Diagram
Connection Diagram To insure the system functions properly, connect the wires according to the wiring diagram In order to prevent a short circuit, cover the insulated casings of the audio/video connectors. Host Unit Built-in navigation antenna interface GPS-ANT Multi-function compound interface Radio antenna Yellow：CDC BATT Red：CDC ACC... - Page 9 L-IN White R-IN V-IN Yellow (Male radar) (Female lens) V-IN (Optional) Yellow Multi-function compound interface...
- Page 10 Multi-function compound interface Connected to t re pressure monitoring module(optional) TPMS t re pressure monitoring system FL-OUT White FR-OUT RL-OUT White RR-OUT C-OUT White Black SW-OUT Yellow SPDIF L-OUT White R-OUT V1-OUT Yellow V2-OUT Yellow KEY-CON...
-
Page 11: Volume Adjustment
Turn on/off Insert or pull out the car key to turn on or off the system. TUN E AUD IO When the system is in standby state , vertically ∧ press the left knob on the panel to turn on the ∧... - Page 12 Descriptions of Buttons PW R VO L TU NE AU DI O ∧ ∧ MAIN When on, press this button once to enter night mode, press again to enter black screen USB. mode; press and hold this button to enter stand by mode;...
- Page 13 Insert a paperclip into this hole and press the button inside the hole.The system will be reset to the factory settings.
