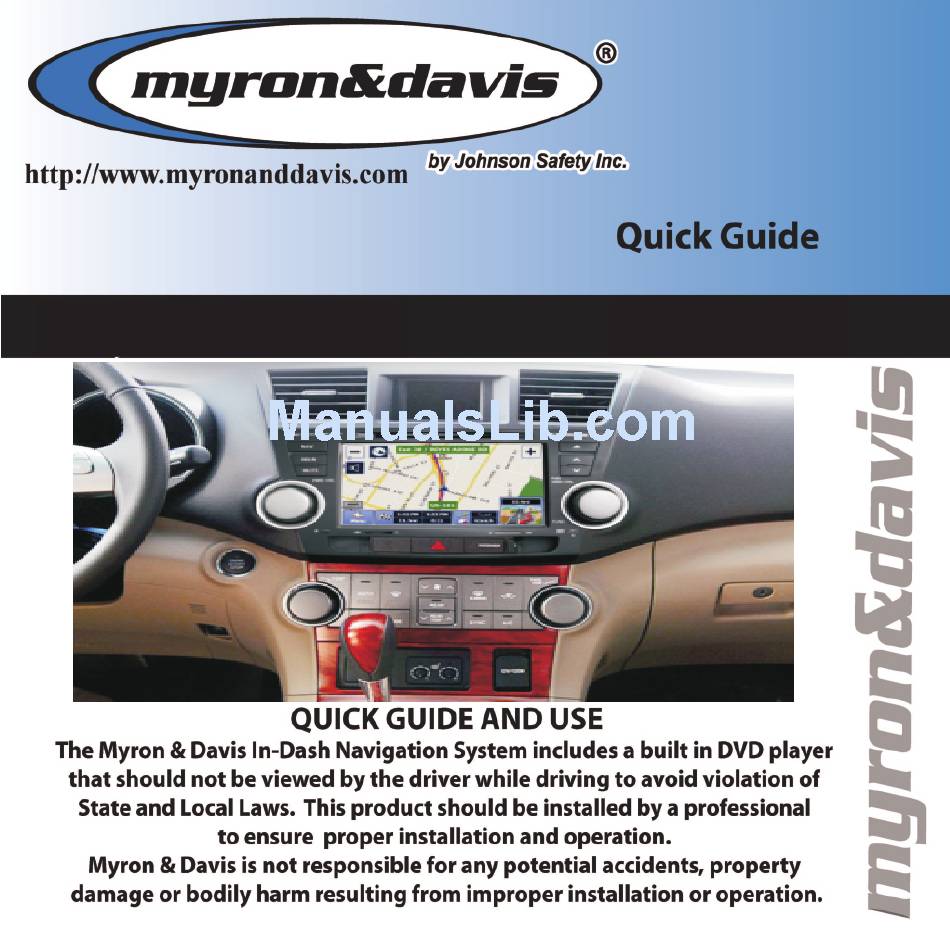

- Page 1 Toyota Highlander NV8THL1...
- Page 5 Introduction Thank you for purchasing the Myron and Davis Toyota Highlander In Dash Multi Media Entertainment System. Please read this manual carefully for safe and proper operation. Retain the manual for future reference. This system is a multi-functional Audio / Video entertainment system with a user friendly GUI, which is designed for ease of operation by the end user.
- Page 6 Built-in Radio, DVD player, navigation, Bluetooth hands-free, LCD display and high power amplifier. Supports virtual CDC function, capable of storing songs from the CD in the Mp3 format. Storage space capable of 5 Cd’s or up to 60 songs. Bluetooth Hands-free: Supports Bluetooth hands-free communication and Bluetooth Music Streaming.
- Page 7 Touch Screen Input With Navigation While in Navigation Mode characters can be entered by touching the screen thus allowing the user to quickly enter a route Back Up Camera (Optional) Allows the user to have a visual from behind the vehicle Back Up Sensor (Optional) Allows the user to determine the distance to objects behind the vehicle...
-
Page 8: Connection Diagram
Connection Diagram To insure the system functions properly, connect the wires according to the wiring diagram In order to prevent a short circuit, cover the insulated casings of the audio/video connectors. Host Unit Built-in navigation antenna interface GPS-ANT Multi-function compound interface Radio antenna Yellow：CDC BATT Red：CDC ACC... - Page 9 L-IN White R-IN V-IN Yellow (Male radar) (Female lens) V-IN (Optional) Yellow Multi-function compound interface...
- Page 10 Multi-function compound interface Connected to t re pressure monitoring module(optional) TPMS t re pressure monitoring system FL-OUT White FR-OUT RL-OUT White RR-OUT C-OUT White Black SW-OUT Yellow SPDIF L-OUT White R-OUT V1-OUT Yellow V2-OUT Yellow KEY-CON...
-
Page 11: Volume Adjustment
Turn on/off Insert or pull out the car key to turn on or off the system. N AV ∧ MA IN When the system is in standby state, press the ∧ M U T E left knob vertically on the panel to turn on the system. - Page 12 Descriptions of Buttons N AV ∧ MAIN ∧ M U T E When on, press the button once to enter night mode, and press it again to enter black screen mode; press and hold the button to enter standby state; when it is in standby state, press to turn on the system.
- Page 13 Connect s to external portable hard disc;...
- Page 15 176.64mm(W)*99.36mm(H)
