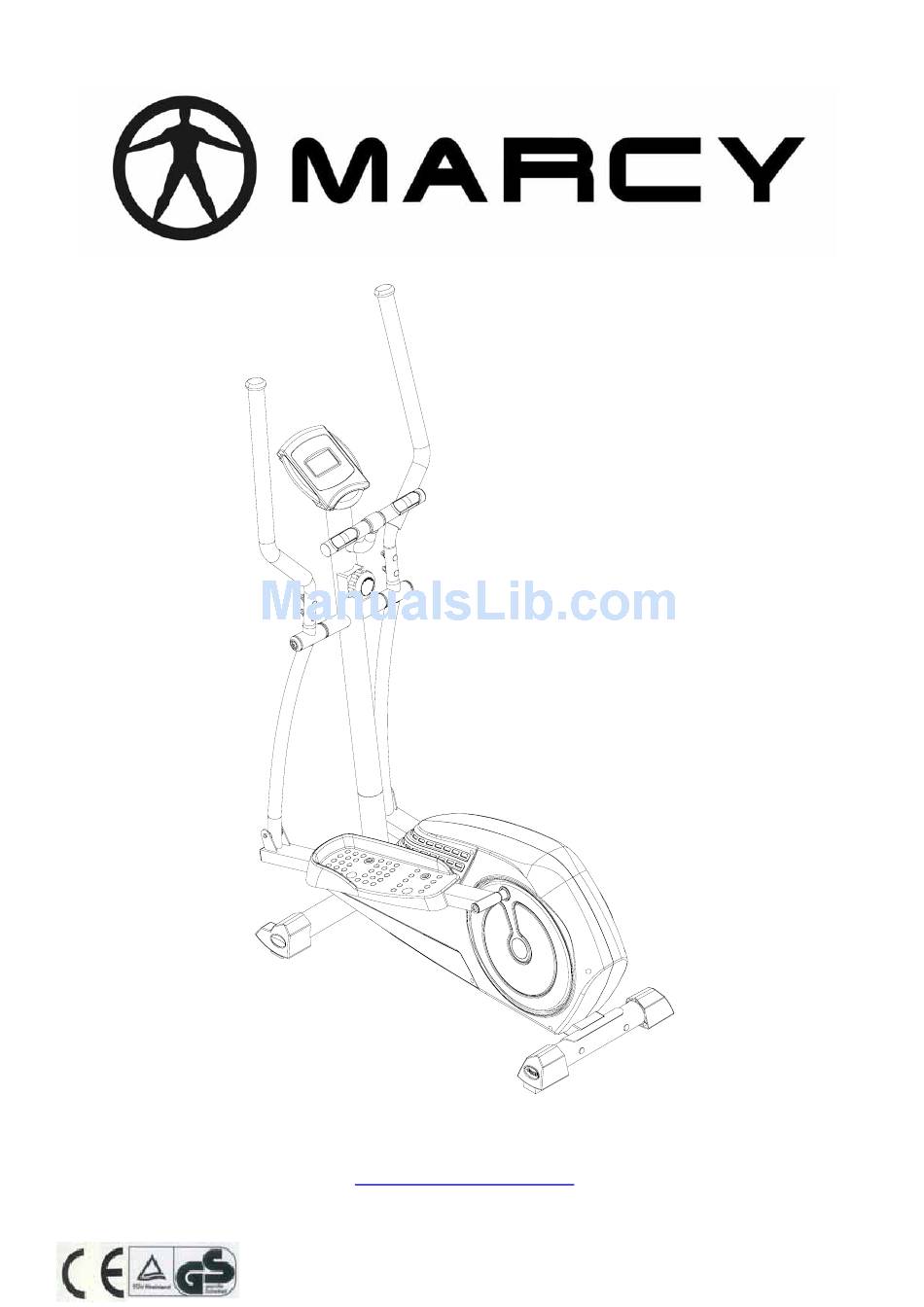

- Page 1 ER5000D Escalade International Limited Pleasant Road, Penllergaer, Swansea. SA4 9GE Tel: 00 44 1792 222 550 Fax 00 44 1792 895 781 www.escaladesports.co.uk info@escaladesports.co.uk...
-
Page 2: Table Of Contents
CONTENTS Important Information Hardware Parts List Pre Assembly Check List Exploded Assembly Diagram Assembly Instructions Transport/Levelling and Tension Control Computer Instructions Exercise Instructions Fault Finding Chart Exploded Diagram Parts List Additional Information Care Maintenance Limited Warranty Supplied by Escalade International Ltd Pleasant Road Penllergaer Swansea... -
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING THIS OWNER’S MANUAL CONTAINS ASSEMBLY, OPERATION, MAINTENANCE AND SAFETY INFORMATION. IN THE INTEREST OF SAFETY, PLEASE MAKE CERTAIN THAT YOU READ AND UNDERSTAND ALL THE INFORMATION BELOW. 1. This elliptical is intended for class H (H=Domestic) use only. It is not designed for commercial use. -
Page 4: Hardware Parts List
Revised picture needs to be added HARDWARE PARTS LIST to show 4 x #10 as previously discussed in inspection report. Should be #11 Part No. Description Q’ty Curved washer Carriage nut M8 Flat washer 30mm diameter Plastic washer Flat washer 19mm diameter Wavy washer Carriage bolt M8*73L Should be quantity... -
Page 5: Pre Assembly Check List
PRE-ASSEMBLY CHECK LIST PRE-ASSEMBLY CHECK LIST No.34L No.27 No.34L No.34R No.40 No.40 Should be #21 No.41 No.41 No.31 No.31 No.2 No.6 No.6 No.38 No.38 No.29 No.29 No.44 No.44 PART No. CRIPTION Q'TY PART No. DESCRIPTION Q’TY No.31 MAIN FRAME No.31 MAIN FRAME No.44 FRONT POST... -
Page 6: Exploded Assembly Diagram
EXPLODED ASSEMBLY DIAGRAM Please confirm if part numbers are correct on this diagram. -
Page 7: Assembly Instructions
ASSEMBLY INSTRUCTION STEP 1 Attach the front and rear stabilizer (38 & 29) to the main frame (31), tighten with four carriage bolts (39), curve washer (3) and acorn nut (4). STEP 2 Take the handlebar post (44) and connect the upper sensor wire (32) to the lower sensor wire (51). - Page 8 HOW TO CONNECT TENSION CONNECTOR Slide the Cable wire from the Upper Tension Connector in between the opening on the wire holder on the Lower Tension Connector. Pull the Upper Tension Connector backward and slide the wire through the slot on the bracket.
- Page 9 STEP 3 Insert the rotation axle (40) through the handlebar post (44). Assemble the left movable handlebar (6) onto the rotation axle and secure into position using one flat washer (8), plastic washer (9), flat washer (10) and allen head bolt with blue dot (11). Repeat this procedure for the right handlebar.
- Page 10 STEP 6 Assemble the left pedal (34L) onto the pedal arm (21L) and secure into position using 2 screws (35), flat washers (18) and nylon lock nuts (19). Assemble the left pedal arm assembly onto the left rotation disk and secure into position using one wavy washer (17), and allen head bolt with blue dot (11).
-
Page 11: Transport/Levelling And Tension Control
STEP 7 Connect the upper sensor wire (32) and pulse sensor wires (42) into the rear of the computer (41). Slide the computer onto the top of the handlebar stem ensuring the loose wires are inserted into the top of the stem and secure into position using two screws (43). PLEASE ENSURE THAT ALL NUTS AND BOLTS ARE SECURE BEFORE USE TRANSPORT/LEVELLING AND TENSION CONTROL TRANSPORT... - Page 12 LEVELLING TENSION CONTROL Decrease Increase...
-
Page 13: Computer Instructions
COMPUTER INSTRUCTIONS UT8365-7 BUTTON： To select functions of time, speed, distance, calories and pulse. MODE: SET: To adjust each function value of time, distance, calorie, pulse. The user may use reset key to reset each function individually: time, distance, RESET: calorie, and pulse. - Page 14 Getting Started The computer will automatically sense when you begin to exercise. The functions of Speed, RPM, Time, Distance and Calories will begin to count up as soon as you begin exercising and stop when you have finished. Entering Preset Data Press MODE until the function you wish to enter is flashing.
-
Page 15: Exercise Instructions
EXERCISE INSTRUCTION S Using your MAGNETIC ELLIPTICAL will provide you with several benefits, it will improve your physical fitness, tone muscle and in conjunction with a calorie controlled diet help you lose weight. 1. The Warm Up Phase This stage helps get the blood flowing around the body and the muscles working properly. It will also reduce the risk of cramp and muscle injury. -
Page 16: Fault Finding Chart
3. The Cool Down Phase This stage is to let your Cardio-vascular System and muscles wind down. This is a repeat of the warm up exercise e.g. reduce your tempo, continue for approximately 5 minutes. The stretching exercises should now be repeated, again remembering not to force or jerk your muscles into the stretch. - Page 17 If comment on page 9 is correct, #17 needs to be included If comment on page 10 is correct this needs to change to #10...
-
Page 18: Parts List
PARTS LIST Description Q’ty Description Q’ty END CAP 41 COMPUTER LEFT & RIGHT UPPER HANDLEBAR 42 PULSE SENSOR WIRE CURVED WASHER 43 SCREW FOR COMPUTER ACORN NUT 44 HANDLEBAR POST CARRIAGE BOLT 45 END CAP LOW HANDLEBAR 46 HAND SENSOR BIG PLASTIC BUSH 47 SMALL DECORATION COVER FLAT WASHER 30mm diameter... -
Page 19: Additional Information
ADDITIONAL INFORMATION Packaging Disposal Government guidelines ask that we reduce the amount of waste material disposed of in land fill sites. We therefore ask that you dispose of all packaging waste responsibly at public recycling centres. End of Life Disposal We at Escalade hope you enjoy many years of enjoyable use from your Elliptical. -
Page 20: Limited Warranty
LIMITED WARRANTY Escalade warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period of one year from the date of purchase. This warranty extends only to the original purchaser. Escalade’s obligation under this Warranty is limited to replacing damaged or faulty parts at Escalade’s option.
