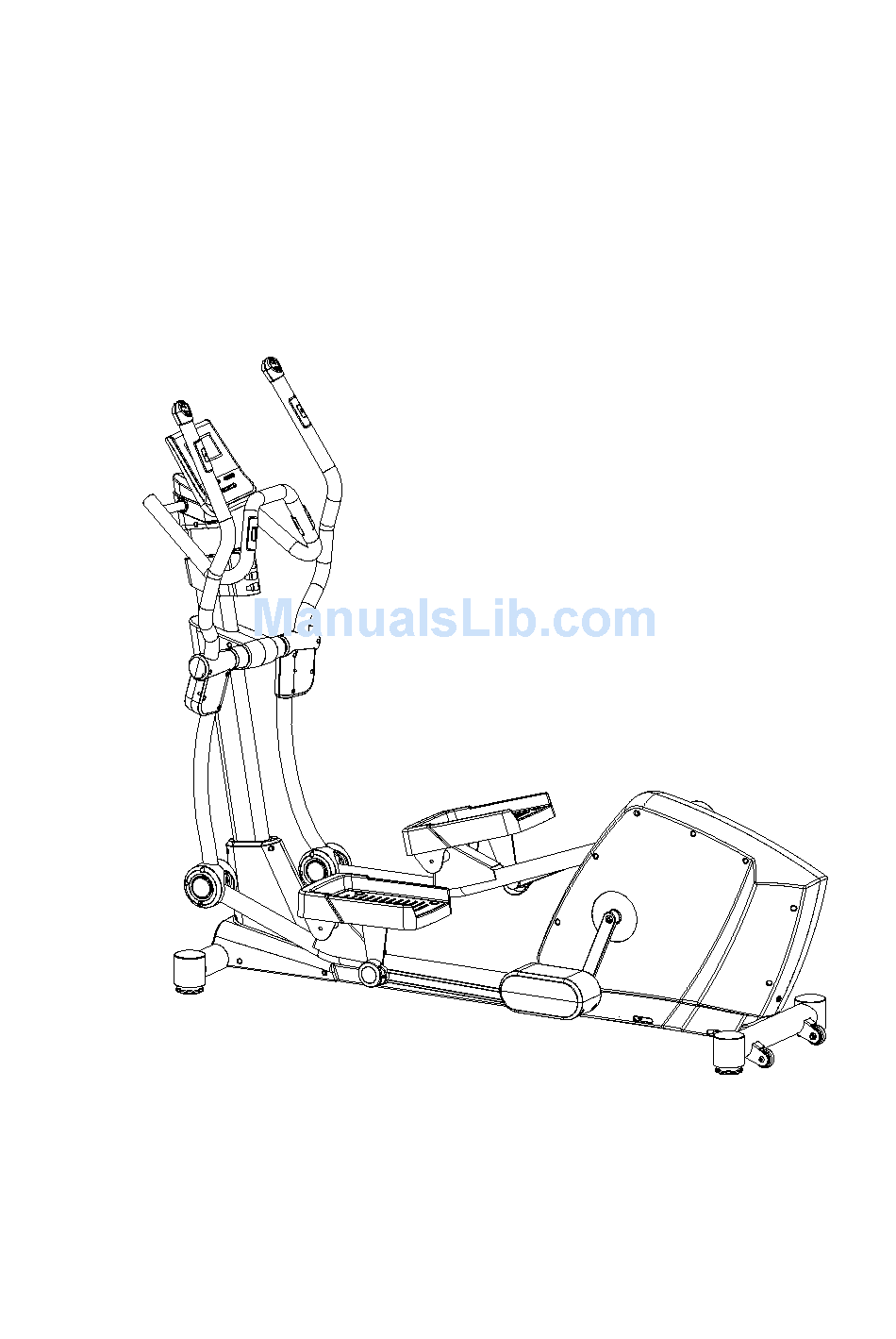

- Page 1 EB5100 Elliptical with SR6600 Computer Service Manual...
-
Page 2: Part List
part list DESCRIPTION BOM NUMBRE PE-SR66000010706 COMPUTER SR6600 PH-T-PB-326-1000 ADJUSTABLE COMPUTER BRACKET PD-SWM30510-1082 SCREW M5xP0.8x10L PH-T-PB-427-1000 FRONT HANDLE BAR PE-P-PB3428-1000 HAND PULSE PD-SGM20312-1041 SCREW M3xP0.5x12L PL-T-PB-445-1080 HAND PULSE FOR STABLE (UPPER) PL-T-PB-447-1080 HAND PULSE FOR STABLE (BELLOW) PE-B06-0700-1002 HAND PULSE WIRE WITH BODY FAT PD-SOM30730-1082 ROUND HEXANGULAR SCREW M7xP1.0x30L SPRING WASHER φ7x2t... - Page 3 DESCRIPTION BOM NUMBRE PE-C52-1400-1000 C-34 UPPER COMPUTER CABLE 1400L PE-C31-0980-1200 C-35 RIGHT CABLE FOR OUTTER PANEL BELLOW PE-C31-1000-1100 C-36 RIGHT CABLE FOR OUTTER PANEL PE-E-0D1400-1102 C-37 TWO-PIN CONNECTING CABLE UPPER MTEB5000FW017005 MAIN FRAM PLEB1000-04-10D0 END CAP PD-NHI21600-1041 HEXANGULAR NUT M16*P1.5 PLEB1000-08-1080 ADJUSTABLE REAR CAP PLEB5000-19-1080...
- Page 4 E-22L PLEB5000-04-1080 SIDE COVER LOWER ( LEFT) E-22R PLEB5000-06-1080 SIDE COVER LOWER ( RIGHT) E-23 PD-SBM20430-1041 SCREW M4x30L FLAT WASHER φ10xφ30x2t E-24 PD-WN221030-1041 E-25 BEARING E-26 BEARING E-27 MTEB5080FW047005 CONNECTING POLE E-28 BUSHING DESCRIPTION BOM NUMBRE PH-PJ9B2902-1000 PULLEY PH-T-PB-282-1000 WELDING AXLE SET PH-LJ8M1168-1000 BELT PD-SHM20812-1102...
- Page 5 Exploded Diagram...
- Page 7 Battery Generator flywheel The energy generated during exercise will be converted to electricity. There’s no adaptor or power supply needed to operate the bike. The tension variance is made by the currency supplied to EMS whose power is created through the generator. There’s a battery to come with the bike to supply so that the computer still can work even though there’s no exercise to generate the power.
