TG-3269
Gigabit PCI Network Adapter
Rev: 1.1.0
1910010907

Advertisement

Table of Contents
loading

Related Manuals for TP-Link TG-3269

Summary of Contents for TP-Link TG-3269

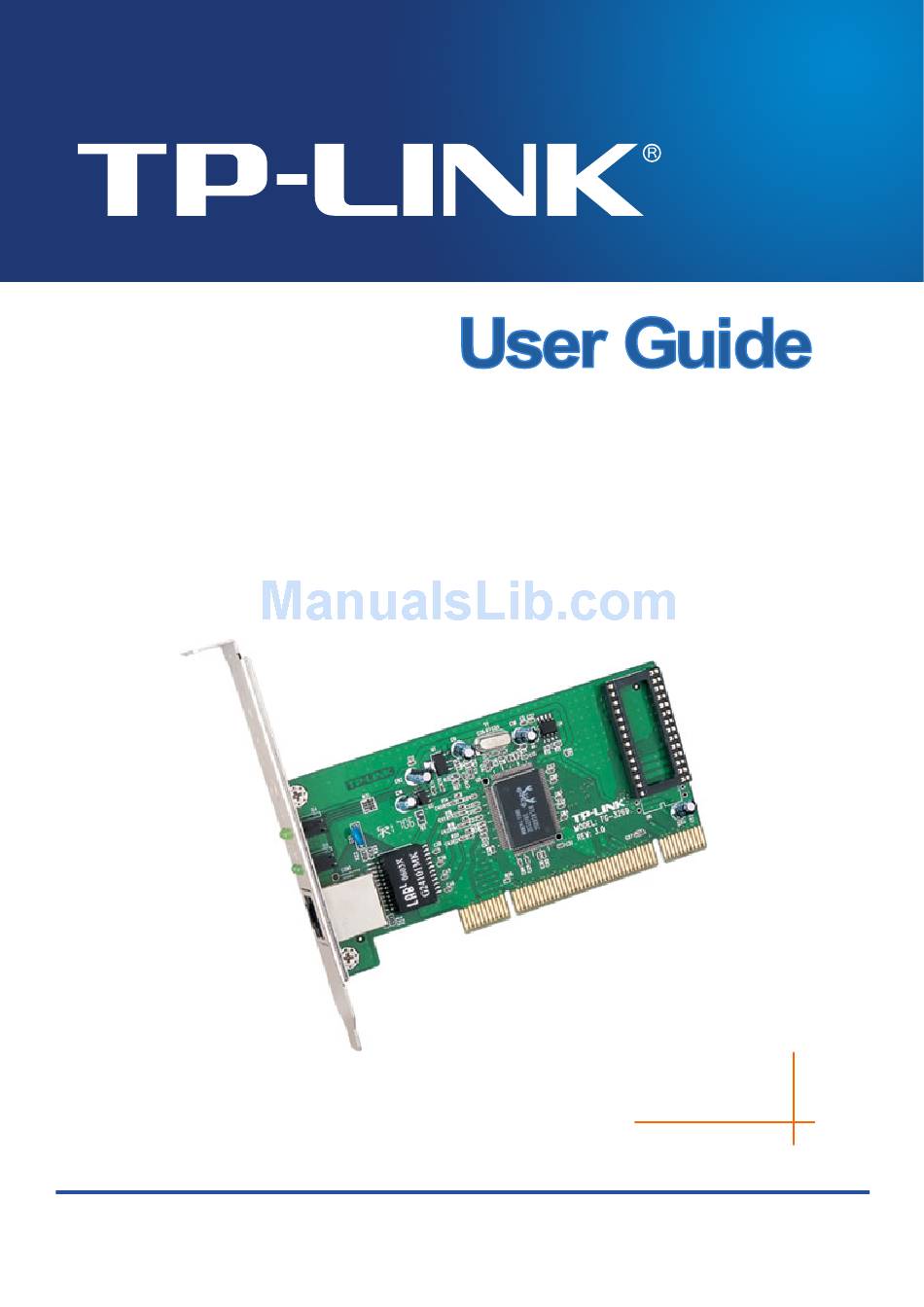

  • Page 1 TG-3269 Gigabit PCI Network Adapter Rev: 1.1.0 1910010907...
  • Page 2 Specifications are subject to change without notice. is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD.

  • Page 3: Fcc Statement

    FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 4: Safety Information

    Safety Information When product has power button, the power button is one of the way to shut off the product; when there is no power button, the only way to completely shut off power is to disconnect the product or the power adapter from the power source. Don’t disassemble the product, or make repairs yourself.

  • Page 5: Declaration Of Conformity

    TP-LINK TECHNOLOGIES CO., LTD DECLARATION OF CONFORMITY For the following equipment: Product Description: Gigabit PCI Network Adapter Model No.: TG-3269 Trademark: TP-LINK We declare under our own responsibility that the above products satisfy all the technical regulations applicable to the product within the scope of Council Directives:...

  • Page 6: Table Of Contents

    CONTENTS Package Contents ....................1 Chapter 1. Introduction ..................2 Overview of the product...................... 2 Features ..........................2 LED Status ......................... 3 Chapter 2. Installation Guide ................4 Hardware Installation......................4 Software Installation ......................5 2.2.1 For Windows XP......................5 2.2.2 For Windows 7 ......................

  • Page 7: Package Contents

    Make sure that the package contains the above items. If any of the listed items is damaged or missing, please contact your distributor. Conventions The “Adapter” mentioned in this user guide stands for TG-3269 Gigabit PCI Network Adapter without any explanations.

  • Page 8: Chapter 1. Introduction

    802.1P for packet prioritization. With 802.1Q support, server resources can be shared with multiple VLANs when used in conjunction with any 802.1Q-enabled Switch. With the 802.1p support, TG-3269 allows a range of Ethernet packets to be prioritized from a critical to a non-critical designation through a priority tag.

  • Page 9: Led Status

    TG-3269 Gigabit PCI Network Adapter PCI local bus single-chip Ethernet controller Supports ACPI, PCI power management Supports Auto-Negotiation function, Auto-detects network speed Contains two large independent receive and transmit FIFOs One STP/UTP connector Provides LEDs to indicate network Link/Activity/Speed/ Duplex Supports smart remote boot ROM Supports Drivers for Linux-2.4.x, Linux-2.6.x, Windows 8 (32bit/ 64bit), Windows 7 (32bit/...

  • Page 10: Chapter 2. Installation Guide

    TG-3269 Gigabit PCI Network Adapter Chapter 2. Installation Guide Hardware Installation To install the adapter, please follow these steps listed below: Turn off your computer and unplug the power cord and all cables. Remove your computer’s case cover. Locate an available PCI slot.

  • Page 11: Software Installation

    The section will guide you through the installation procedures for Windows XP, Windows 7, and Windows 8. Please carefully follow the steps. 2.2.1 For Windows XP Insert the TP-LINK Resource CD into the CD-ROM drive. Right-click the icon My Computer on the desktop, and then click Manage. Figure 2-2 The Computer Management screen will appear as shown in Figure 2-3.
  • Page 12 TG-3269 Gigabit PCI Network Adapter Figure 2-3 The Hardware Update Wizard window will show up as shown in Figure 2-4. Select Install from a list or specific location [Advanced]，and then click Next. Figure 2-4 Select Don’t search. I will choose the driver to install, and then click Next.
  • Page 13 TG-3269 Gigabit PCI Network Adapter Figure 2-5 Click Have Disk…. Figure 2-6...
  • Page 14 TG-3269 Gigabit PCI Network Adapter Click Browse…. Figure 2-7 Find the right product model （TG-3269）and operation system (Windows XP) in the resource CD directory and choose the .inf file, and then click Open. Figure 2-8...
  • Page 15 TG-3269 Gigabit PCI Network Adapter Back to the Install From Disk screen, click OK. Figure 2-9 10. Click Next. Figure 2-10...
  • Page 16 TG-3269 Gigabit PCI Network Adapter 11. The Hardware Installation screen will pop up as shown in Figure 2-11; select Continue Anyway. Figure 2-11 12. Wait a few seconds for the installation. Figure 2-12...

  • Page 17: For Windows 7

    13. Click Finish to complete the installation. Figure 2-13 2.2.2 For Windows 7 Insert the TP-LINK Resource CD into the CD-ROM drive. Right-click the icon Computer on the desktop, and then click Manage. Figure 2-14 The Computer Management screen will appear as shown in Figure 2-15. Click Device Manager, and then you will see the various options on the right.
  • Page 18 TG-3269 Gigabit PCI Network Adapter and then select Update Driver Software…. Figure 2-15 The next screen will appear as shown in Figure 2-16. Select Browse my computer for driver software. Figure 2-16 Select Let me pick from a list of device drivers on my computer, and then click Next.
  • Page 19 TG-3269 Gigabit PCI Network Adapter Figure 2-17 Click Have Disk… in the screen as shown in Figure 2-18. Figure 2-18 Click Browse… in the Install From Disk window as shown in Figure 2-19.
  • Page 20 TG-3269 Gigabit PCI Network Adapter Figure 2-19 Find the right product model (TG-3269) and operation system (Windows 7) in the resource CD directory and choose the .inf file, and then click Open. Figure 2-20...
  • Page 21 TG-3269 Gigabit PCI Network Adapter Back to the Install From Disk window as shown in Figure 2-21, click OK. Figure 2-21 10. Click Yes in the Update Driver Warning window to continue the installation. Figure 2-22 11. Click Next in the next screen as shown in Figure 2-23.
  • Page 22 TG-3269 Gigabit PCI Network Adapter 12. Select Install this driver software anyway in the Windows Security window as shown in Figure 2-24. Figure 2-24 13. Wait a few seconds for the installation. Figure 2-25...

  • Page 23: For Windows 8

    Figure 2-26 2.2.3 For Windows 8 Insert the TP-LINK Resource CD into the CD-ROM drive. Enter the Apps interface, and find Computer under Windows System column. Then right-click the Computer icon, you will see the function bar below the Apps interface. Click...
  • Page 24 TG-3269 Gigabit PCI Network Adapter Figure 2-27 The Computer Management screen will appear as shown in Figure 2-28. Click Device Manager, and then you will see the various options on the right. Click Network adapters, and then from the drop-down list please find the new network adapter Realtek PCI GBE Family Controller you have installed.
  • Page 25 TG-3269 Gigabit PCI Network Adapter Figure 2-28 The next screen will appear as shown in Figure 2-29. Select Browse my computer for driver software. Figure 2-29 Select Let me pick from a list of device drivers on my computer, and then click Next.
  • Page 26 TG-3269 Gigabit PCI Network Adapter Figure 2-30 Click Have Disk… in the screen as shown in Figure 2-31. Figure 2-31 Click Browse… in the Install From Disk window as shown in Figure 2-32.
  • Page 27 TG-3269 Gigabit PCI Network Adapter Figure 2-32 Find the right product model （TG-3269） and operation system (Window 8) in the resource CD directory and choose the .inf file, and then click Open. Figure 2-33...
  • Page 28 TG-3269 Gigabit PCI Network Adapter Back to the Install From Disk window as shown in Figure 2-34, click OK. Figure 2-34 10. Click Next in the next screen as shown in Figure 2-23. Figure 2-35...
  • Page 29 TG-3269 Gigabit PCI Network Adapter 11. Wait a few seconds for the installation. Figure 2-36 12. Click Close to complete the installation. Figure 2-37...

  • Page 30: Appendix A: Specifications

    TG-3269 Gigabit PCI Network Adapter Appendix A: Specifications Normal Interface 32-bit PCI interface Standards IEEE802.1P, IEEE802.1Q , IEEE802.3 10Base-T, IEEE802.3u 100Base-TX , IEEE 802.3ab 1000Base-T Software Drivers for Linux-2.4.x, Linux-2.6.x, Windows 8 (32bit / 64bit), Windows 7 (32bit / 64bit), Windows Vista (32bit / 64bit),...

  • Page 31: Appendix B: Troubleshooting

    TG-3269 Gigabit PCI Network Adapter Appendix B: Troubleshooting What should I do if PC cannot find the new hardware? Check to see if the network adapter is inserted in the PCI slot properly; otherwise, please reinsert the adapter. If the problem remains, please try to change another PCI slot.
