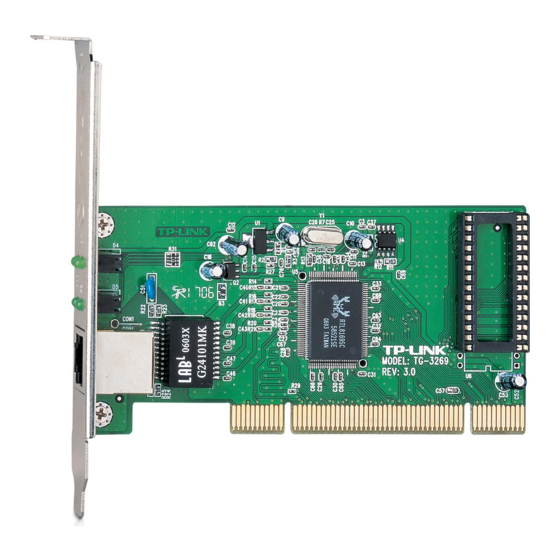

TP-Link TG-3269 User Manual

Ø Supports Full Duplex Flow Control (IEEE 802.3x)
Ø PCI local bus single-chip Ethernet controller
Ø
Supports ACPI, PCI power management
Ø Supports Auto-Negotiation function, Auto-detects network
speed
Ø Contains two large independent receive and transmit FIFOs
Ø One STP/UTP connector
Ø
Provides LEDs to indicate network Link/Activity/Speed/ Duplex
Ø Supports smart remote boot ROM
Ø Supports Drivers for NetWare 4.x,5.x,6.x,Windows 98,
Windows ME, Windows NT, Windows 2000, Windows XP ,
Linux
Chapter 2 Installation
Card Installation
To insert The Product into your computer, follow the steps list below.
1 Turn off the computer and remove its cover.
2 Insert TG-3269 into a PCI slot.
3 Fix the Product to the rear of the computer chassis and put the
computer cover in order.
4 Connect the adapter to the network with twisted-pair cables.
Driver Installation
The required software is in the diskette.
3
Appendix A: Troubleshooting
If you experience any problems with the adapter, first please confirm
that the appropriate driver is loaded properly,and that the cable is
connected to the adapter port soundly. Then check the LED.
The Product provides LEDs to indicate network status.
10 LED, 100 LED, 1000 LED
They all indicate Link/Active/Speed status.
When the 1000 LED is lit, it indicates adapter has been linked to
network with the right speed of 1000Mbps. The flash 1000 LED
indicates data transmission at the responding port.The 10 LED and
100 LED are similar to the 1000 LED.
FDX LED
It indicates the status that whether or not the adapter works at full
duplex mode. When the LED is lit the adapter works at full duplex
mode . Otherwise the adapter works at half duplex mode.
If you have other questions, please contact our local FAE.
Appendix B: Technical Specification
Ø Topology: Star
Ø Connector Supported: Rj45
Ø Standard: IEEE802.1P, IEEE802.1Q ,
IEEE802.3 10Base-T
IEEE802.3u 100Base-TX
IEEE 802.3ab 1000Base-T
Ø Transmission Rate: 10/20Mbps , 100/200Mbps, 2000Mbps
4
Ø Hardware: IBM PC compatibles(It must have PCI slot)
Ø IRQ Line: Assigned by system
Ø
I/O Address: Assigned by system
Ø Software: Supports Drivers for NetWare 4.x,5.x,6.x, Windows 98,
Windows ME, Windows NT, Windows 2000, Windows XP, Linux
Ø Temperature: 0 to 40 (Operating)
Ø Humidity: 10% to 90% (Non-condensing)
Ø
Power consumption: 4W(Max)
Appendix C: Contact Information
For help with the installation or operation of the TP-LINK TG-3269
Adapter, please contact us.
TP-LINK TECHNOLOGIES CO., LTD.
Add: Fl.3, Bldg.R1-B, High-Tech Industrial Park, Shennan Road,
Shenzhen, China
E-mail: support@tp-link.com
Website: http://www.tp-link.com
Made in China
5
User's Guide
TG-3269
Gigabit Ethernet Adapter
2
