- Page 1 User Guide Gigabit PCI Express Network Adapter TG-3468 ©2020 TP-Link 1910012774 REV4.0.0 Downloaded from ManualsNet.com search engine...
-
Page 2: Table Of Contents
Contents About This Guide Chapter 1 Get to Know About Your Adapter 1. 1. Product Overview ........... . . 3 1. -
Page 3: About This Guide
• Specifications can be found on the product page at https://www.tp-link.com. • A TP-Link Community is provided for you to discuss our products at https://community.tp-link.com. • Our Technical Support contact information can be found at the... -
Page 4: Chapter 1 Get To Know About Your Adapter
Chapter Get to Know About Your Adapter This chapter introduces what the adapter can do and shows its appearance. This chapter contains the following sections: • Product Overview • LED Status Downloaded from ManualsNet.com search engine... -
Page 5: Product Overview

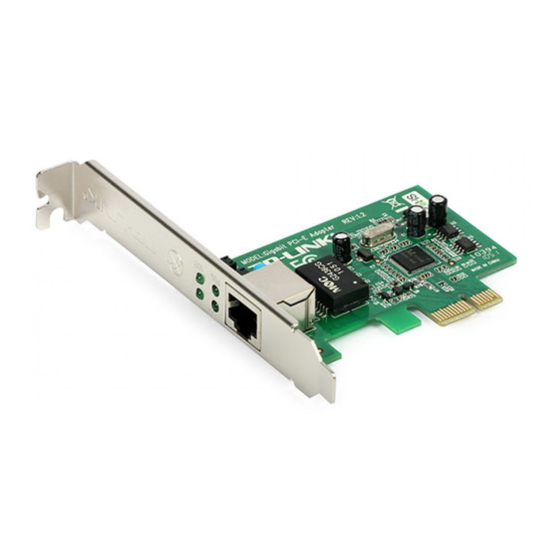

Chapter 1 Get to Know about Your Adapter Product Overview TG-3468 is a high performance adapter designed for the high-speed PCI Express Bus Architecture. Designed to support 10/100/1000Mbps network speed Auto- Negotiation, 802.3x flow control and Wake-on-LAN technology. TG-3468 is a highly integrated and cost-effective gigabit Ethernet adapter which is a good selection to upgrade your network. -
Page 6: Chapter 2 Connect To A Computer
Chapter Connect to a Computer This chapter introduces how to connect the adapter to your computer. Downloaded from ManualsNet.com search engine... - Page 7 Chapter 2 Connect to a Computer Before you begin using your adapter, insert the adapter into your computer by following these steps. 1. Turn off the computer, unplug the power cable and remove the case panel. 2. Locate an available PCI-E slot and carefully insert the adapter. Note: If the bracket is not suitable for your computer, detach it from the adapter’s board and replace it with the low-profile bracket provided.
- Page 8 Chapter 2 Connect to a Computer 3. Replace the case panel, plug in the power cable and turn on your computer. Then connect the Ethernet cable to the adapter. Downloaded from ManualsNet.com search engine...
-
Page 9: Chapter 3 Install Driver
Chapter Install Driver This chapter introduces how to install your adapter’s driver in different Windows systems, including Windows 7/8/8.1/10. Downloaded from ManualsNet.com search engine... - Page 10 Chapter 3 Install Driver This section will guide you through the installation for different Windows systems, including Windows 7/8/8.1/10. Tip: For Windows 10, you can enjoy using it directly. If not, install the driver manually. 1. Insert the CD into the CD-ROM drive. 2.
- Page 11 Chapter 3 Install Driver 4. Select Browse my computer for driver software. Downloaded from ManualsNet.com search engine...
- Page 12 Chapter 3 Install Driver 5. Select Let me pick from a list of device drivers on my computer. 6. For Windows 7: Choose Show All Devices, and then click Next. 7. Click Have Disk... Downloaded from ManualsNet.com search engine...
- Page 13 Chapter 3 Install Driver 8. Click Browse... 9. Go to Computer > CDXXX > TG-3468 and choose the .inf file based on your Windows system. Downloaded from ManualsNet.com search engine...
- Page 14 Chapter 3 Install Driver 10. Click OK. 11. Select Realtek PCIe GBE Family Controller, and click Next. 12. Click Close when the driver is installed successfully. And then restart your computer to finish the installation. Downloaded from ManualsNet.com search engine...
- Page 15 Chapter 3 Install Driver Downloaded from ManualsNet.com search engine...
-
Page 16: Appendix: Troubleshooting
T1 What should I do if the adapter is not detected? • You could find and download the driver at https://www.tp-link.com/download-center T2 How to find the hardware version of the adapter? • The hardware version is printed on the product label on the package or the adapter. - Page 17 Network adapters, and then find the corresponding TP-Link adapter, right click it and then go to Properties; If you can see “This device is working properly.” in the red box, you have already installed the driver successfully.
- Page 18 Downloaded from ManualsNet.com search engine...
- Page 19 FCC compliance information statement Product Name: Gigabit PCI Express Network Adapter Model Number: TG-3468 Responsible party: TP-Link USA Corporation, d/b/a TP-Link North America, Inc Address: 145 South State College Blvd. Suite 400, Brea, CA 92821 Website: https://www.tp-link.com/us/ Tel: +1 626 333 0234 Fax: +1 909 527 6803 E-mail: sales.usa@tp-link.com...
- Page 20 We, TP-Link USA Corporation, has determined that the equipment shown as above has been shown to comply with the applicable technical standards, FCC part 15. There is no unauthorized change is made in the equipment and the equipment is properly maintained and operated.
- Page 21 EU declaration of conformity TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/30/EU, 2014/35/ EU, 2011/65/EU and (EU)2015/863.
- Page 22 • 插槽與開口供通風使用，以確保本產品的操作可靠並防止過熱，請勿堵塞或覆 蓋開口。 • 請勿將本產品置放於靠近熱源的地方。除非有正常的通風，否則不可放在密閉 位置中。 • 不要私自拆開機殼或自行維修，如產品有故障請與原廠或代理商聯繫。 限用物質含有情況標示聲明書 限用物質及其化學符號 產品元件名稱 鉛 鎘 汞 六價鉻 多溴聯苯 多溴二苯醚 CrVI PBDE ○ ○ ○ ○ ○ ○ 備考 1. " 超出 0.1wt %" 及 " 超出 0.01wt %" 系指限用物質之百分比含量超出 百分比含量基準值。 備考 2. "○" 系指該項限用物質之百分比含量未超出百分比含量基準值。 Продукт...
- Page 23 Explanation of the symbols on the product label Symbol Explanation RECYCLING This product bears the selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to European directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment.
