TG-3468
Gigabit PCI Express Network Adapter
Download from Www.Somanuals.com. All Manuals Search And Download.
Rev: 1.0.1
1910010555

Advertisement

loading
Need help?

Need help?

Do you have a question about the TG-3468 and is the answer not in the manual?

Questions and answers

Related Manuals for TP-Link TG-3468

Summary of Contents for TP-Link TG-3468

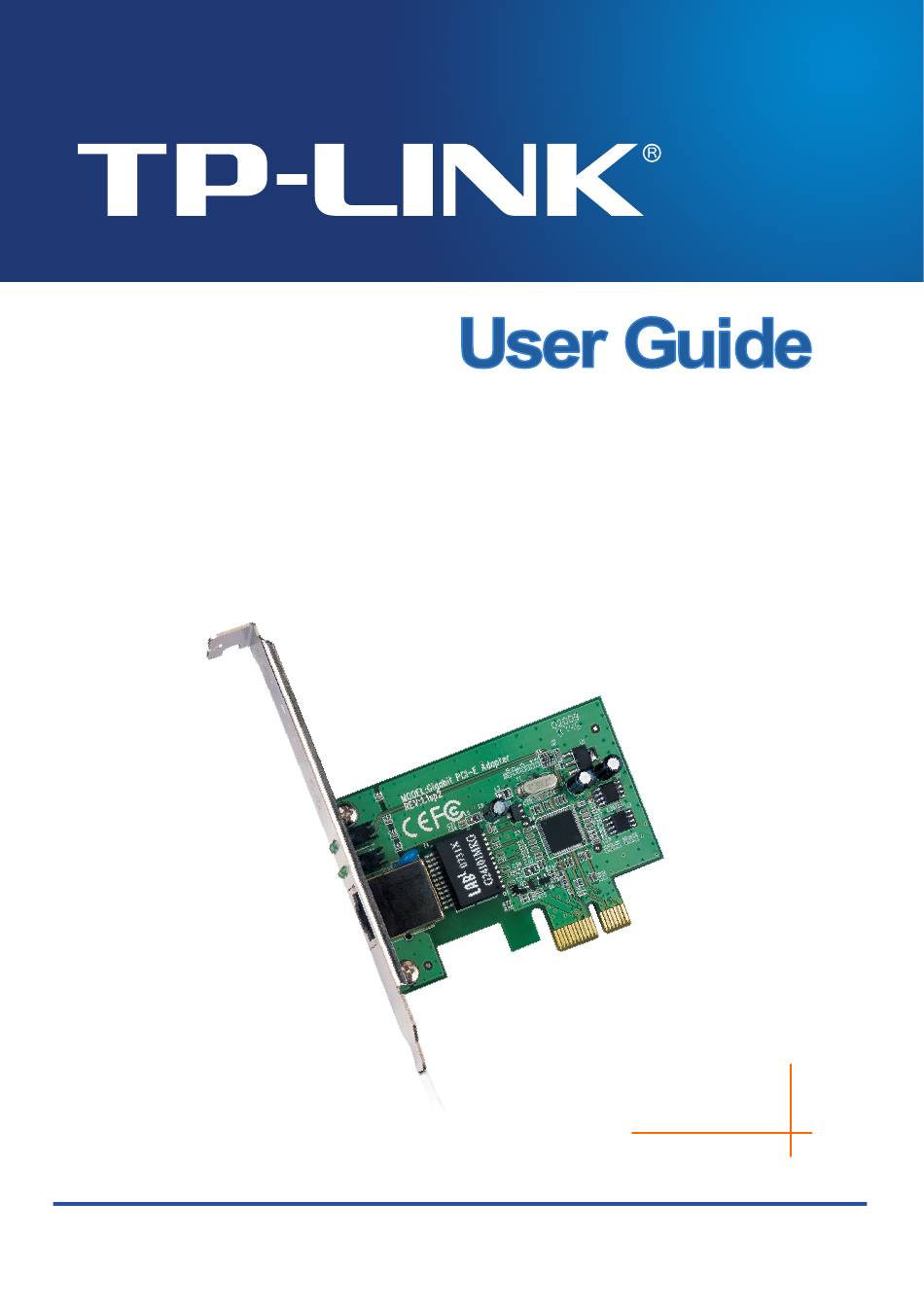

  • Page 1 TG-3468 Gigabit PCI Express Network Adapter Rev: 1.0.1 1910010555 Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 2 Specifications are subject to change without notice. is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD.
  • Page 3 FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 4 TP-LINK TECHNOLOGIES CO., LTD DECLARATION OF CONFORMITY For the following equipment: Product Description: Gigabit PCI Express Network Adapter Model No.: TG-3468 Trademark: TP-LINK We declare under our own responsibility that the above products satisfy all the technical regulations applicable to the product within the scope of Council Directives:...
  • Page 5 CONTENTS Package Contents ....................1 Chapter 1. Introduction ..................2 Overview of the product...................... 2 Features ..........................2 LED Status ......................... 2 Chapter 2. Installation Guide ................3 Hardware Installation......................3 Software Installation ......................4 2.2.1 For Windows XP......................4 2.2.2 For Windows 7 ......................
  • Page 6 Make sure that the package contains the above items. If any of the listed items is damaged or missing, please contact your distributor. Conventions The “Adapter” mentioned in this user guide stands for TG-3468 Gigabit PCI Express Network Adapter without any explanations. Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 7 Gigabit Ethernet Adapter which is fully compliant with IEEE 802.3, IEEE 802.3u and IEEE 802.3ab specifications. TG-3468 keeps low cost and eliminates usage barriers. It is the easiest way to upgrade a network from 10/100Mbps to 1000 Mbps. It supports 10/100Mbps network speed automatically both in Half-Duplex and Full-Duplex transfer modes, and 1000Mbps in Full-Duplex transfer mode，using...
  • Page 8 TG-3468 Gigabit PCI Express Network Adapter Chapter 2. Installation Guide Hardware Installation To install the adapter, please follow these steps listed below: Turn off your computer and unplug the power cord and all cables. Remove your computer’s case cover. Locate an available PCI Express slot.
  • Page 9 The section will guide you through the installation procedures for Windows XP, Windows 7, and Windows Vista. Please carefully follow the steps. 2.2.1 For Windows XP Insert the TP-LINK Resource CD into the CD-ROM drive. Right-click the icon My Computer on the desktop, and then click Manage. Figure 2-3...
  • Page 10 TG-3468 Gigabit PCI Express Network Adapter The Computer Management screen will appear as shown in Figure 2-4. Click Device Manager, and then you will see the various options on the right. Click Network adapters, and then from the drop-down list please find the new network adapter Realtek RTL 8168B/8111B Family PCI-E Gigabit Ethernet NIC (NDIS 6.20) you have installed.
  • Page 11 TG-3468 Gigabit PCI Express Network Adapter Figure 2-5 Select Don’t search. I will choose the driver to install, and then click Next. Figure 2-6 Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 12 TG-3468 Gigabit PCI Express Network Adapter Click Have Disk…. Figure 2-7 Click Browse…. Figure 2-8 Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 13 TG-3468 Gigabit PCI Express Network Adapter Find the right product model （TG-3468） and operation system (Windows XP) in the resource CD directory and choose the .inf file, and then click Open. Figure 2-9 Back to the Install From Disk screen, click OK.
  • Page 14 TG-3468 Gigabit PCI Express Network Adapter 10. Click Next. Figure 2-11 11. The Hardware Installation screen will pop up as shown in Figure 2-12; select Continue Anyway. Figure 2-12 Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 15 TG-3468 Gigabit PCI Express Network Adapter 12. Wait a few seconds for the installation. Figure 2-13 13. Click Finish to complete the installation. Figure 2-14 Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 16 TG-3468 Gigabit PCI Express Network Adapter 2.2.2 For Windows 7 Insert the TP-LINK Resource CD into the CD-ROM drive. Right-click the icon Computer on the desktop, and then click Manage. Figure 2-15 The Computer Management screen will appear as shown in Figure 2-16. Click Device Manager, and then you will see the various options on the right.
  • Page 17 TG-3468 Gigabit PCI Express Network Adapter The next screen will appear as shown in Figure 2-17. Select Browse my computer for driver software. Figure 2-17 Select Let me pick from a list of device drivers on my computer, and then click Next.
  • Page 18 Click Browse… in the Install From Disk window as shown in Figure 2-20. Figure 2-20 Find the right product model (TG-3468) and operation system (Windows 7) in the resource CD directory and choose the .inf file, and then click Open.
  • Page 19 TG-3468 Gigabit PCI Express Network Adapter Figure 2-21 Back to the Install From Disk window as shown in Figure 2-22, click OK. Figure 2-22 10. Click Yes in the Update Driver Warning window to continue the installation. Figure 2-23 Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 20 TG-3468 Gigabit PCI Express Network Adapter 11. Click Next in the next screen as shown in Figure 2-24. Figure 2-24 12. Select Install this driver software anyway in the Windows Security window as shown in Figure 2-25. Figure 2-25 Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 21 TG-3468 Gigabit PCI Express Network Adapter 13. Wait a few seconds for the installation. Figure 2-26 14. Click Close to complete the installation. Figure 2-27 Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 22 Figure 2-28 2.2.3 For Windows Vista Insert the TP-LINK Resource CD into the CD-ROM drive. Right-click the icon Computer on the desktop, and then click Manage. Figure 2-29 The Computer Management screen will appear as shown in Figure 2-30. Click Device Manager, and then you will see the various options on the right.
  • Page 23 TG-3468 Gigabit PCI Express Network Adapter Figure 2-30 The next screen will appear as shown in Figure 2-31. Select Browse my computer for driver software. Figure 2-31 Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 24 TG-3468 Gigabit PCI Express Network Adapter Select Let me pick from a list of device drivers on my computer, and then click Next. Figure 2-32 Click Have Disk… in the screen as shown in Figure 2-33. Figure 2-33 Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 25 Click Browse… in the Install From Disk window as shown in Figure 2-34. Figure 2-34 Find the right product model (TG-3468) and operation system (Window Vista) in the resource CD directory and choose the .inf file, and then click Open.
  • Page 26 TG-3468 Gigabit PCI Express Network Adapter Back to the Install From Disk window as shown in Figure 2-36, click OK. Figure 2-36 10. Click Yes in the Update Driver Warning window to continue the installation. Figure 2-37 Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 27 TG-3468 Gigabit PCI Express Network Adapter 11. Click Next in the next screen as shown in Figure 2-24. Figure 2-38 12. Select Install this driver software anyway in the Windows Security window as shown in Figure 2-39. Figure 2-39 Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 28 TG-3468 Gigabit PCI Express Network Adapter 13. Wait a few seconds for the installation. Figure 2-40 Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 29 TG-3468 Gigabit PCI Express Network Adapter 14. Click Close to complete the installation. Figure 2-41 15. Click Yes in the System Settings Change window (as shown in Figure 2-42) to restart the computer, so that the installation will take effect.
  • Page 30 TG-3468 Gigabit PCI Express Network Adapter Appendix A: Specifications Normal Interface Support PCI Express 1.0a Buffer Size Transmit/Receive On Chip Buffer(48K)support Standards IEEE802.3ab 1000Base-T, IEEE802.3x, IEEE802.3q, IEEE802.3p Transmission Rate 10/100/1000Mbps Connector supported one 10/100/1000M Auto-Negotiation RJ45 port Support drivers for Linux-2.4.x, Linux-2.6.x, Windows 7 (32bit /...
  • Page 31 TG-3468 Gigabit PCI Express Network Adapter Appendix B: Troubleshooting What should I do if PC cannot find the new hardware? Check to see if the network adapter is inserted in the PCI Express slot properly; otherwise, please reinsert the adapter.
