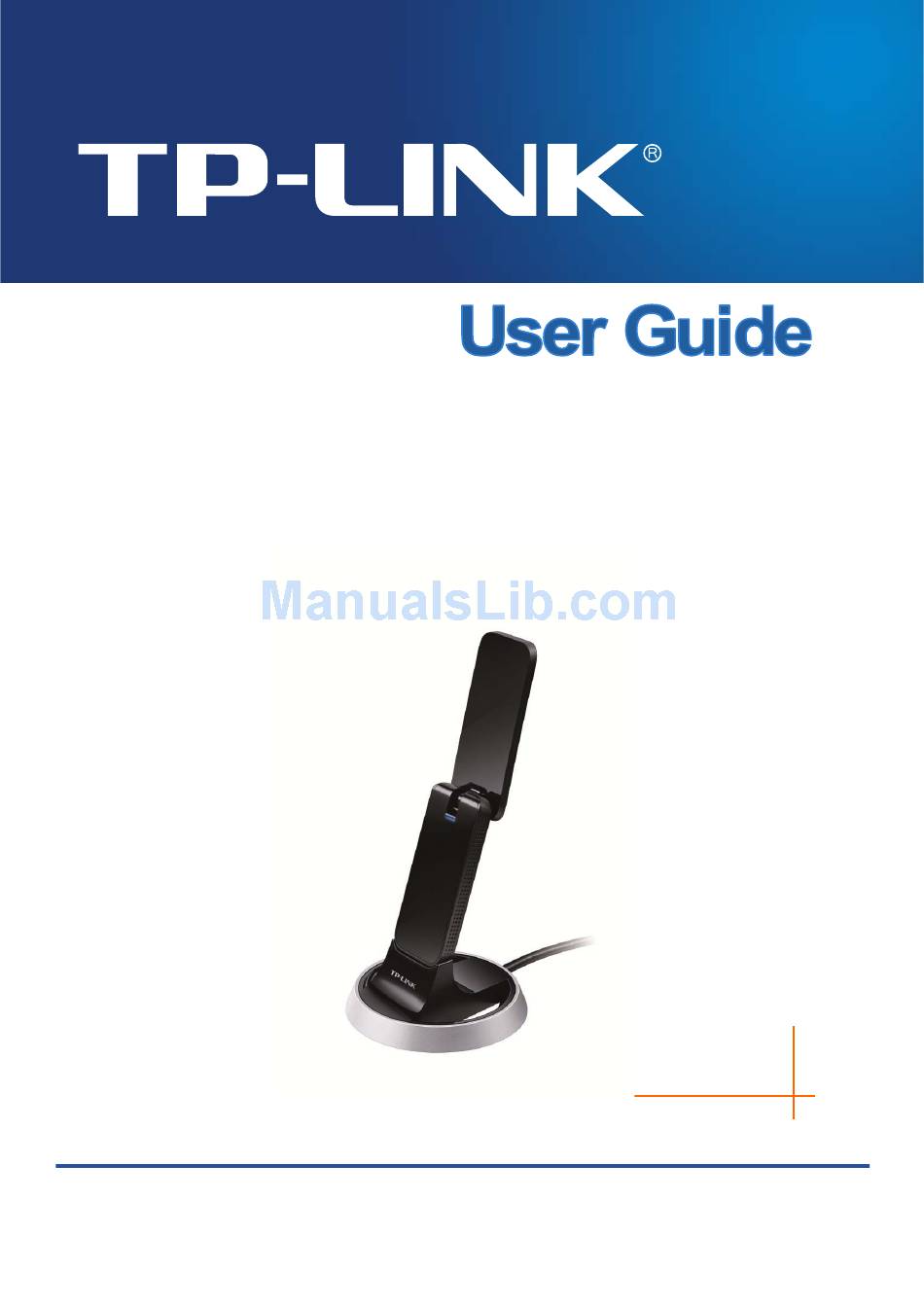

  • Page 1 Archer T9UH AC1900 High Gain Wireless Dual Band USB Adapter REV1.0.0 1910011567...
  • Page 2 Specifications are subject to change without notice. is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD.

  • Page 3: Fcc Statement

    FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 4: Canadian Compliance Statement

    RF Exposure Information This device meets the EU requirements (1999/5/EC Article 3.1a) on the limitation of exposure of the general public to electromagnetic fields by way of health protection. The device complies with RF specifications when the device used at 5 cm from your body. Restricted to indoor use.

  • Page 5: Radiation Exposure Statement

    5250-5350 MHz and 5650-5850 MHz and that these radars could cause interference and/or damage to LE-LAN devices. DFS (Dynamic Frequency Selection) products that operate in the bands 5250- 5350 MHz, 5470-5600MHz, and 5650-5725MHz. Avertissement: 1） Le dispositif fonctionnant dans la bande 5150-5250 MHz est réservé uniquement pour une utilisation à...

  • Page 6: Bsmi Notice

    第十二條 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻 加大功率或變更原設計之特性或功能 率、 。 低功率射頻電機之使用不得影響飛航安全及干擾合法通行 第十四條 ；經發現有干擾現象 時，應立即停用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信規定作業之無線電 信。低功率射頻電機需忍受合法通信或工業、科學以及醫療用電波輻射性電機設備之干擾。 減少電磁波影響，請妥適使用。 於 5.25GHz 至 5.35GHz 區域內操作之無線設備的警告聲明 工作頻率 5.250~5.350GHz 該頻段限於室內使用。 BSMI Notice 安全諮詢及注意事項  請使用原裝電源供應器或只能按照本產品注明的電源類型使用本產品。  清潔本產品之前請先拔掉電源線。請勿使用液體、噴霧清潔劑或濕布進行清潔。  注意防潮，請勿將水或其他液體潑灑到本產品上。  插槽與開口供通風使用，以確保本產品的操作可靠並防止過熱，請勿堵塞或覆蓋開口。  請勿將本產品置放於靠近熱源的地方。除非有正常的通風，否則不可放在密閉位置中。  請不要私自打開機殼，不要嘗試自行維修本產品，請由授權的專業人士進行此項工作。 Продукт сертифіковано згідно с правилами системи УкрСЕПРО на відповідність вимогам нормативних...
  • Page 7 For EU/EFTA, this product can be used in the following countries: Explanation of the symbols on the product label Symbol Explanation DC voltage RECYCLING This product bears the selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to European directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment.

  • Page 8: Declaration Of Conformity

    TP-LINK TECHNOLOGIES CO., LTD DECLARATION OF CONFORMITY For the following equipment: Product Description: AC1900 High Gain Wireless Dual Band USB Adapter Model No.: Archer T9UH Trademark: TP-LINK We declare under our own responsibility that the above products satisfy all the technical...

  • Page 9: Table Of Contents

    Mac OS X ....................6     4.1  Install Driver and Utility ................... 6  4.2  Join a Wireless Network..................10  4.2.1  TP-LINK Utility..................11  4.2.2  WPS (Wi-Fi Protected Setup)..............12  4.3  Management ......................15  4.3.1  Link Status ....................16  4.3.2 ...

  • Page 10: Chapter 1 Product Overview

    Chapter 1 Product Overview 1.1 Introduction The TP-LINK Archer T9UH AC1900 High Gain Wireless Dual Band USB Adapter connects your notebook or desktop computer over Wi-Fi to an 11ac or other network for applications such as lag-free video streaming, online gaming, and secure Internet surfing.

  • Page 11: Chapter 2 Connect To A Computer

    Archer T9UH AC1900 High Gain Wireless Dual Band USB Adapter User Guide Chapter 2 Connect to a Computer Before you begin using your adapter, connect the adapter to your computer. Option 1: Directly Insert the adapter into a USB port on your computer directly. Option 2: Via the USB Extension Cable Connect the adapter and your computer with the provided USB extension cable.

  • Page 12: Chapter 3 Windows

    The CD is included in the package. If your CD does not work or your computer doesn't  support the CD, you can also download the driver from the TP-LINK website (www.tp-link.com). In some operating systems, the CD screen will pop up automatically. Otherwise, run the CD ...
  • Page 13 Archer T9UH AC1900 High Gain Wireless Dual Band USB Adapter User Guide The InstallShield Wizard window displays. Click Next to continue. Click Install. After a few minutes, the installation completes. Click Finish.

  • Page 14: Join A Wireless Network

    Windows XP/7.  Windows 8/8.1/10 Go to Start > Apps or All apps, and find the TP-LINK application. Click Uninstall - TP-LINK Archer T9UH Driver, then follow the on-screen instructions to complete the uninstallation.  Windows XP/7 Go to Start > All Programs > TP-LINK > Uninstall - TP-LINK Archer T9UH Driver. Follow the...

  • Page 15: Chapter 4 Mac Os X

    Note: The CD is included in the package. If your CD does not work or your computer doesn't support the CD, you can also download the driver and utility from the TP-LINK website (www.tp-link.com). Open the Mac OS X Driver folder.
  • Page 16 Open the Mac OS X 10.7_10.10 folder, double click the Installer.pkg file to open the installation wizard. The Install TP-LINK Wireless USB Adapter Utility and Driver Wizard window will appear. Click Continue and follow the wizard to continue the installation.
  • Page 17 Archer T9UH AC1900 High Gain Wireless Dual Band USB Adapter User Guide  Note: The language of this utility is in accordance with the language of your computer by default, and any change of it is invalid.
  • Page 18 Archer T9UH AC1900 High Gain Wireless Dual Band USB Adapter User Guide...

  • Page 19: Join A Wireless Network

    There are two options of using the adapter to join a Wi-Fi network. Option 1: TP-LINK Utility TP-LINK Utility lets you easily connect the adapter to a Wi-Fi network and manage the adapter. Option 2: WPS (Wi-Fi Protected Setup) WPS (Wi-Fi Protected Setup) is a network security standard for easily adding computers and other devices to a home network.

  • Page 20: Tp-Link Utility

    4.2.1 TP-LINK Utility Double-click (TP-LINK Utility icon) and select Available Network tab. Then select the network you want to join from the list and click Connect. The wireless network security properties screen displays. If your network uses wireless security, you will be prompted to enter the Wi-Fi password of the network in the blank field next to Network key, and enter it again in the blank field next to Confirm network key.

  • Page 21: Wps (Wi-Fi Protected Setup)

    Archer T9UH AC1900 High Gain Wireless Dual Band USB Adapter User Guide After successfully connecting to your network, it will switch to Link Status screen automatically, which will show the network status. If you select Available Network tab, you will see a symbol in front of your network’s SSID, which indicates a successful connection.
  • Page 22 AC1900 High Gain Wireless Dual Band USB Adapter User Guide The following screen indicates a successful connection by WPS. Click OK. Option 2 Press the WPS/QSS button on your router or AP. Within 2 minutes, open TP-LINK Utility and click WPS tab. Click PBC.
  • Page 23 Archer T9UH AC1900 High Gain Wireless Dual Band USB Adapter User Guide The following screen indicates a successful connection by WPS. Click OK.

  • Page 24: Management

    AC1900 High Gain Wireless Dual Band USB Adapter User Guide  Open TP-LINK Utility and click WPS tab. Mark down the PIN displayed on the screen, and click PIN. Within 2 minutes, log in to the Web Management page of your router or AP. Go to its WPS page, enter the PIN of the adapter in the corresponding field and click Connect.

  • Page 25: Link Status

    Archer T9UH AC1900 High Gain Wireless Dual Band USB Adapter User Guide 4.3.1 Link Status You can view the signal strength of the Wi-Fi network, the MAC address of the adapter and other information of the link status as shown in the following figure. 4.3.2 Profiles The Profiles screen lets you save and manage different Wi-Fi network connection settings as...
  • Page 26 Archer T9UH AC1900 High Gain Wireless Dual Band USB Adapter User Guide To add a new profile  Click the Add button, and then a new window will open. Complete the settings as shown in the following figure, and click OK. Profile Name - Enter a name for your profile, such as Home, Office, Coffeehouse.

  • Page 27: Uninstall Driver And Utility

    Archer T9UH AC1900 High Gain Wireless Dual Band USB Adapter User Guide Wireless Network Security Properties: Select or enter the corresponding wireless settings, including Network Authentication, Data Encryption and Network key, which should be the same as those of your Wi-Fi network. Then click OK.
  • Page 28 AC1900 High Gain Wireless Dual Band USB Adapter User Guide  Note: The CD is included in the package. If your CD does not work or your computer doesn't support the CD, you can also download the driver and utility from the TP-LINK website (www.tp-link.com).

  • Page 29: Chapter 5 Linux

    AC1900 High Gain Wireless Dual Band USB Adapter User Guide Chapter 5 Linux Visit the TP-LINK website at www.tp-link.com, and go to Archer T9UH’s product page. Then find the compatible version of driver in the support page. Download and install the driver on...

  • Page 30: Appendix A: Specifications

    Archer T9UH AC1900 High Gain Wireless Dual Band USB Adapter User Guide Appendix A: Specifications Normal Interface USB 3.0 Interface Standards IEEE802.11a; IEEE802.11b; IEEE802.11g; IEEE802.11n; IEEE802.1x, IEEE802.11ac Operating System Windows XP, Windows 7, Windows 8, Windows 8.1, Windows 10 Mac OS X 10.7 - 10.10 Linux Throughput 2.4GHz:600Mbps (Maximal)

  • Page 31: Appendix B: Glossary

    Archer T9UH AC1900 High Gain Wireless Dual Band USB Adapter User Guide Appendix B: Glossary  802.11ac - IEEE 802.11ac is a wireless computer networking standard of 802.11.This specification will enable multi-station WLAN throughput of at least 1 gigabit per second. This is accomplished by extending the air interface concepts embraced by 802.11n: wider RF bandwidth, more MIMO spatial streams, multi-user MIMO, and high-density modulation (up to 256 QAM).
