Summary of Contents for Sauber SC-100
- Page 1 CLASSIC User Manual SC-100...
- Page 3 We congratulate you for choosing Sauber Classic the first-class cleaning system. Before operating the Sauber Classic please read this instruction manual carefully and keep it for future reference. - It’s German for clean...
-
Page 4: Safety Instructions
• The mains have to be protected by a 16A or 10A fuse. • Check hose regularly. Do not use if hose is damaged. • If the power cable is damaged, it must be replaced by a Sauber service qualified person in order to avoid any hazard. -
Page 5: Customer Service
• Never clean the vacuum cleaner and all its electrical parts, especially the electrical connections, with water or liquid cleaners. • Only use the socket on the vacuum cleaner for Sauber accessories mentioned in this instruction manual. • Maintenance and repairs may only be undertaken by authorised Sauber customer service personnel. - Page 7 Overview Hose connector with shutter Front lid Handle Side parking position LED Display Mode buttons Blow port Power cable Cable winder foot pedal ON/OFF foot pedal Aroma compartment (not shown) Hose Handle Telescopic tube Automatic floor head Small combination tool Radiator brush Crevice tool Turbo Clean optional accessory*...
-
Page 8: Before You Begin
Please do not expose the hose to water or clean it with water. Damaged cables should be inspected by an authorized Sauber service representative. Do not use the machine with damaged cables. - Page 9 Assembly Open the shutter and gently push the hose in the canister opening. Connect the handle to the telescopic tube. Connect the telescopic tube to the Automatic floor nozzle. To extend the length of the telescopic tube, slide the lock down. To reduce the extension, slide the lock up.
-
Page 10: Operation
Operation To start the vacuum cleaner press the ON/OFF foot pedal. The vacuum cleaner will start in Automatic Power Control (APC) mode. To switch off the vacuum cleaner press the ON/OFF foot pedal. To change to manual mode, press the +/- buttons. Set the Automatic floor head on the AUTO function. - Page 11 Accessories Use the small combination nozzle on the brush side for dusting. Use the combination nozzle on the wing side to vacuum upholstery. When vacuuming The small combination curtains, reduce nozzle can always the vacuum power be kept at hand by manually.
-
Page 12: After Use
Use the blowing function to dry shoes. After use Switch off the vacuum cleaner, unplug the power cable and press on the cable winder foot pedal to retract the power cable. Always store your Sauber Classic as indicated in the picture in a cool, dry place. -
Page 13: Led Display
This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to a Sauber service or collection point for the recycling of electrical and electronic equipment. -
Page 14: Dust Bag And Filters
Replace the dust bag and close the front lid. The long term HEPA 2 filter is located on the underside of the machine, it lasts some years, with regular use, before it needs replacing. The warranty may be void if original Sauber bags and filters are not used. -
Page 15: Technical Data
Voltage: 240v/50Hz Noise level vacuum cleaner: 65 dBa Operating radius: 12m Sauber Classic is recommended by the German Allergy and Asthma Federation DAAB. As a result of scientific tests run by the independent institute GUI. TESTED & RECOMMENDED BY EXPERTS... -
Page 16: Conditions Of Warranty
Conditions of warranty The decision to repair or replace the cleaner is at the Your Sauber cleaner, in the case of domestic use, has a 3 year parts and labour warranty against product sole discretion of Sauber. If Sauber decide to repair defects and failures when the product is used in or replace the cleaner, it will do so at its own cost.
Need help?
Do you have a question about the SC-100 and is the answer not in the manual?
Questions and answers

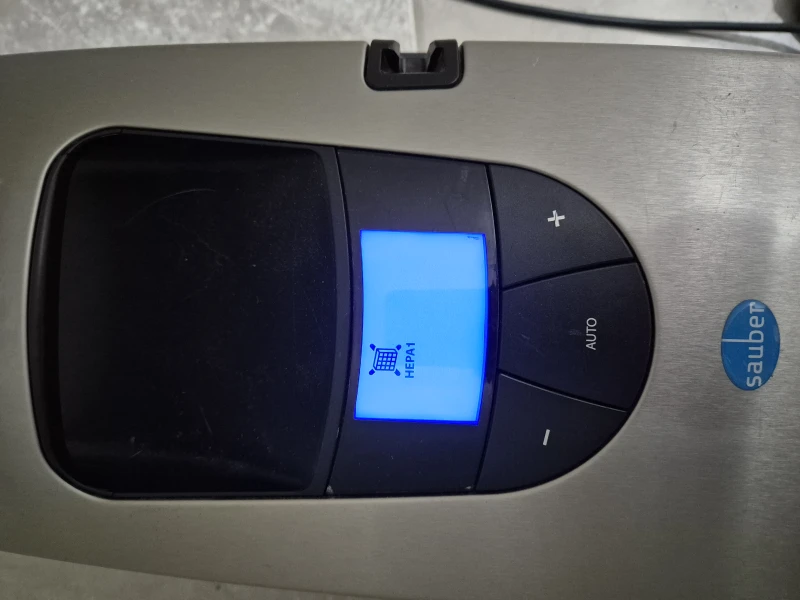

I have a 'hepa' alert show on screen when I turn on vacuum. I have replaced the filter with a new one and put into position but it is still showing alert
The 'HEPA' alert may still be showing on your Sauber SC-100 vacuum after replacing the filter due to one of the following reasons:
1. Improper Installation – Ensure the new HEPA filter is correctly placed and securely fitted.
2. Reset Not Performed – Some vacuum models require a manual reset after replacing the filter. Check if your model has a reset function.
3. Blocked or Dirty Sensors – Dust or debris on sensors may cause the alert to remain. Clean any relevant sensor areas.
4. Additional Maintenance Needed – If the vacuum uses both a HEPA and a carbon filter, ensure both are replaced if required.
5. System Error – If the issue persists, turn off the vacuum, unplug it, and restart after a few minutes. If the alert remains, contact the nearest Sauber service center.
This answer is automatically generated
where are the sensors
