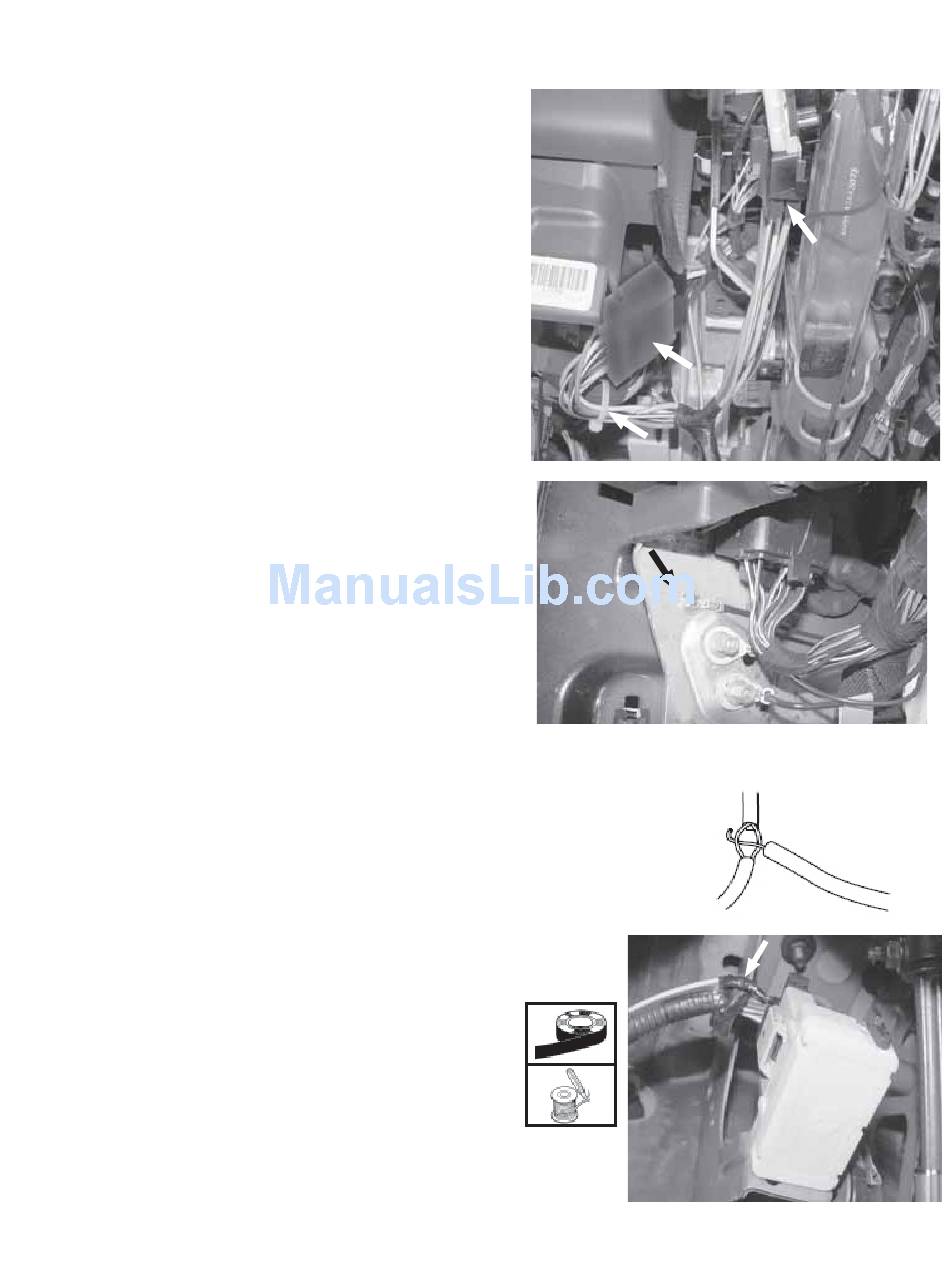

3. Install Custom Harness.
A. Locate ignition switch connector,
located on the left side of the
steering column. Release the red
secondary lock. While pushing on
main release, remove connector
from ignition switch.
B. Connect the harness 10-way
female connector to the vehicle's
ignition switch.
C. Connect the harness 10-way male
connector to the vehicle's 10-way
ignition connector previously
removed from the ignition switch.
Using a supplied wire tie, secure
the custom harness away from the
tilt steering assembly as shown.
D. Using a supplied 1/4" screw,
secure the black ground wire with
ring terminal to the left kick panel
metal as shown in the diagram.
aas shown in diagram.
E. Run the harness White/Tan wire to
the brake switch. Connect by
center-splice to the White/Tan wire
in Cavity #2 of the 6-way brake
connector following the center-
splice procedure above.
Caution: Keep wire away from the
exposed steering column!
Caution: Do not remove the brake
lamp switch from the mounting
bracket. If the switch is re-
moved from the mounting
bracket, it MUST be replaced
with a new switch.
