Summary of Contents for Ormesa Grillo Front-drive gait trainer

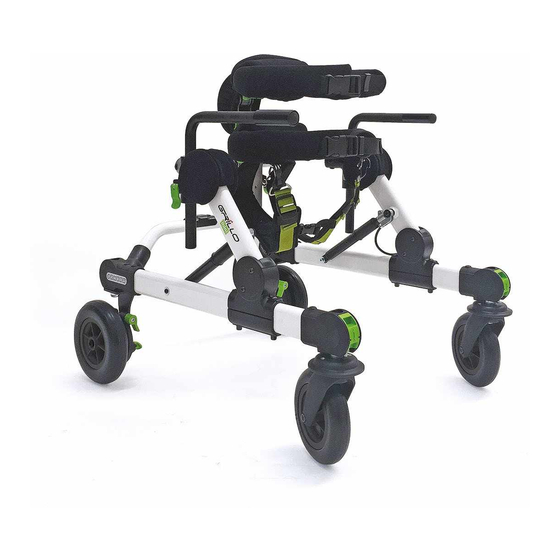

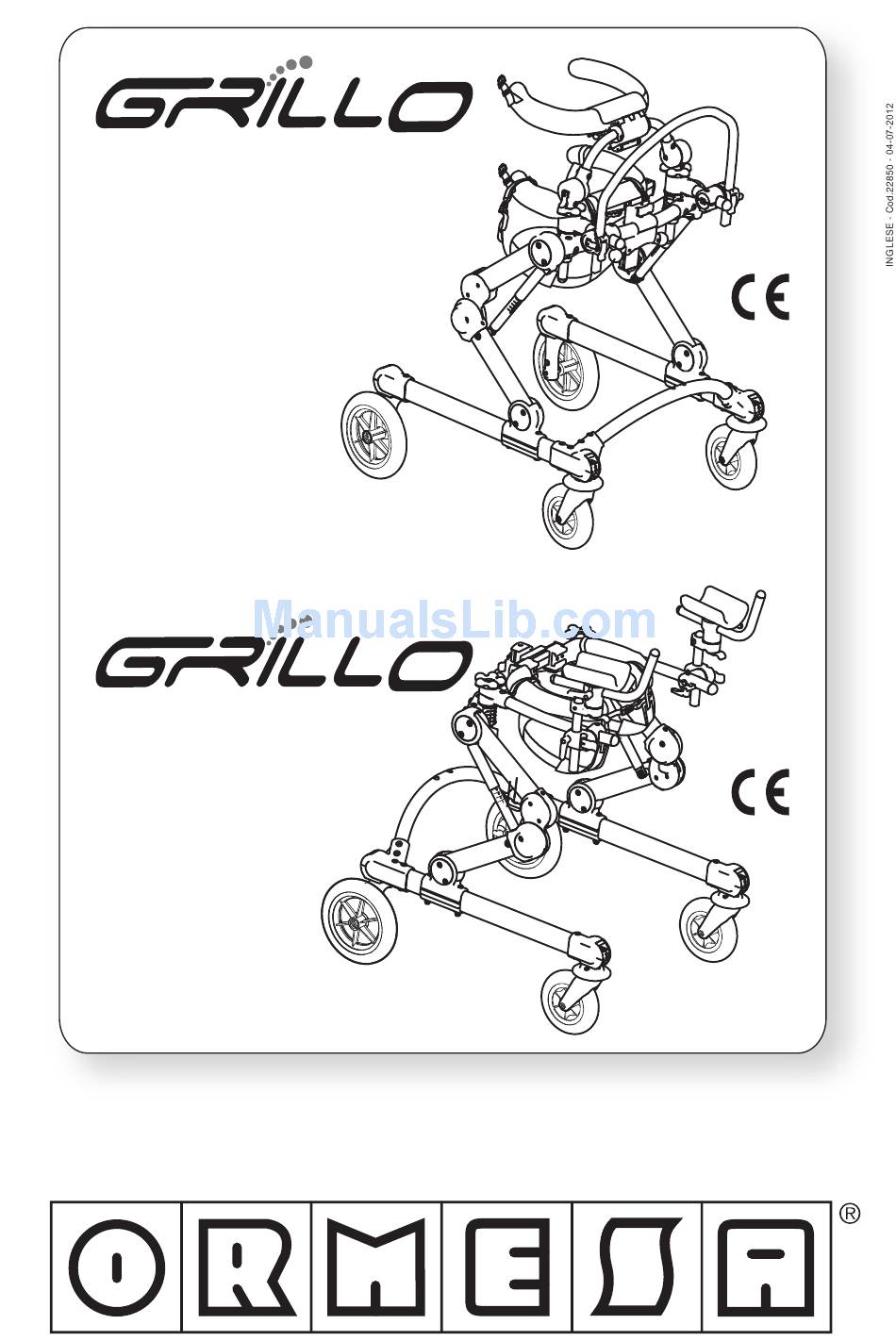

- Page 1 front-drive gait trainer posterior gait trainer USE AND MAINTENANCE HANDBOOK...
- Page 3 GRILLO is a walking frame where the attention to its functionality is combined with the respect of ergonomic and safety principles. ORMESA then suggests you to read this handbook very carefully. It will help you in becoming familiar with GRILLO soon and more efficaciously, and you will also find many practical pieces of advice to use it safely and in the best possible way and to keep it perfectly efficient.
-
Page 4: Table Of Contents
PELVIC AND THORACIC SUPPORTS: CIRCUMFERENCE ADJUSTMENT ......20 DIRECTIONAL LOCKS ........................ 21 CHANGE GRILLO from POSTERIOR to FRONT-DRIVE GAIT TRAINER and VICE VERSA ..22 ADJUSTMENTS FOR GRILLO FRONT-DRIVE GAIT TRAINER ........... 25 THORACIC SUPPORT: HEIGHT ADJUSTMENT ................ 25 THORACIC SUPPORT: FORWARD-BACKWARD and TILT ADJUSTMENTS ......26 PELVIC HARNESS: ASSEMBLY AND ADJUSTMENT .............. - Page 5 ADJUSTMENTS for GRILLO POSTERIOR GAIT TRAINER ..........30 HANDLES: ADJUSTMENTS in WIDTH..................30 PELVIC HARNESS: ASSEMBLY AND ADJUSTMENT ..............31 ASSEMBLING AND ADJUSTING THE COMPONENTS ............32 ARM SUPPORTS ........................32 LEG DIVIDER WITH THIGH SUPPORTS ..................36 FOLDING SEAT for GRILLO POSTERIOR GAIT TRAINER ............39 LUMBAR SUPPORT for GRILLO POSTERIOR GAIT TRAINER ..........
-
Page 6: Warnings
- The handbook reflects the state of technique at the moment of taking the aid into the market. ORMESA srl reserves the right to carry out any modification to the aid and to its handbook which can be suggested by the experience, by technical considerations or by the change of standards. - Page 7 In case of DOUBT about the SAFETY of the product or DAMAGE to parts or components, you are urged to IMMEDIATELY DISCONTINUE USE and CONTACT a SPECIALIZED SERVICE CENTER in the maintenance of mechanical aids for disables, or directly ORMESA. Page 5 of 45...
-
Page 8: Some Examples Of What Not To Do With The Product
SOME EXAMPLES OF WHAT NOT TO DO WITH THE PRODUCT - GRILLO MUSTN'T BE USED UNLESS A MEMBER OF THE USER’S FAMILY OR QUALIFIED PERSON IS PRESENT AT ALL TIME - DO NOT CARRY OUT ANY OPERATION OR MANOEUVRE UNLESS YOU ARE SURE OF THE RESULT: IF IN DOUBT, CONTACT YOUR NEAREST TECHNICAL SERVICE OR CONTACT THE MANUFACTURER DIRECTLY - GRILLO MUST BE USED BY PEOPLE WHOSE HEIGHT AND WEIGHT ARE... -
Page 9: Guarantee
GUARANTEE ORMESA warrants the product for 2 years; in case of problems, contact the retailer where you purchased it. Always ask for original parts and accessories. ORMESA will not be liable for damage in the following cases: - use by an unsuitable person;... -
Page 10: What Grillo Is And What It Is For
WHAT GRILLO IS AND WHAT IT IS FOR GRILLO is a walking aid, that’s to say a product that was designed to help and make the independent moving of a User easier. It is for spasthic/distonic users, for users who have little brawn or for users who start to walk. - Page 11 There is no predetermined position! Each position must be decided according to the User and it must be modified according to his physical development, to the change in his motory situation and rehabilitation programme. The pelvic support should be adjusted around the higher part of the pelvis. The support of the pelvis and the weight on his feet can be increased or decreased by adjusting the harness height The height of the thoracic support is usually adjusted according to the child's ability to control...
-
Page 12: Technical Specifications - Grillo Gait Trainer
LUMBAR SUPPORT. • Manually FOLDABLE SEAT. • Exclusive ORMESA DESIGN WHEELS, light and puncture-proof: 2 front swiveling, Ø15 (size “Onetwo”) and cm 17,5 (size “Threefour”) and 2 rear fixed, Ø cm 20 (size “Onetwo”) and Ø cm 25 (size “Threefour”). •... -
Page 13: Posterior Frame
ANTERIOR FRAME thoracic support pelvic support handlebar pelvic harness posterior wheels with anterior wheels with - brake directional locks - adjustable brake - anti-reverse wheel stops POSTERIOR FRAME arm supports pelvic support handrests pelvic harness posterior wheels with - brake anterior wheels with - adjustable brake directional locks... - Page 14 DIMENSIONS in cm Inner circumference of the adjustable pelvic and thoracic supports, from 55 cm to 80 cm GRILLO FRONT-DRIVE gait trainer size OneTwo Inner circumference of the adjustable pelvic and thoracic supports, from cm to GRILLO FRONT-DRIVE gait trainer size ThreeFour...
- Page 15 Inner circumference of the adjustable pelvic support, from 55 cm to 80 cm size OneTwo WEIGHT 15,7 kg MAX LOAD. kg 45 GRILLO POSTERIOR gait trainer Inner circumference of the adjustable pelvic support, from cm to size ThreeFour WEIGHT 17,7kg MAX LOAD. kg 90 GRILLO POSTERIOR gait trainer HYPHEN-SEPARATED NUMBERS INDICATE THE MINIMUM AND MAXIMUM RANGE OF ADJUSTMENT...
-
Page 16: Warnings On Posterior Grillo
WARNINGS ON POSTERIOR GRILLO WARNINGS SHOULD THE USER WEIGHT EXCEED 80 Kg, THE USE OF THE PELVIC HARNESS IS REQUIRED. Page 14 of 45... -
Page 17: How To Use Grillo Gait Trainer
HOW TO USE GRILLO GAIT TRAINER FRAME: HEIGHT ADJUSTMENT OPERATE THE ADJUSTMENT KNOBS WITH BOTH HANDS ADJUST THE HEIGHT OF GRILLO RELEASING THE ADJUSTMENT KNOBS adjustment knobs height adjustment graduated bars height adjustment graduated bars Page 15 of 45... -
Page 18: Brakes
BRAKES brake lever FREE WHEEL LOCKED WHEEL Page 16 of 45... -
Page 19: Adjustable Brake
ADJUSTABLE BRAKE LOCKED WHEEL FREE WHEEL 4 POSITIONS OF THE ADJUSTABLE BRAKE LEVER ADJUSTABLE BRAKES Page 17 of 45... -
Page 20: Anti-Reverse Device
ANTI-REVERSE DEVICE WARNINGS! The anti-reverse device reduces the maneuverability of the gait trainer ACTIVATED ANTI-REVERSE DEVICE DISACTIVATED ANTI-REVERSE DEVICE Page 18 of 45... -
Page 21: Pelvic Support: Height Adjustment
PELVIC SUPPORT: HEIGHT ADJUSTMENT height adjustment graduated bars position of the locked locking lever VIEW FROM ABOVE unlock lock locking lever Page 19 of 45... -
Page 22: Pelvic And Thoracic Supports: Circumference Adjustment
PELVIC AND THORACIC SUPPORTS: CIRCUMFERENCE ADJUSTMENT VIEW FROM THE BACK lock lock unlock locking lever Page 20 of 45... -
Page 23: Directional Locks
DIRECTIONAL LOCKS unlock lock DIRECTIONAL LOCK Page 21 of 45... -
Page 24: Change Grillo From Posterior To Front-Drive Gait Trainer And Vice Versa
CHANGE GRILLO from POSTERIOR to FRONT-DRIVE GAIT TRAINER and VICE VERSA WARNINGS! This operation must be done by qualified personnel only WHEEL-ASSEMBLING AND DISASSEMBLING SCHEME GRILLO FRONT-DRIVE GAIT TRAINER GRILLO POSTERIOR GAIT TRAINER VIEW FROM ABOVE Page 22 of 45... - Page 25 GRILLO FRONT-DRIVE GAIT TRAINER: DISASSEMBLING THE WHEELS supplied extractor directional lock with extractor wrench wrench supplied extractor plug with extractor wrench wrench Page 23 of 45...
- Page 26 GRILLO POSTERIOR GAIT TRAINER: ASSEMBLING THE WHEELS plug wrench wrench directional lock wrench Page 24 of 45...
-
Page 27: Adjustments For Grillo Front-Drive Gait Trainer
ADJUSTMENTS FOR GRILLO FRONT-DRIVE GAIT TRAINER THORACIC SUPPORT: HEIGHT ADJUSTMENT DO NOT ROTATE VIEW FROM THE FRONT locking lever unlock position of the locking levers height lock adjustment graduated bars VIEW FROM ABOVE Page 25 of 45... -
Page 28: Thoracic Support: Forward-Backward And Tilt Adjustments
THORACIC SUPPORT: FORWARD-BACKWARD and TILT ADJUSTMENTS LATERAL VIEW NOTE: UNLOCK ALL THREE LEVERS ILLUSTRATED IN THE FIGURE locking lever TO OBTAIN THE FORWARD- BACKWARD ADJUSTMENT OF unlock THE THORACIC SUPPORT. lock locking lever locking lever unlock unlock lock lock Page 26 of 45... -
Page 29: Pelvic Harness: Assembly And Adjustment
PELVIC HARNESS: ASSEMBLY AND ADJUSTMENT SIDE VIEW FRONT VIEW BACK VIEW BACK VIEW Page 27 of 45... -
Page 30: Handlebar: Height, Tilt, Forward-Backward Adjustments
HANDLEBAR : HEIGHT, TILT, FORWARD-BACKWARD ADJUSTMENTS Height adjustment HANDLE unlock lock Tilt adjustment locking lever lock unlock Page 28 of 45... - Page 31 Forward-backward adjustment handle lock unlock Page 29 of 45...
-
Page 32: Adjustments For Grillo Posterior Gait Trainer
ADJUSTMENTS for GRILLO POSTERIOR GAIT TRAINER HANDLES: ADJUSTMENTS in WIDTH before use handle grip unlock lock knob handle grip locking button VIEW FROM ABOVE knob Page 30 of 45... -
Page 33: Pelvic Harness: Assembly And Adjustment
PELVIC HARNESS: ASSEMBLY AND ADJUSTMENT SIDE VIEW FRONT VIEW BACK VIEW Page 31 of 45... -
Page 34: Assembling And Adjusting The Components
ASSEMBLING AND ADJUSTING THE COMPONENTS ARM SUPPORTS ASSEMBLING travel stop Page 32 of 45... - Page 35 POSITIONING Arm support positioned outside the handle Right arm support Handle Left arm support Arm support positioned inside the handle Left arm support Handle Right arm support Page 33 of 45...
- Page 36 ADJUSTMENTS Height adjustment handle unlock lock unlock Depth of the handle lock adjustment handle Depth lock unlock adjustment handle Page 34 of 45...
- Page 37 Tilt locking lever lock unlock From prone to supine position of the handle unlock lock adjustment handle Rotation lock locking lever unlock Page 35 of 45...
-
Page 38: Leg Divider With Thigh Supports
LEG DIVIDER WITH THIGH SUPPORTS wrench ASSEMBLY LEG DIVIDER CONNECTED TO THE FRAME Page 36 of 45... - Page 39 ADJUSTMENT IN HEIGHT locking lever unlock lock screws to adjust ADJUSTING THE STEP EXTENT the step extent wrench Page 37 of 45...
- Page 40 POSITIONING THE LEG DIVIDERS OF GRILLO IN THE FRONT-DRIVE GAIT TRAINER POSITIONING THE LEG DIVIDERS OF GRILLO IN THE POSTERIOR GAIT TRAINER Page 38 of 45...
-
Page 41: Folding Seat For Grillo Posterior Gait Trainer
FOLDING SEAT for GRILLO POSTERIOR GAIT TRAINER ASSEMBLING wrench wrench Page 39 of 45... - Page 42 FOLDING Page 40 of 45...
-
Page 43: Lumbar Support For Grillo Posterior Gait Trainer
LUMBAR SUPPORT for GRILLO POSTERIOR GAIT TRAINER ASSEMBLY NOTE: YOU CAN USE ALSO THE FOLDING SEAT WITH THE POSTERIOR SUPPORT Page 41 of 45... - Page 44 HEIGHT ADJUSTMENT position of the locking lever REAR VIEW unlock lock VIEW FROM ABOVE locking lever Page 42 of 45...
-
Page 45: Maintenance, Cleaning And Disinfection Of Grillo
MAINTENANCE, CLEANING AND DISINFECTION OF GRILLO ORDINARY MAINTENANCE ( or preventive ) THE ORDINARY MAINTENANCE OF THE AID HAS TO BE DONE AT LEAST EVERY MONTH. ALL THE PERIODIC WORKS OF MAINTENANCE ARE NECESSARY TO ASSURE THE RIGHT USE OF THE AID AND ITS SAFETY. IT IS ALSO THE MAIN REQUIREMENT TO KEEP THE CE MARKING. -
Page 46: Assistance And Spare Parts Of Grillo
If you verify an INEFFICIENCY, even if just partial, of the BRAKES, contact the Dealer who sold you the product immediately. He will evaluate their possible reparation/change in order to avoid dangerous situations that could cause accidents. Do NOT perform maintenance or replace parts or accessories when the user is in the device. -
Page 47: Conditions For Durability, Reuse And Reassignment Toa New User
Prior to recycling or reassignment an already used Ormesa product, it is required that: a doctor or therapist verifies that the aid is appropriate and adequate to meet the dimensional, functional and postural needs of the new user, and if all its components are suitable / appropriate for him. - Page 48 ® SINCE 1980 Authorized Dealer The technical Data and information given in this handbook are not binding. ORMESA reserves the right to carry out any necessary change without prior notice or replacements...
