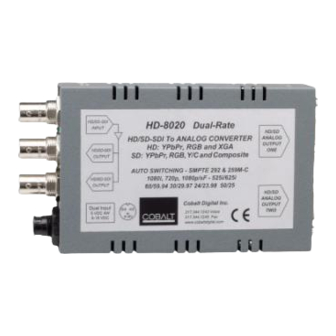

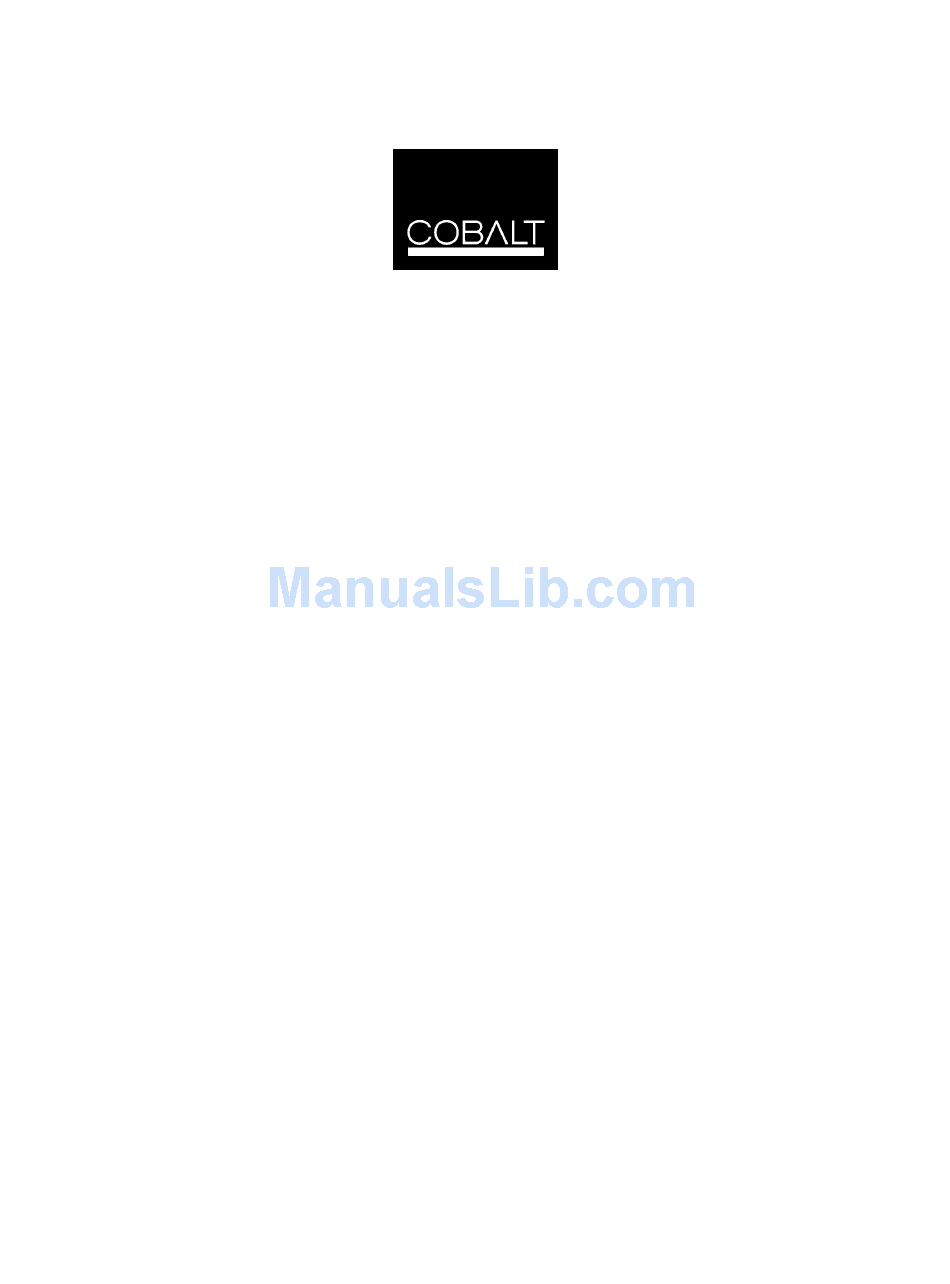

- Page 1 Model HD-8020 Multi-rate HD/SD-SDI Digital to Analog Converter Owner’s Manual...
-
Page 2: Table Of Contents
Table of Contents: Overview..........................3 How to Configure an 8020....................4 Switch Bank 1 – Analog Output..................4 Switch Bank 2 – Reticule Overlay................... 6 Internal Switch Settings....................7 Specifications........................8 Page 2 of 8 Cobalt Digital 2010... -
Page 3: Overview
Overview The HD-8020 is a high quality 12-bit digital to analog converter that accepts HD SMPTE-292 and SD SMPTE 259M-C input signals and converts them to same rate and format analog video. For HD signals the 8020 the user can select YPbPr or RGB outputs with embedded tri-level sync or H and V sync on a five BNC interface. -
Page 4: How To Configure An 8020
Switch Bank 1 - Analog Output Configuration - SD Color Bars S1-6 Function Color Bars SD Analog Color Bars ON SD Analog Color Bars OFF Note: The 8020 will not output color bars unless an SDI input is present. Page 4 of 8 Cobalt Digital 2010... - Page 5 HD channels (YPbPr or RGB). If H&V external sync is selected, the embedded sync is removed for RGB signals and H&V are sent to the H&V connections on the HD-15 connector. Page 5 of 8 Cobalt Digital 2010...
-
Page 6: Switch Bank 2 - Reticule Overlay
Switch Bank 2 – Reticule Overlay - Color Selection S2-7 S2-8 Function Reticule color is White or User Preset Reticule color is Blue or User Preset Reticule color is Green or User Preset Reticule color is Black or User Preset Page 6 of 8 Cobalt Digital 2010... -
Page 7: Internal Switch Settings
67: User Reticule Mode 16x9 box Vert size 68: User Reticule Mode 16x9 box Horz Thickness 99: Save current values Make certain that the rotary switches are restored to 0, 0 before re-installing the bottom cover. Page 7 of 8 Cobalt Digital 2010... -
Page 8: Specifications
This product is not authorized for use in life support systems. Product liability is limited only to the replacement of this unit. Cobalt Digital Inc. does not assume any liability for loss of use due to failure of this component.
