Cobalt Digital Inc HD-8019 Owner's Manual

SPECIFICATIONS:

DIGITAL
Input Signal: SMPTE-292 HDSDI (10 bit)
♦
♦
♦
♦
Input Equalization: 430ft (130 Meters) Belden 1505A
Return Loss: > 15 dB
Output: Two HDSDI equalized input copies
ANALOG
Output Signal: DUAL HD-Analog: YPbPr, RGB & SVGA
Frequency Response: Y: 0-30 MHz +/- 0.25 dB
Pb/Pr: 0-15 MHz +/- 0.25 dB
DAC Quantization: 10 bits across active video
Return Loss: >30dB
Connectors: HD15 with adapters cables for BNC outputs.
Sync: Composite: Bi/Tri-Level; H/V SVGA and
Sync on Video
Reticules 4x3 or 16x9 Safe Area
Reticule Color Black or White
Options: Remote Reticule control
Operating Range: 40-110 degrees F. (non-condensing)
Input Power: +5VDC @ 0.9A
Optional 7-20VDC 6W
Size: 5.4" x 3" x 1" (137 x 76 x 25mm)
This product is not authorized for use in life support systems. Product
liability is limited only to the replacement of this unit. Cobalt Digital Inc.
does not assume any liability for loss of use due to failure of this
component.
Specifications subject to change without notice.
Cobalt Digital Inc.
2406 E. University Avenue, Urbana, IL 61802
217-344-1243
www.cobaltdigital.com
Rev. 1.0 gjz Copyright 2002
720P 23.98/24/25/29.97/30/59.94/60
1080I 59.94/60/50
1080P 25/29.97/30 23.98/24p/(sF)
1035I 59.94/60
Fax 217-344-1245

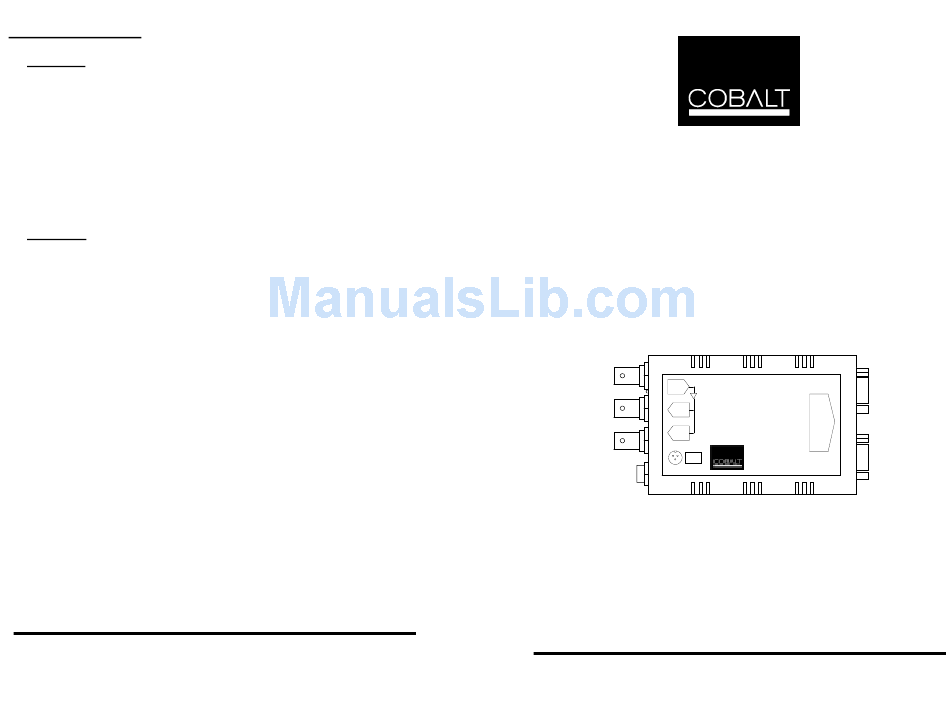

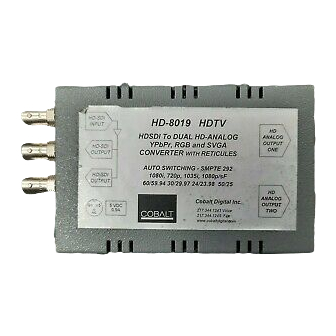

Cobalt Digital Inc.
Model HD-8019
HDSDI SMPTE-292
Digital to Dual Output
HD-Analog Converter
With Reticules
HD-SDI
HD-8019 HDTV
INPUT
HDSDI To DUAL HD-ANALOG
DUAL
ANALOG
YPbPr, RGB and SVGA
HD-SDI
HD
CONVERTER
OUTPUT WITH RETICULES
YPbPr
RGB
SVGA
AUTO SWITCHING - SMPTE 292
1080i, 720p, 1035i, 1080p/sF
HD-SDI H/V
Bi-Tri
OUTPUT
60/59.94 30/29.97 24/23.98 50/25
Sync
OUTPUT
Cobalt Digital Inc.
G 5 5 VDC
0.9A 217.344.1243 Voice
NC
217.344.1245 Fax
www.cobaltdigital.com
Owner's Manual
Cobalt Digital Inc. 2002
