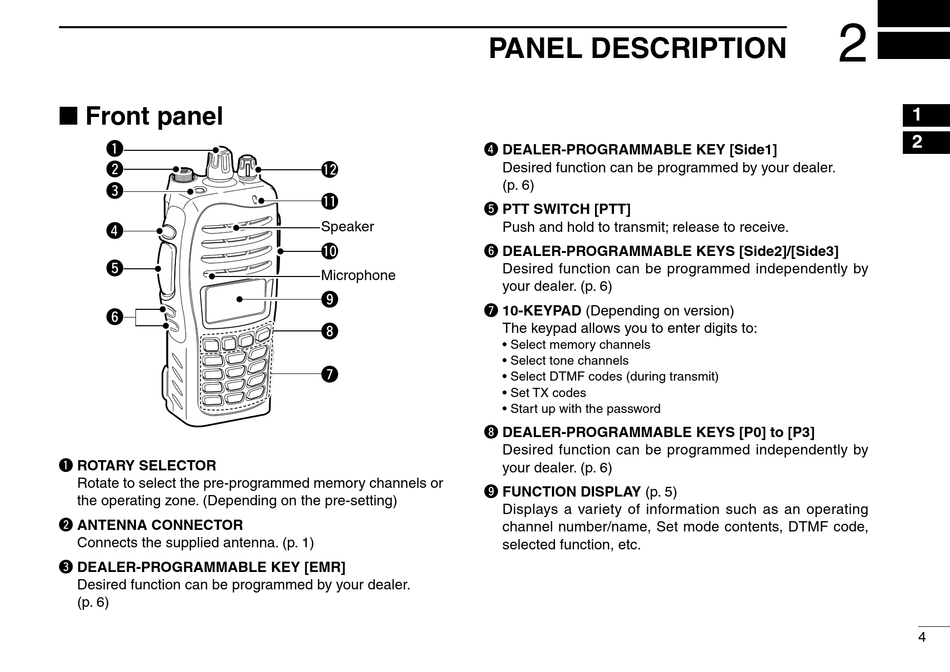

■ Front panel

q
w
e
r
t
y
q ROTARY SELECTOR
Rotate to select the pre-programmed memory channels or
the operating zone. (Depending on the pre-setting)
w ANTENNA CONNECTOR
Connects the supplied antenna. (p. 1)
e DEALER-PROGRAMMABLE KEY [EMR]
Desired function can be programmed by your dealer.
(p. 6)

PANEL DESCRIPTION

r DEALER-PROGRAMMABLE KEY [Side1]
!2
!1
t PTT SWITCH [PTT]
Speaker
!0 y DEALER-PROGRAMMABLE KEYS [Side2]/[Side3]
Microphone
o
u 10-KEYPAD (Depending on version)
i
u
i DEALER-PROGRAMMABLE KEYS [P0] to [P3]
o FUNCTION DISPLAY (p. 5)
Desired function can be programmed by your dealer.
(p. 6)
Push and hold to transmit; release to receive.
Desired function can be programmed independently by
your dealer. (p. 6)
The keypad allows you to enter digits to:
• Select memory channels
• Select tone channels
• Select DTMF codes (during transmit)
• Set TX codes
• Start up with the password
Desired function can be programmed independently by
your dealer. (p. 6)
Displays a variety of information such as an operating
channel number/name, Set mode contents, DTMF code,
selected function, etc.
