- Page 1 MODEL 2500KL / MODEL 2600KL DIGITAL WHEELCHAIR PATIENT SCALES 2500KL 2600KL USER INSTRUCTIONS P/N UM2500KL / 2600KL Revision 1...
-
Page 2: Table Of Contents
2500KL / 2600KL Thank you for your purchase of this Health o meter® Professional product. Please read this manual carefully, and keep it for easy reference or training. TABLE OF CONTENTS CAUTION AND WARNING ....................3 SPECIFICATIONS FOR THESE SCALES................4 CERTIFICATIONS / CONNECTIVITY / DISPOSAL ............ -
Page 3: Caution And Warning
CAUTION AND WARNING To prevent injury and damage to your scale, please follow these instructions very • carefully. Assemble and operate the scale per the enclosed User Instructions. • Prior to using the scale, inspect the AC adapter cord for cracking/fraying, •... -
Page 4: Specifications For These Scales

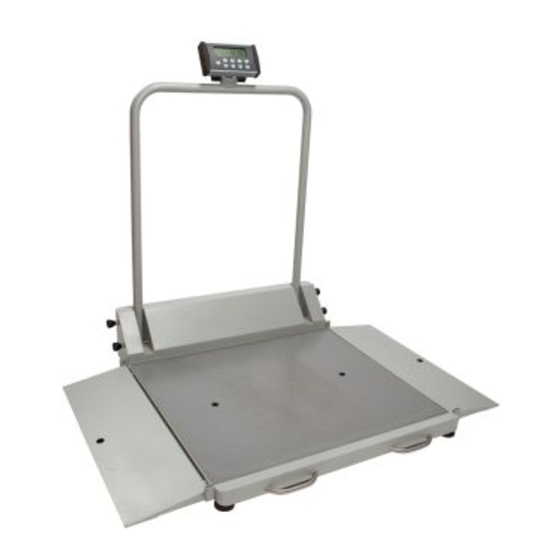

For easy mobility, the 2500KL Scale has 2 built-in wheels, along with the 2600KL Scale with 4 built-in wheels. Both scales can be powered using an AC Adapter (included), or by 6-AA batteries (not included). -
Page 5: Certifications / Connectivity / Disposal
These scales are EMR-EHR compatible. For more information regarding how to connect these scales to other electronic devices, please contact Health o meter® Professional Scale Technical Support, available during normal business hours at (+1) 800-815-6615 or (+1) 708- 377-0600. -
Page 6: Assembly Instructions 2500Kl Scale
2500KL ASSEMBLY INSTRUCTIONS Before Assembly (2500KL Scale) The 2500KL Wheelchair Patient Digital Scale is shipped disassembled in one carton. Carefully inspect the carton for shipping damage before unpacking. If damage is found, contact your shipper or Health o meter® Professional representative immediately. Claims must be filed with the shipper as soon as possible after receipt of the package. - Page 7 5. Feed the cable through the large center hole of the handrail mounting holes (located on the right side of the “Health o meter” logo). Be sure not to pinch the cable. 6. Fasten the handrail to the base assembly using the eight (8) M8 1.25 x ¾ screws (Screw “A”...
- Page 8 2500KL ASSEMBLY INSTRUCTIONS (CONTINUED) Note: Do not attach the AC adapter power cord into the back of the display assembly at this point. 14. Align the four mounting holes on the back of the display assembly with the four mounting holes in the display support, and fasten the display assembly onto the metal display support.
- Page 9 2500KL ASSEMBLY INSTRUCTIONS (CONTINUED) Ramp Assembly Instructions 1. Follow these instructions for moving the ramp to the opposite side of the scale, or for adding a second ramp to the scale (B2500RAMP option): 2. On the side of the platform opposite to the ramp, remove the guardrail mounted to the end of the platform by unscrewing and then removing the 4 guardrail assembly screws.
- Page 10 2500KL ASSEMBLY INSTRUCTIONS (CONTINUED) Handrail Mounting Holes Left Right Figure 2 d cell port Shield Figure 3...
- Page 11 2500KL ASSEMBLY INSTRUCTIONS (CONTINUED) Figure 4 Figure 5...
-
Page 12: Assembly Instructions 2600Kl Scale
Carefully inspect the carton for shipping damage before unpacking. If damage is found, contact your shipper or Health o meter® Professional representative immediately. Claims must be filed with the shipper as soon as possible after receipt of the package. The following information details what you will find inside the main carton as you unpack the parts for assembly. - Page 13 2600KL ASSEMBLY INSTRUCTIONS (CONTINUED) 4. Open the scale to its operational position. Warning: Do not drop the scale on its feet. This can result in permanent load cell damage. 5. Rotate the display support so that it is perpendicular to the handrail. 6.
- Page 14 2600KL ASSEMBLY INSTRUCTIONS (CONTINUED) Figure 6 Figure 7...
- Page 15 2600KL ASSEMBLY INSTRUCTIONS (CONTINUED) Ramp Assembly Instructions 1. Follow these instructions for moving the ramp to the opposite side of the scale, or for adding a second ramp to the scale (B2600RAMP option): 2. On the side of the platform opposite to the ramp, remove the guardrail mounted to the end of the platform by unscrewing and then removing the 4 guardrail assembly screws.
-
Page 16: Set Up / Batteries
In addition, to avoid damage to the pin assemblies, tighten the two lower locking pin assemblies as well. Preparing the 2500KL & 2600KL Scale for Use 1. Remove the protective plastic film covering the display (the film says “FACTORY CALIBRATED”). - Page 17 2. Remove the battery cover on the side of the display head by unscrewing the (2) battery cover screws (see Figure 9). 3. Replace or install the batteries with new units. Health o meter recommends using an alkaline or lithium battery, rated for 130° F (54° C) operation. Do not use Zinc-Carbon batteries.
-
Page 18: Quick Start Instructions
1. When using the scale, the weight of an object, such as a wheelchair, can be subtracted from the total weight to determine the patient’s weight alone. 2. The Tare Function automatically performs this subtraction. The 2500KL / 2600KL scales allow the tare weight to be entered either manually through the keypad, or automatically as... - Page 19 QUICK START/OPERATING INSTRUCTIONS (CONT) Automatic (Push Button Tare) 1. With all weight off the scale, press the ON/OFF button to turn on the scale. 2. Wait until the ”0.0LB“ or “0.0KG” and “ZERO” appear on the display. 3. Place the wheelchair on the scale. The display will show a value for the wheelchair’s weight. 4.
- Page 20 5. Once a weight has been displayed, while the patient is still on the scale, Health o meter recommends performing a second weighing by pressing the REWEIGH button.
- Page 21 QUICK START/OPERATING INSTRUCTIONS (CONT) Calculating BMI 1. Body Mass Index is another name for Quetelet Index, a formula that is a convenient and reliable indicator of obesity. Note: The scale will not calculate BMI for a patient that is 24 pounds (12 kg) or less. If a height is not entered for the patient within 30 seconds of pressing the BMI button, the scale will return to the normal weighing mode.
-
Page 22: Maintenance
MAINTENANCE The following pages provide instructions for maintenance, cleaning, calibrating, and troubleshooting for the 2500KL / 2600KL scales. Maintenance operations other than those described in this manual should be performed by qualified service personnel. Maintenance Before first use, or after long periods of non-use, check the scale for proper operation and function. -
Page 23: Calibration
These scales have been factory calibrated, and do not require calibration prior to use. For maintenance, the scales can be calibrated. Calibration of your 2500KL/2600KL scale is performed using kilos (kg) or pounds (lb), according to the units of measure used upon entering into the calibration path. -
Page 24: Troubleshooting
TROUBLESHOOTING Before contacting service personnel, refer to the following instructions to check and to correct any failures. Troubleshooting Symptom Possible Cause Corrective Action Scale does not turn on Dead Battery Replace batteries Faulty electrical outlet Use a different outlet Bad power supply Replace AC adapter Questionable weight or External object interfering... -
Page 25: Warranty
What does the Warranty Cover? Health o meter® Professional scales are warranted from date of purchase against defects of materials or in workmanship for a period of two (2) years. If product fails to function properly, return the product, freight prepaid and properly packed to Pelstar, LLC (see “To Get Warranty Service”, below, for instructions).
