Health O Meter 2500KL User Instructions
Digital patient wheelchair scales
Hide thumbs
Also See for 2500KL:
- Use instruction (84 pages) ,
- User instructions (25 pages) ,
- Operation manual (103 pages)
Related Manuals for Health O Meter 2500KL
Summary of Contents for Health O Meter 2500KL
-
Page 1: User Instructions

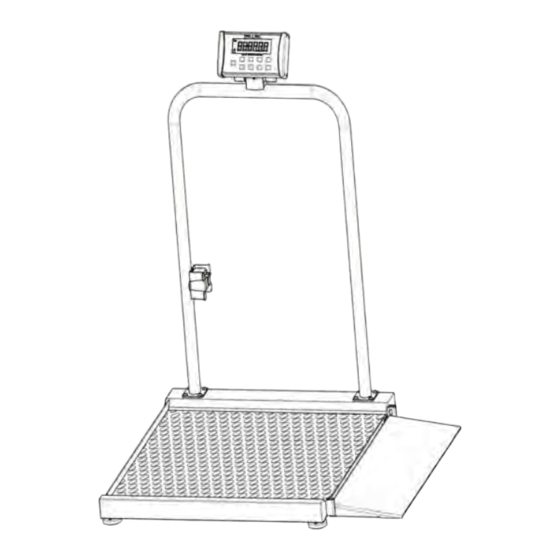

Model 2500KL / 2600KL Digital Patient Wheelchair Scales User Instructions P/N UM2500KL / 2600KL Rev 2-031913... -
Page 2: Table Of Contents
Model 2500KL / 2600KL Thank you for your purchase of this Health o meter® Professional product. Please read this manual carefully, and keep it for easy reference or training. TABLE OF CONTENTS Caution and Warning....................3 Specifications for These Scales ................4 Certifications / Connectivity / Disposal ..............5... -
Page 3: Caution And Warning
CAUTION AND WARNING To prevent injury and damage to your scale, please follow these instructions very carefully. Assemble and operate the scale per the enclosed user instructions. Operate these scales exclusively with the AC adapter provided by Health o meter. -
Page 4: Specifications For These Scales
For easy mobility, the 2500KL Scale has 2 built-in wheels, along with the 2600KL Scale with 4 built-in wheels. Each scale can be powered using an AC adapter (included), or by 6 - AA batteries (not included). -
Page 5: Certifications / Connectivity / Disposal
2500KL / 2600KL Scale Disposal These Health o meter® Professional scales must be disposed of properly as electronic waste. Follow the national, regional or local regulations which apply to you for disposal of electronic... -
Page 6: Assembly Instructions 2500Kl Scale
2500KL ASSEMBLY INSTRUCTIONS Before Assembly Each 2500KL scale is shipped disassembled in a single carton. Carefully inspect the carton for shipping damage before unpacking. If damage is found, contact your shipper or a Health o meter® Professional representative . Claims must be filed with the shipper as soon as possible after receipt of the package. - Page 7 5. Feed the cable through the large center hole of the handrail mounting holes (located on the right side of the “Health o meter” logo). Be sure not to pinch the cable. 6. Fasten the handrail to the platform using the (8) M8 1.25 x ¾ screws, (8) M8 washers (D) and the included 5mm Allen wrench (see Figure 1).
- Page 8 2500KL ASSEMBLY INSTRUCTIONS (CONTINUED) 14. Align the four mounting holes on the back of the display assembly with the four mounting holes in the display support. Fasten the display assembly onto the metal display support. Use the (4) Phillips pan head #5 x 3/8 screws (see Figure 1).
- Page 9 2500KL ASSEMBLY INSTRUCTIONS (CONTINUED) Ramp Assembly Instructions 1. Follow these instructions for moving the ramp to the opposite side of the scale, or for adding a second ramp to the scale (B2500RAMP option): 2. On the side of the platform opposite to the ramp, remove the guardrail mounted to the end of the platform by unscrewing and then removing the 4 guardrail assembly screws (see Figure 3).
- Page 10 2500KL ASSEMBLY INSTRUCTIONS (CONTINUED) Figure 1 Figure 2...
- Page 11 2500KL ASSEMBLY INSTRUCTIONS (CONTINUED) Handrail Mounting Holes Left Right Guardrail Figure 3 Load Cell Port Shield Figure 4...
- Page 12 2500KL ASSEMBLY INSTRUCTIONS (CONTINUED) Figure 5 Figure 6...
- Page 13 2500KL ASSEMBLY INSTRUCTIONS (CONTINUED) Figure 7...
-
Page 14: Assembly Instructions 2600Kl Scale
2600KL ASSEMBLY INSTRUCTIONS Before Assembly Each 2600KL scale is shipped disassembled in a single carton. Carefully inspect the carton for shipping damage before unpacking. If damage is found, contact your shipper or a Health o meter® Professional representative . Claims must be filed with the shipper as soon as possible after receipt of the package. - Page 15 2600KL ASSEMBLY INSTRUCTIONS (CONTINUED) Assembling the 2600KL Scale (Refer to Figures 7-10) Caution: It is recommended that the assembly be performed by two persons. 1. Remove the scale assembly from the carton by first removing the inserts, then tucking the bag down around the end of the box, and finally tilting the carton up on its end.
- Page 16 2600KL ASSEMBLY INSTRUCTIONS (CONTINUED) Ramp Assembly Instructions 1. Follow these instructions for moving the ramp to the opposite side of the scale, or for adding a second ramp to the scale (B2600RAMP option): 2. On the side of the platform opposite to the ramp, remove the guardrail mounted to the end of the platform by unscrewing and then removing the 4 guardrail assembly screws (see Figure 3).
- Page 17 2600KL ASSEMBLY INSTRUCTIONS (CONTINUED) Figure 8 Figure 9...
- Page 18 2600KL ASSEMBLY INSTRUCTIONS (CONTINUED) Figure 10 Load Cell Port...
-
Page 19: Setup / Batteries
In addition, to avoid damage to the pin assemblies, tighten the two lower locking pin assemblies as well. Preparing the 2500KL / 2600KL Scale for Use 1. Remove the protective plastic film covering the display (the film says “FACTORY CALIBRATED”). - Page 20 2. Remove the battery cover on the side of the display head by unscrewing the (2) battery cover screws (see Figure 11). 3. Replace or install the batteries with new units. Health o meter recommends using an alkaline or lithium battery, rated for 130°F (54°C) operation. Do not use Zinc-Carbon batteries.
-
Page 21: Quick Start Instructions
QUICK START / OPERATING INSTRUCTIONS Keypad Figure 12 Function Description ON/OFF Turns scale on and off. ZERO Zeros the scale prior to a weighing. Holds the weight value of the patient on the display until the button is HOLD/RELEASE pressed again to clear the value. Also moves the cursor from left to right ►... - Page 22 The Tare Function automatically performs this subtraction. The 2500KL and 2600KL scales allow tare weight to be entered manually by using the keypad, or automatically, as outlined in this section.
- Page 23 Exercise caution when transporting patient onto and off of the scale. 5. Once a weight has been displayed, while the patient is still on the scale, Health o meter recommends performing a second weighing by pressing the REWEIGH button.
- Page 24 5. Once a weight has been displayed, while the patient is still on the scale, Health o meter recommends performing a second weighing by pressing the REWEIGH button.
-
Page 25: Maintenance
Maintenance The following pages provide instructions for maintenance, cleaning, calibrating, and troubleshooting for the 2500KL or 2600KL scale. Maintenance operations other than those described in this manual should be performed by qualified service personnel. Caution: Before first use, or after long periods of non-use, check the scale for proper operation and function. -
Page 26: Calibration
These scales have been factory calibrated, and does not require calibration prior to use. For maintenance, the scale can be calibrated. Calibration of your 2500KL or 2600KL scale is performed using kilograms (kg) or pounds (lb), according to the units of measure used upon entering into the calibration path. -
Page 27: Troubleshooting
TROUBLESHOOTING Troubleshooting Before contacting service personnel, refer to the following instructions to check and to correct any failures. Symptom Possible Cause Corrective Action Scale does not turn on 1. Dead Battery 1. Replace batteries 2. Faulty electrical outlet 2. Use a different outlet 3. -
Page 28: Warranty
What does the Warranty Cover? Health o meter® Professional scales are warranted from date of purchase against defects of materials or in workmanship for a period of two (2) years. If product fails to function properly, return the product, freight prepaid and properly packed to Pelstar, LLC (see “To Get Warranty Service”, below, for instructions).
