Bryant 580J Submittal Data

580J

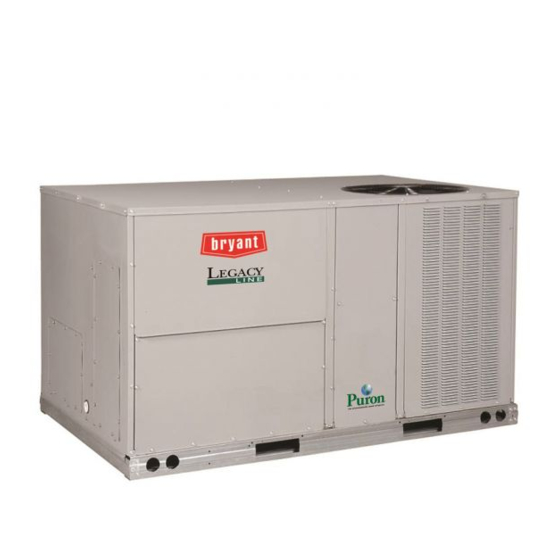

SINGLE PACKAGE ROOFTOP GAS HEATING/ELECTRIC COOLING
HORIZONTAL AIR FLOW UNITS, WITH PURON
15, 17.5, 20, 25 TONS - - (MODEL SIZES 18, 21, 25, 29)
Certified to ISO 9001
Base Unit
S Puron (R- - 410A) HFC refrigerant
S Two- - stage cooling capacity control on all models
S EER's up to 10.8
S IEER's:
— up to 11.0 with single speed indoor fan motor
— up to 12.7 with 2 speed/VFD indoor fan motor
S Designed in accordance with Underwriters'
Laboratories Std 1995
S Listed by ETL and ETL- - Canada
S ASHRAE 90.1 energy compliant
S Rated in accordance with AHRI Standards 340/360
S Non- - corrosive composite sloping design; side or center
drain condensate pan. Meets ASHRAE Standard 62
S Standard cooling operating range from 35_F up to
115_F (2_C up to 46_C)
S Dedicated horizontal air flow models. No special kits
required.
S Two- - inch disposable return air filters on slide out track
S Provisions for thru- - the- - bottom power entry capability
as standard in an environmentally protected area
S Single point gas and electric connections
S 24- - volt control circuit protected with resettable circuit
breaker and 75- - VA transformer
S Permanently lubricated evaporator- - fan motor
S Blower bearing extended lubrication line on all sizes
S Totally enclosed condenser motors with permanently
lubricated bearings
S Low- - pressure and high- - pressure switch protection
R
(R- - 410A) REFRIGERANT
Submittal Data
Use of the AHRI Certified
TM Mark indicates a
manufacturer's
participation in the
program For verification
of certification for individual
products, go to
www.ahridirectory.org.

STANDARD FEATURES

DESCRIPTION
580J (model sizes 18, 21, 25, 29) units are single- - packaged
dedicated horizontal air flow electric cooling, gas heating
units that are pre- - wired and pre- - charged with Puron
(R- - 410A) HFC refrigerant. The units are factory tested in
both heating and cooling modes. These units meet the latest
ASHRAE 90.1 efficiency levels.
S Full perimeter base rail with built- - in rigging adapters
and fork truck slots
S Central terminal board facilitating simple safety circuit
troubleshooting and simplified control box arrangement
S High performance belt drive motor with variable pitch
pulleys, quick adjust belt system and fan belt protection
Cabinet
S Access panels with easy grip handles
S Innovative, easy starting, no- - strip screw feature on unit
access panels
S Pre- - painted exterior panels and primer- - coated interior
panels tested to 500 hours salt spray protection
S Fully insulated cabinet
Refrigerant System
S TXV refrigerant metering device on each circuit
S Liquid line filter drier on each circuit
S Scroll compressors with internal line- - break overload
protection
S Copper tube, aluminum fin evaporator coil
S Round Tube/Plate Fin (RTPF) condenser coils on all
model sizes.
Gas Heat
S Gas efficiencies up to 81%
S Inducted draft combustion
S Redundant gas valve, with up to 2 stages of heating
S Solid- - state electronic direct spark ignition system
S Exclusive IGC anti- - cycle protection for gas heat operation
S Flame roll- - out safety protector
