Gas heat/electric cooling packaged rooftop 3 to 15 nominal tons
Hide thumbs Also See for LEGACY 580J:
Table of Contents

Advertisement

Quick Links

580J
3 TO 15 NOMINAL TONS

Product Data

C08515

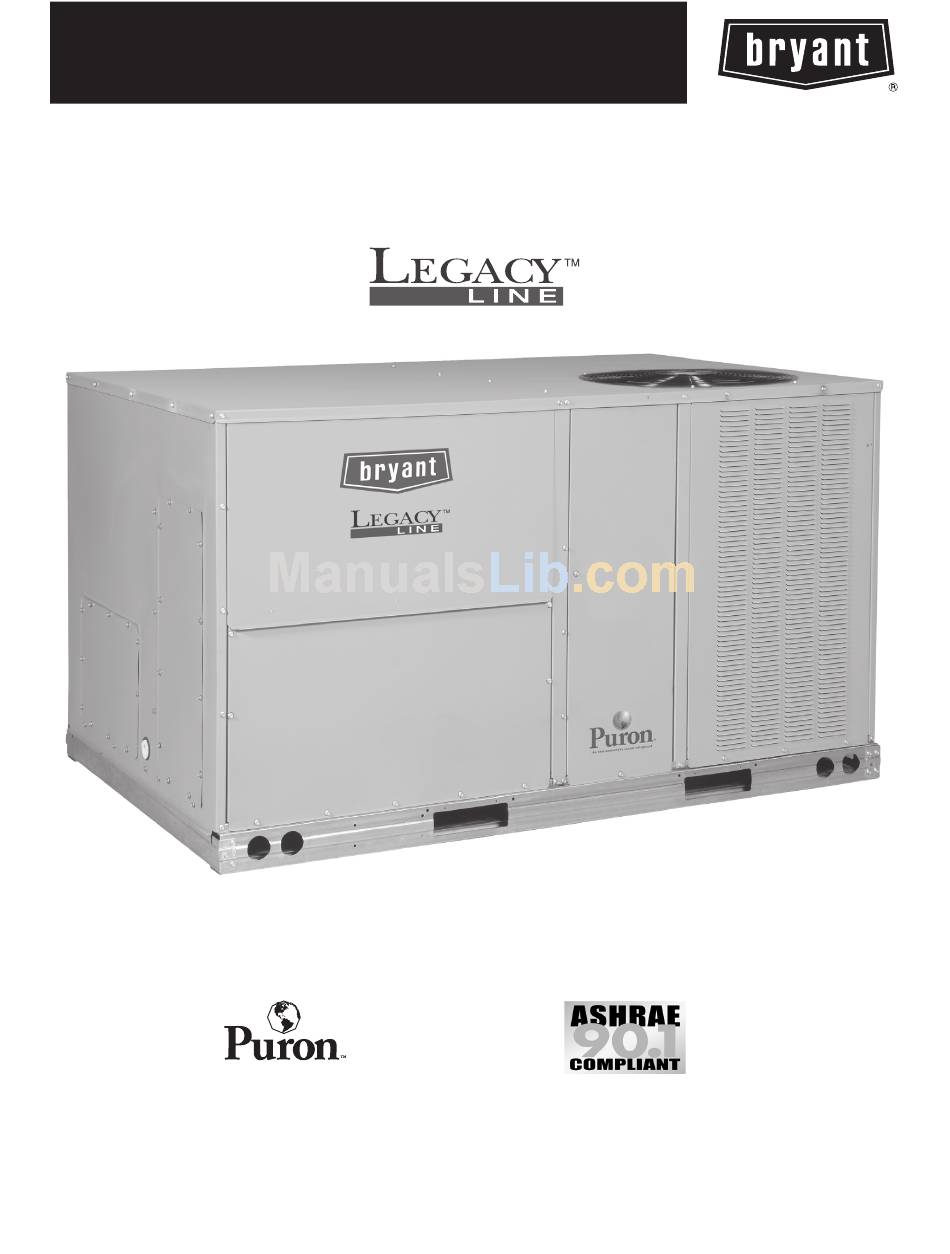

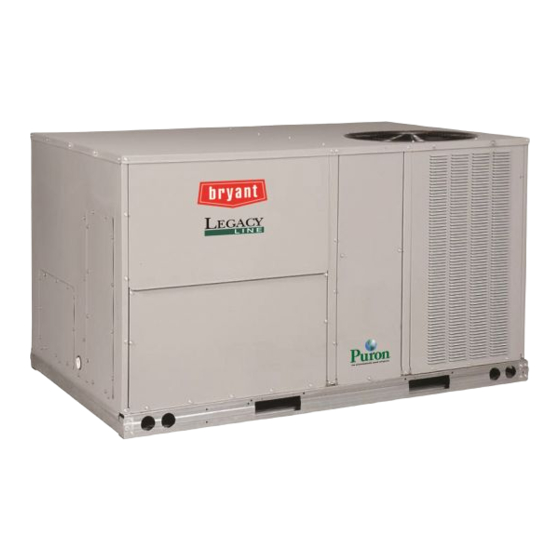

(Unit shown with optional louvered hail guard.)
the environmentally sound refrigerant

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LEGACY 580J and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bryant LEGACY 580J

Summary of Contents for Bryant LEGACY 580J

  • Page 1: Product Data

    580J GAS HEAT/ELECTRIC COOLING PACKAGED ROOFTOP 3 TO 15 NOMINAL TONS Product Data C08515 (Unit shown with optional louvered hail guard.) the environmentally sound refrigerant...

  • Page 2: Table Of Contents

    Most low voltage connections are made to the same board and make it easy to find what you’re looking for and easy to access it. Bryant rooftops have high and low pressure switches, a filter drier, and 2- - in (51mm) filters standard.

  • Page 3: Features And Benefits

    S Up to 28% lighter than similar industry units. Lighter rooftops make easier replacement jobs. S Utility connections are the same because 3 - - 12.5 ton units fit on existing Bryant rooftop curbs. This saves time and money on replacement jobs.

  • Page 4: Model Number Nomenclature

    MODEL NUMBER NOMENCLATURE 5 8 0 J E 0 6 A 0 7 2 A 1 A 0 A A ____________ Unit Type 580J = Cooling/Gas Heat RTU Legacy Series w/Puron Refrigerant Voltage E = 460--- 3--- 60 J = 208/230--- 1--- 60 P = 208/230--- 3--- 60 T = 575--- 3--- 60 Cooling Tons...
  • Page 5 Table 1 – FACTORY- - INSTALLED OPTIONS AND FIELD- - INSTALLED ACCESSORIES CATEGORY Thru ---the ---base electrical or gas---line connections Cabinet Supply Duct Cover Cu/Cu indoor and/or outdoor coils Pre ---coated outdoor coils Coil Options Premium, E ---coated outdoor coils Humidity Control Perfect Humidity System (3 --- 12.5 ton) Condenser Protection...

  • Page 6: Factory Options And/Or Accessories

    Not required with RTU Open, or authorized commercial thermostats. Motorized 2- - Position Damper The new Bryant 2- - position, motorized outdoor air damper admits up to 100% outside air. Using reliable, gear- - driven technology, the 2- - position damper opens to allow...
  • Page 7 Winter Start Kit The winter start kit by Bryant extends the low ambient limit of your rooftop to 25_F (- - 4_C). The kit bypasses the low pressure switch, preventing nuisance tripping of the low pressure switch.

  • Page 8: Ahri Cooling Rating Tables

    Table 2 – AHRI COOLING RATING TABLE Nom. Cooling Unit Capacity Stages (tons) 12.5 LEGEND AHRI --- Air Conditioning, Heating and Refrigeration Institute Test Standard ASHRAE --- American Society of Heating, Refrigerating and Air Conditioning, Inc. --- Energy Efficiency Ratio IEER --- Integrated Energy Efficiency Ratio SEER...
  • Page 9 Table 3 – HEATING RATING TABLE - - NATURAL GAS & PROPANE AL/SS HEAT EXCHANGER Units Gas Heat INPUT / OUTPUT STAGE 1 (MBH) HIGH HIGH HIGH 82 / 66 HIGH HIGH 120 / 96 HIGH 120 / 96 HIGH 120 / 96 120 / 98 HIGH...

  • Page 10: Sound Performance Table

    3. A ---weighted sound ratings filter out very high and very low frequencies, to better approximate the response of “average” human ear. A ---weighted measurements for Bryant units are taken in accordance with AHRI stand- ard 270---2008. THERMAL TEMP RISE...
  • Page 11 Table 6 – MINIMUM - - MAXIMUM AIRFLOW RATINGS - - NATURAL GAS & PROPANE UNIT HEAT LEVEL 580J**04 HIGH 580J**05 HIGH 580J**06 HIGH 580J**07 HIGH 580J**08 HIGH 580J**09 HIGH 580J**12 HIGH 580J**14 HIGH 580J**16 HIGH COOLING MINIMUM MAXIMUM 1500 1200 2000 1500...

  • Page 12: Physical Data

    Table 7 – PHYSICAL DATA Refrigeration System # Circuits / # Comp. / Type Puronr refrig. (R--- 410A) (lbs--- oz) Operating charge (lbs--- oz) --- Perfect Humidity Unit Metering Device High--- press. Trip / Reset (psig) Low--- press. Trip / Reset (psig) Compressor Capacity Staging (%) Evap.
  • Page 13 Table 8 – PHYSICAL DATA Gas Connection # of Gas Valves Nat. gas supply line press (in. w.g.) / (PSIG) LP supply line press (in. w.g.) / (PSIG) Heat Anticipator setting (Amps) Natural Gas Heat # of stages / # of burners (total) Connection Size Rollout switch opens / closes Temperature Rise...
  • Page 14 Table 9 – PHYSICAL DATA Refrigeration System # Circuits / # Comp. / Type RTPF models R--- 410a charge A/B (lbs --- oz) Alternate (MCHX) R--- 410a charge A/B (lbs --- oz) Alternate (Perfect Humidity) R--- 410a charge A/B (lbs --- oz) Metering device High--- press.
  • Page 15 Table 10 – PHYSICAL DATA Gas Connection Nat. gas supply line press (in. w.g.) / (PSIG) Heat Anticipator setting (Amps) Natural Gas Heat Liquid Propane Heat Low NOx Gas Heat (HEATING) # of Gas Valves LP supply line press (in. w.g.) / (PSIG) 11 --- 13 / 0.40 --- 0.47 1st stage 2nd stage...
  • Page 16 Table 11 – PHYSICAL DATA Refrigeration System # Circuits / # Comp. / Type RTPF models R---410a charge A/B (lbs --- oz) Alternate (MCHX) R---410a charge A/B (lbs --- oz) Alternate (Perfect Humidity) R---410a charge A/B (lbs --- oz) High ---press. Trip / Reset (psig) Low---press.
  • Page 17 Table 12 – PHYSICAL DATA Gas Connection Nat. gas supply line press (in. w.g.) / (PSIG) LP supply line press (in. w.g.) / (PSIG) Heat Anticipator setting (Amps) Natural Gas Heat # of stages / # of burners (total) Rollout switch opens / closes # of stages / # of burners (total) Rollout switch opens / closes # of stages / # of burners (total)

  • Page 18: Curbs & Weights Dimensions

    CURBS & WEIGHTS DIMENSIONS - - 580J 04- -07 C101225 Fig. 1 - - Dimensions 580J 04- -07...
  • Page 19 CURBS & WEIGHTS DIMENSIONS - - 580J 04- -07 (cont.) DIMENSION 48--- in (1219 mm) 18--- in (457 mm) 18--- in (457 mm) 12--- in (305 mm) 42--- in (1067 mm) 36--- in (914 mm) Special 36--- in (914 mm) 18--- in (457 mm) 48--- in (1219 mm) 42--- in (1067 mm)
  • Page 20 CURBS & WEIGHTS DIMENSIONS - - 580J 04- -07 (cont.) D ALT CONNECTOR DRAIN PKG. ACCY. HOLE CRBTMPWR001A01 1’-9 ” 1’-4” ” [551] [406] [44.5] CRBTMPWR003A01 CONTROL ACCESSORY POWER POWER ” [19] ” [19] ” [12.7] ” [12.7] ” [12.7] Fig.
  • Page 21 CURBS & WEIGHTS DIMENSIONS - - 580J 08- -12 C101217 Fig. 5 - - Dimensions 580J 08- -12...
  • Page 22 CURBS & WEIGHTS DIMENSIONS - - 580J 08- -12 (cont.) DIMENSION CONDITION 48--- in (1219 mm) Unit disconnect is mounted on panel 36--- in (914 mm) If dimension--- B is 12--- in (305 mm) 18--- in (457 mm) No disconnect, convenience outlet option 18--- in (457 mm) Recommended service clearance (use electric screwdriver) 12--- in (305 mm)
  • Page 23 CURBS & WEIGHTS DIMENSIONS - - 580J 08- -14 ROOFCURB UNIT SIZE ACCESSORY 1’ - 2” CRRFCURB003A01 (356) 580J 580J * 08 – 08 – 14 2’ - 0” CRRFCURB004A01 (610) Fig. 8 - - Roof Curb Details TYPICAL CORNER FASTENING DEVICE C10481...
  • Page 24 CURBS & WEIGHTS DIMENSIONS - - 580J 14 C101223 Fig. 9 - - Dimensions 580J- -14...
  • Page 25 CURBS & WEIGHTS DIMENSIONS - - 580J 14 (cont.) DIMENSION CONDITION 48--- in (1219 mm) Unit disconnect is mounted on panel 36--- in (914 mm) If dimension--- B is 12--- in (305 mm) 18--- in (457 mm) No disconnect, convenience outlet option 18--- in (457 mm) Recommended service clearance (use electric screwdriver) 12--- in (305 mm)
  • Page 26 CURBS & WEIGHTS DIMENSIONS - - 580J 16 C101231...
  • Page 27 CURBS & WEIGHTS DIMENSIONS - - 580J 16 (cont.) C101232...
  • Page 28 CURBS & WEIGHTS DIMENSIONS - - 580J 16 C10772...
  • Page 29 OPTIONS & ACCESSORY WEIGHTS OPTION / ACCESSORY Perfect Humidity Power Exhaust --- vertical Power Exhaust --- horizontal EconoMi$er(IV or 2) Two Position damper Manual Dampers Medium Gas Heat High Gas Heat Hail Guard (louvered) Cu/Cu Condenser Coil Cu/Cu Condenser and Evaporator Coils Roof Curb (14---in.

  • Page 30: Application Data

    Bryant representative for assistance. Motor limits, Brake horsepower (BHP): Due to internal design of Bryant units, the air path, and specially designed motors, the full horsepower (maximum continuous BHP) band, as listed in Table 8 and 10, can be used with the utmost confidence.
  • Page 31 APPLICATION DATA (cont.) Low ambient applications The optional Bryant economizer can adequately cool your space by bringing in fresh, cool outside air. In fact, when so equipped, accessory low ambient kit may not be necessary. In low ambient conditions, unless the outdoor air is excessively humid or contaminated, economizer based “free cooling”...

  • Page 32: Selection Procedure

    MCA = 30.5 amps & MOCP = 45.0 amps Min. disconnect size: FLA = 30 & LRA = 157. NOTES: 1. Selection software by Bryant saves time by performing many of the steps above. Contact your Bryant sales representative for assistance.
  • Page 33 Table 13 – COOLING CAPACITIES 580J*04A (RTPF) EAT (db) 28.1 28.1 24.4 28.1 30.3 30.3 22.6 26.8 35.5 35.5 19.5 23.7 39.0 39.0 15.3 19.5 41.4 16.0 30.2 30.2 26.3 30.2 31.9 31.9 24.6 29.4 36.7 36.7 20.6 25.4 40.1 40.1 15.7 20.5...
  • Page 34 Table 14 – COOLING CAPACITIES 580J04 (3 TONS) --- UNIT WITH PERFECT HUMIDITY SYSTEM IN SUBCOOLING MODE 80 dry bulb Temp (F) Air Ent 72 wet bulb Condenser (Edb) 1200 40.6 43.2 21.6 23.9 37.0 39.6 17.7 20.2 33.5 36.0 13.7 16.6 29.9...
  • Page 35 Table 15 – COOLING CAPACITIES 580J*05A (RTPF) EAT (db) 43.1 43.1 31.2 36.4 47.4 47.4 25.9 31.2 51.1 51.1 20.1 25.5 53.3 20.8 41.9 41.9 36.6 41.9 44.6 44.6 33.4 39.4 48.7 48.7 27.3 33.2 52.2 52.2 20.6 26.7 54.1 21.5 44.0 44.0...
  • Page 36 Table 16 – COOLING CAPACITIES 580J05 (4 TONS) --- UNIT WITH PERFECT HUMIDITY SYSTEM IN SUBCOOLING MODE 80 dry bulb Temp (F) Air Ent 72 wet bulb Condenser (Edb) 1200 1600 52.5 55.9 22.6 25.5 48.7 52.2 18.0 21.3 44.9 48.4 13.4 17.2...
  • Page 37 Table 17 – COOLING CAPACITIES 580J*06A (RTPF) EAT (db) 52.9 52.9 45.8 52.9 56.2 56.2 41.8 49.7 62.4 62.4 34.8 42.8 68.2 68.2 27.2 35.2 71.1 28.4 56.5 56.5 48.9 56.5 58.5 58.5 45.2 54.3 64.3 64.3 36.9 46.1 69.5 69.5 27.8 36.9...
  • Page 38 Table 18 – COOLING CAPACITIES 580J06 (5 TONS) --- UNIT WITH PERFECT HUMIDITY SYSTEM IN SUBCOOLING MODE 80 dry bulb Temp (F) Air Ent 72 wet bulb Condenser (Edb) 1750 2000 73.1 78.7 35.3 37.2 67.6 71.2 27.9 30.0 62.1 63.8 20.5 22.9...
  • Page 39 Table 19 – COOLING CAPACITIES 580J*07A (RTPF) EAT (db) 64.9 64.9 56.6 64.9 68.7 68.7 51.7 61.0 75.6 75.6 42.8 52.2 82.6 82.6 33.5 42.8 87.5 35.0 68.9 68.9 60.1 68.9 70.9 70.9 55.6 66.3 77.8 77.8 45.4 56.1 84.5 84.5 34.5 45.2...
  • Page 40 Table 20 – COOLING CAPACITIES 580J07 (6 TONS) --- UNIT WITH PERFECT HUMIDITY SYSTEM IN SUBCOOLING MODE 80 dry bulb Temp (F) Air Ent 72 wet bulb Condenser (Edb) 2100 2400 86.7 89.9 40.1 41.8 79.5 82.6 32.1 34.0 72.4 75.3 24.1 26.3...
  • Page 41 Table 21 – COOLING CAPACITIES 580J*08A (RTPF) EAT (db) 81.2 81.2 70.5 81.2 86.9 86.9 63.6 74.9 95.2 95.2 52.8 64.2 103.5 103.5 41.5 53.1 109.6 43.7 85.9 85.9 74.6 85.9 89.6 89.6 68.1 81.1 97.9 97.9 55.7 68.7 106.0 106.0 42.7 55.8...
  • Page 42 Table 22 – COOLING CAPACITIES 580J*08D (RTPF & Novation) EAT (db) 77.4 77.4 66.9 77.4 82.2 82.2 60.8 72.4 90.1 90.1 50.2 61.8 98.0 98.0 39.1 50.7 104.3 41.7 82.1 82.1 71.0 82.1 84.9 84.9 65.4 78.6 92.5 92.5 53.0 66.3 100.4 100.4...
  • Page 43 Table 23 – COOLING CAPACITIES 580J08 COOLING CAPACITIES, UNIT WITH PERFECT HUMIDITY SYSTEM IN SUBCOOLING MODE 2250/0.05 TEMP (F) AIR ENT CONDENSER (Edb) 103.05 93.02 43.66 55.34 4.90 95.39 85.83 36.42 48.47 5.49 87.48 78.44 28.98 41.46 6.16 79.35 70.83 21.34 34.26 6.93...
  • Page 44 Table 24 – COOLING CAPACITIES 580J*09A (RTPF) EAT (db) 88.1 88.1 76.4 88.1 93.9 93.9 69.4 82.3 103.8 103.8 57.8 70.7 113.1 113.1 45.2 58.3 119.9 47.9 93.6 93.6 81.1 93.6 97.5 97.5 74.7 89.5 106.7 106.7 61.0 75.8 115.8 115.8 46.5 61.3...
  • Page 45 Table 25 – COOLING CAPACITIES 580J*09D (RTPF) EA (dB) 89.7 89.7 77.8 89.7 94.3 94.3 71.0 84.4 105.0 105.0 59.0 72.6 115.9 115.9 46.4 60.0 123.7 49.3 95.3 95.3 82.6 95.3 97.9 97.9 76.7 92.2 108.5 108.5 62.8 78.4 119.1 119.1 47.9 63.5...
  • Page 46 Table 26 – COOLING CAPACITIES 580J09 COOLING CAPACITIES, UNIT WITH PERFECT HUMIDITY SYSTEM IN SUBCOOLING MODE 2550/0.04 TEMP (F) AIR ENT CONDENSER (Edb) 119.20 107.44 50.63 63.94 5.67 110.40 99.22 42.39 56.16 6.33 101.37 90.79 33.97 48.22 7.08 92.04 82.06 25.31 40.06 7.94...
  • Page 47 Table 27 – COOLING CAPACITIES 580J*12A (RTPF) EAT (db) 106.3 106.3 92.2 106.3 112.5 112.5 83.8 99.5 123.5 123.5 69.2 85.0 134.3 134.3 53.8 69.6 142.4 56.8 112.9 112.9 97.9 112.9 116.3 116.3 90.2 108.2 126.9 126.9 73.2 91.3 137.5 137.5 55.3 73.4...
  • Page 48 Table 28 – COOLING CAPACITIES 580J*12D (RTPF & Novation) EAT (db) 107.6 107.6 93.2 107.6 113.6 113.6 84.6 100.6 124.4 124.4 69.7 85.7 135.8 135.8 54.3 70.4 145.3 57.8 114.2 114.2 98.9 114.2 117.2 117.2 91.1 109.5 127.8 127.8 73.8 92.3 139.4 139.4...
  • Page 49 Table 29 – COOLING CAPACITIES 580J12 COOLING CAPACITIES, UNIT WITH PERFECT HUMIDITY SYSTEM IN SUBCOOLING MODE 3000/0.04 TEMP (F) AIR ENT CONDENSER (Edb) 142.85 129.44 58.38 74.88 7.19 132.33 119.68 48.44 65.56 7.98 121.41 109.52 38.19 55.92 8.87 110.04 98.92 27.59 45.94 9.86...
  • Page 50 Table 30 – COOLING CAPACITIES 580J*14D (RTPF & Novation) EAT (db) 127.6 127.6 110.3 126.6 136.1 136.1 96.6 112.8 146.2 146.2 78.5 94.4 155.9 155.9 60.1 76.6 163.0 62.0 132.2 132.2 115.0 132.2 139.6 139.6 102.5 120.8 149.5 149.5 81.8 99.6 159.0 159.0...
  • Page 51 Table 31 – COOLING CAPACITIES 580J14 COOLING CAPACITIES, UNIT WITH PERFECT HUMIDITY SYSTEM IN SUBCOOLING MODE 3750/0.02 TEMP (F) AIR ENT CONDENSER (Edb) 183.66 166.86 79.39 100.52 9.82 172.71 156.78 69.03 90.92 10.82 10.63 161.37 146.24 58.44 81.04 11.92 11.73 149.57 135.32 47.57...
  • Page 52 Table 32 – COOLING CAPACITIES 580J*16D (RTPF) EA (dB) 156.6 156.6 134.7 154.9 166.7 166.7 122.8 144.9 184.1 184.1 101.6 123.7 200.3 200.3 78.7 101.1 211.4 82.2 165.2 165.2 143.5 165.2 172.3 172.3 131.6 156.6 189.5 189.5 107.2 132.4 205.0 205.0 80.9 106.1...

  • Page 53: Static Pressure Adders

    Table 33 – STATIC PRESSURE ADDERS (Factory Options and/or Accessories) PERFECT HUMIDITY CFM (in. wg) 1000 1250 3 Tons 0.04 0.052 4 Tons 0.106 5 Tons 6 Tons CFM (in. wg) 2250 2500 2750 3000 7.5 Tons 0.12 0.14 0.16 0.19 8.5 Tons 0.11...
  • Page 54 2500 2000 1500 1000 0.05 0.15 0.25 RETURN DUCT STATIC PRESSURE (in. wg) Fig. 15 - - Barometric Relief Flow Capacity 0.00 0.10 0.20 0.30 0.40 0.50 STATIC PRESSURE DELTA (in. wg) Fig. 16 - - Outdoor Air Damper Leakage 6000 5000 4000...
  • Page 55 5. For information on the electrical properties of Bryant motors, please see the Electrical information section of this book. 6. For more information on the performance limits of Bryant motors, see the application data section of this book. 7. The EPACT (Energy Policy Act of 1992) regulates energy requirements for specific types of indoor fan motors. Motors...

  • Page 56: Fan Performance

    Table 34 – 580J**04 Field Supplied Drive 0.14 0.16 1050 0.18 1125 0.21 1200 0.23 1275 0.27 1350 0.30 1425 0.34 1500 0.38 Medium Static Option 1019 0.64 1084 1036 0.69 1101 1050 1053 0.74 1118 1125 1071 0.79 1135 1200 1089 0.84...
  • Page 57 Table 36 – 580J**04 Field Supplied Drive 0.14 0.16 1050 0.18 1125 0.21 1200 0.23 1275 0.27 1350 0.30 1425 0.34 1500 0.38 Medium Static Option 1019 0.64 1084 1036 0.69 1101 1050 1053 0.74 1118 1125 1071 0.79 1135 1200 1089 0.84...
  • Page 58 Table 38 – 580J**05 Standard Static Option 1200 0.23 1300 0.28 1400 0.33 1500 0.38 1600 0.45 1700 0.52 1800 0.59 1900 0.68 2000 0.77 1006 Medium Static Option 1200 1089 0.84 1153 1300 1113 0.92 1177 1400 1138 1.01 1201 1500 1163...
  • Page 59 Table 40 – 580J**05 Standard Static Option 1200 0.23 1300 0.28 1400 0.33 1500 0.38 1600 0.45 1700 0.52 1800 0.59 1900 0.68 2000 0.77 1006 Medium Static Option 1200 1089 0.84 1153 1300 1113 0.92 1177 1400 1138 1.01 1201 1500 1163...
  • Page 60 Table 42 – 580J**06 1500 0.39 1625 0.48 1750 0.59 1875 0.70 1038 2000 1001 0.84 1085 2125 1053 0.99 1133 2250 1106 1.16 1182 2375 1159 1.34 1231 2500 1500 1247 0.98 1320 1625 1276 1.10 1348 1750 1308 1.22 1377 1875...
  • Page 61 Table 44 – 580J**06 1500 0.39 1625 0.48 1750 0.59 1875 0.70 1038 2000 1001 0.84 1085 2125 1053 0.99 1133 2250 1106 1.16 1182 2375 1159 1.34 1231 2500 1212 1.55 1281 1500 1247 0.98 1320 1625 1276 1.10 1348 1750 1308...
  • Page 62 Table 46 – 580J**07 Field Supplied Drive 1800 0.64 1010 0.78 1950 1065 2100 1032 0.95 1120 2250 1093 1.14 1177 2400 1155 1.36 1234 2550 1217 1.60 1293 2700 1280 1.87 1352 2850 1343 2.17 1412 3000 1406 2.50 1472 Standard Static Option 1800...
  • Page 63 Table 48 – 580J**08 2250 0.52 2438 0.62 2625 0.74 2813 0.88 3000 1.03 3188 1.21 3375 1.40 3563 1.61 3750 1.85 Medium Static Option 2250 1.81 2438 1.96 2625 2.12 2813 2.31 3000 2.51 3188 2.74 3375 2.99 3563 3.26 3750 3.55...
  • Page 64 Table 50 – 580J**09 Field---Supplied Drive 2550 0.48 2763 0.58 2975 0.70 3188 0.84 3400 1.00 3613 1.17 3825 1.37 4038 1.59 4250 1.83 Medium Static Option 2550 1.21 2763 1.36 2975 1.52 3188 1.70 3400 1.90 3613 2.13 3825 2.37 4038 2.63...
  • Page 65 Table 52 – 580J**12 Field Supplied Drive 3000 0.70 3250 0.85 3500 1.03 3750 1.23 4000 1.45 4250 1.71 4500 1.99 4750 2.31 5000 2.66 3000 1.70 3250 1.93 3500 2.18 3750 2.46 4000 1011 2.76 4250 1037 3.09 4500 1064 3.46 4750...
  • Page 66 Table 54 – 580J**14 3438 0.98 3750 1.23 4063 1.52 4375 1.85 4688 2.23 5000 2.66 5313 3.15 5625 3.69 5938 1009 4.30 6250 Medium Static Option 3438 2.12 3750 2.46 4063 1017 2.84 4375 1050 3.27 4688 1084 3.75 5000 1120 4.28...
  • Page 67 Table 56 – 580J*16 4500 0.98 4875 1.18 5250 1.42 5625 1.68 6000 1.98 6375 2.31 6750 2.68 7125 3.09 7500 3.53 4500 2.56 4875 2.84 5250 3.16 5625 3.52 6000 3.92 6375 4.36 6750 4.84 7125 5.36 7500 5.93 NOTE: For more information, see General Fan Performance Notes.
  • Page 68 Table 58 – PULLEY ADJUSTMENT MOTOR/DRIVE UNIT COMBO Standard Static Medium Static 1175 High Static Standard Static Medium Static 1175 High Static 1466 Standard Static Medium Static 1175 High Static Standard Static Medium Static 1175 High Static 1466 Standard Static 1175 Medium Static 1466...

  • Page 69: Electrical Information

    ELECTRICAL INFORMATION Table 59 – 580J*04A VOLTAGE COMP (ea) V ---Ph---Hz RANGE 208--- 1--- 60 16.6 230--- 1--- 60 16.6 208--- 3--- 60 10.4 230--- 3--- 60 10.4 460--- 3--- 60 575--- 3--- 60 Table 60 – 580J*05A VOLTAGE COMP (ea) V ---Ph---Hz RANGE 208--- 1--- 60...
  • Page 70 ELECTRICAL INFORMATION (cont.) Table 62 – 580J*07A VOLTAGE COMP (ea) RANGE V ---Ph---Hz 208--- 3--- 60 19.0 230--- 3--- 60 19.0 460--- 3--- 60 575--- 3--- 60 Table 63 – 580J*08A VOLTAGE COMP (ea) RANGE V ---Ph---Hz 208--- 3--- 60 25.0 230--- 3--- 60 25.0...
  • Page 71 ELECTRICAL INFORMATION (cont.) Table 65 – 580J*09A VOLTAGE COMP (ea) RANGE V ---Ph---Hz 208--- 3--- 60 29.5 230--- 3--- 60 29.5 460--- 3--- 60 14.7 575--- 3--- 60 12.2 Table 66 – 580J*09D VOLTAGE COMP (Cir 1) RANGE V ---Ph---Hz 208--- 3--- 60 14.5 230--- 3--- 60...
  • Page 72 ELECTRICAL INFORMATION (cont.) Table 68 – 580J*12D VOLTAGE COMP (Cir 1) RANGE V ---Ph---Hz 208--- 3--- 60 15.6 230--- 3--- 60 15.6 460--- 3--- 60 575--- 3--- 60 Table 69 – 580J*14D VOLTAGE COMP (Cir 1) RANGE V ---Ph---Hz 208--- 3--- 60 19.0 230--- 3--- 60 19.0...

  • Page 73: Mca / Mocp

    Table 71 – MCA/MOCP DETERMINATION NO C.O. OR UNPWRD C.O. COMBUSTION NOM. FAN MOTOR V ---Ph---Hz TYPE 208/230--- 1--- 60 0.48 208/230--- 3--- 60 0.48 HIGH 460--- 3--- 60 0.25 HIGH 575--- 3--- 60 0.24 HIGH 208/230--- 1--- 60 0.48 208/230--- 3--- 60 0.48 HIGH...
  • Page 74 TABLE 67 (cont.) MCA/MOCP DETERMINATION NO C.O. OR UNPWRD C.O. COMBUSTION NOM. IFM TYPE FAN MOTOR V-- Ph -- Hz 208/230--- 3--- 60 0.48 HIGH 460--- 3--- 60 0.25 HIGH 575--- 3--- 60 0.24 HIGH 208/230--- 3--- 60 0.48 HIGH 460--- 3--- 60 0.25 HIGH...
  • Page 75 Table 72 – MCA/MOCP DETERMINATION W/ PWRD C.O. COMBUSTION NOM. FAN MOTOR V ---Ph---Hz TYPE 208/230--- 1--- 60 0.48 208/230--- 3--- 60 0.48 HIGH 460--- 3--- 60 0.25 HIGH 575--- 3--- 60 0.24 HIGH 208/230--- 1--- 60 0.48 208/230--- 3--- 60 0.48 HIGH 460--- 3--- 60...
  • Page 76 TABLE 68 (cont.) MCA/MOCP DETERMINATION W/ PWRD C.O. COMBUSTION NOM. IFM TYPE FAN MOTOR V ---Ph---Hz 208/230--- 3--- 60 0.48 HIGH 460--- 3--- 60 0.25 HIGH 575--- 3--- 60 0.24 HIGH 208/230--- 3--- 60 0.48 HIGH 460--- 3--- 60 0.25 HIGH 575--- 3--- 60 0.24...

  • Page 77: Typical Wiring Diagrams

    TYPICAL WIRING DIAGRAMS C08518B Fig. 24 - - 1- -Stage Cooling Typical Power Diagram...
  • Page 78 C08577B Fig. 25 - - 2- -Stage Cooling Typical Power Diagram...

  • Page 81: Sequence Of Operation

    General The sequence below describes the sequence of operation for an electromechanical unit with and without a factory installed EconoMi$er IV (called “economizer” in this sequence). For information regarding a direct digital controller, start- - up, troubleshooting manual for the applicable controller. Electromechanical units with no economizer Cooling —...
  • Page 82 SEQUENCE OF OPERATION (cont.) On the initial power to the EconoMi$er IV control, it will take the damper up to 2 1/2 minutes before it begins to position itself. After the initial power- - up, further changes in damper position can take up to 30 seconds to initiate. Damper movement from full closed to full open (or vice versa) will take between 1 1/2 and 2 1/2 minutes.
  • Page 83 RH2.x COND COIL COMP OUTDOOR AIR CLOSED VALVE OPEN VALVE Subcooling Mode (Reheat 1) - - Perfect Humidity System (580J04- -16) RH2.x COND COIL COMP OUTDOOR AIR CLOSED VALVE OPEN VALVE Hot Gas Reheat Mode (Reheat2) - - Perfect Humidity System (580J04- -16) RH1.x PERFECT HUMIDITY COIL...

  • Page 84: Guide Specifications

    Polyswitches will return to normal when the “trip” condition clears. 11. Shall have a battery back- - up capable of a minimum of 10,000 hours of data and time clock retention during power outages. 12. Shall have built- - in support for Bryant technician tool.
  • Page 85 13. Shall include an EIA- - 485 protocol communication port, an access port for connection of either a computer or a Bryant technician tool, an EIA- - 485 port for network communication to intelligent space sensors and displays, and a port to connect an optional LonWorks communications card.
  • Page 86 4. Unit shall be installed in accordance with the manufacturer’s instructions. 5. Unit must be selected and installed in compliance with local, state, and federal codes. 23 81 19.13.B. Quality Assurance 1. Unit meets ASHRAE 90.1 minimum efficiency requirements. 2. Unit shall be rated in accordance with AHRI Standards 210/240 and 340/360. 3.
  • Page 87 5. Base Rail a. Unit shall have base rails on a minimum of 2 sides. b. Holes shall be provided in the base rails for rigging shackles to facilitate maneuvering and overhead rigging. c. Holes shall be provided in the base rail for moving the rooftop by fork truck. d.
  • Page 88 3. Standard Heat Exchanger construction a. Heat exchanger shall be of the tubular- - section type constructed of a minimum of 20- - gauge steel coated with a nominal 1.2 mil aluminum- - silicone alloy for corrosion resistance. b. Burners shall be of the in- - shot type constructed of aluminum- - coated steel. c.
  • Page 89 g. Humidity and water immersion resistance shall be up to minimum 1000 and 250 hours respectively (ASTM D2247- - 92 and ASTM D870- - 92). h. Corrosion durability shall be confirmed through testing to be no less than 1000 hours salt spray per ASTM B117- - 90.
  • Page 90 c. Shall have a maximum continuous bhp rating for continuous duty operation; no safety factors above that rating shall be required. 2. Belt- - driven Evaporator Fan: a. Belt drive shall include an adjustable pitch motor pulley. b. Shall use sealed, permanently lubricated ball- - bearing type. c.
  • Page 91 3. Manual damper a. Manual damper package shall consist of damper, air inlet screen, and rain hood which can be preset to admit up to 25 or 50% outdoor air for year round ventilation. 4. Perfect Humidity System: a. The Perfect Humidity System shall be factory installed in single stage 580J04- - 07 and two stage 580J08- - 14 models with RTPF (round tube plate tin) condenser coils, and shall provide greater dehumidification of the occupied space by two modes of dehumidification operations in addition to its normal design cooling mode: (1.) Subcooling mode further sub cools the hot liquid refrigerant leaving the condenser coil when both temperat-...
  • Page 92 c. Disconnect Switch Bracket (1.) Provides a pre- - engineered and sized mounting bracket for applications requiring a unit mounted fused disconnect of greater than 100 amps. Bracket assures that no damage will occur to coils when mounting with screws and other fasteners. 11.
  • Page 93 21. Winter start kit a. Shall contain a bypass device around the low pressure switch. b. Shall be required when mechanical cooling is required down to 25_F (- - 4_C). c. Shall not be required to operate on an economizer when below an outdoor ambient of 40_F (4_C). 22.
  • Page 94 E2011 Bryant Heating & Cooling Systems D 7310 W. Morris St. D Indianapolis, IN 46231 Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations. Printed in U.S.A. Edition Date: 01/11 Catalog No.
