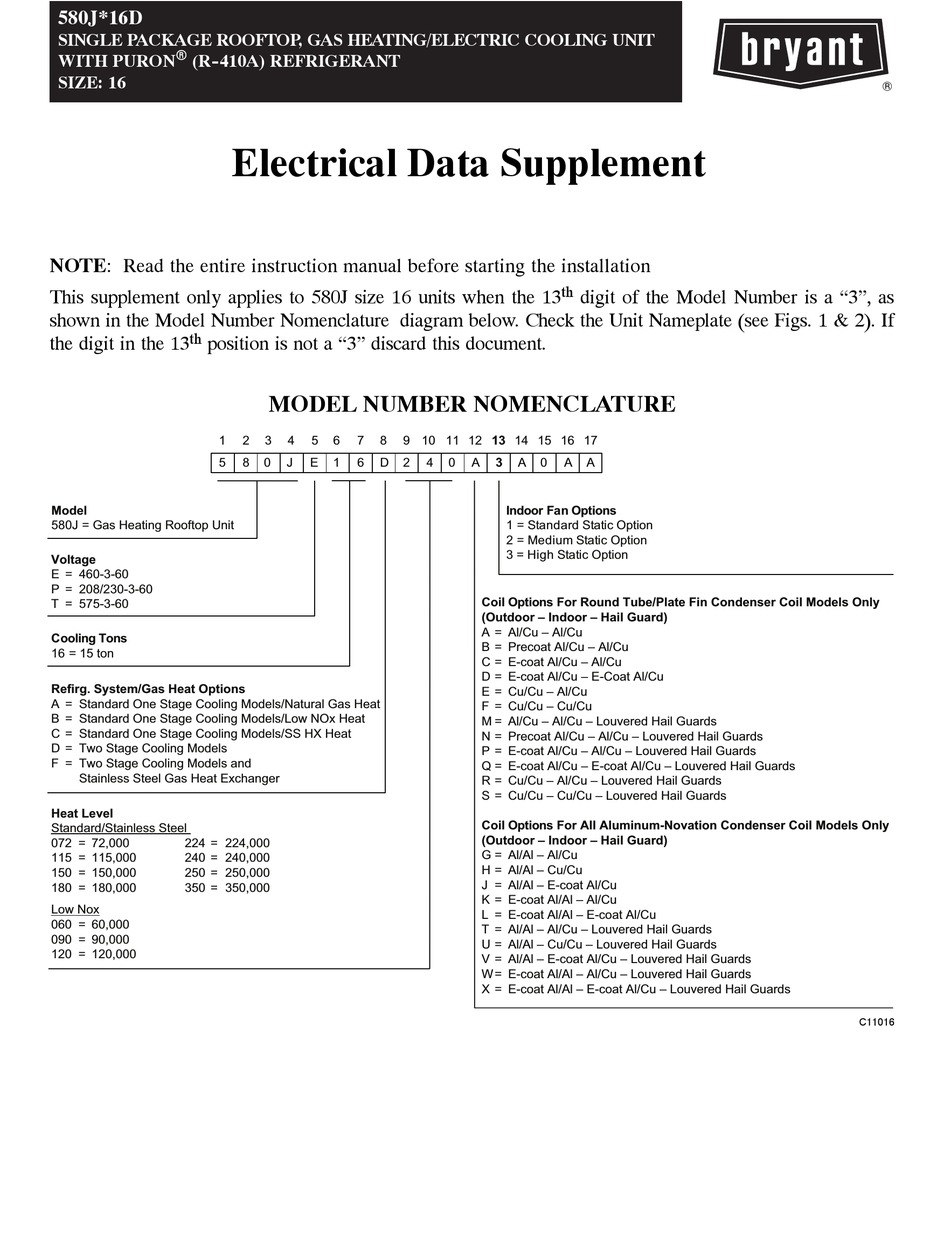

Bryant 580J*16D Series Electrical Data Supplement

580J*16D
SINGLE PACKAGE ROOFTOP, GAS HEATING/ELECTRIC COOLING UNIT
R
WITH PURON (R- - 410A) REFRIGERANT
SIZE: 16
NOTE: Read the entire instruction manual before starting the installation
This supplement only applies to 580J size 16 units when the 13
shown in the Model Number Nomenclature diagram below. Check the Unit Nameplate (see Figs. 1 & 2). If
th
the digit in the 13 position is not a "3" discard this document.
1
5
Model
580J = Gas Heating Rooftop Unit
Voltage
E = 460-3-60
P = 208/230-3-60
T = 575-3-60
Cooling Tons
16 = 15 ton
Refirg. System/Gas Heat Options
A = Standard One Stage Cooling Models/Natural Gas Heat
B = Standard One Stage Cooling Models/Low NOx Heat
C = Standard One Stage Cooling Models/SS HX Heat
D = Two Stage Cooling Models
F = Two Stage Cooling Models and
Stainless Steel Gas Heat Exchanger
Heat Level
Standard/Stainless Steel
072 = 72,000 224 = 224,000
115 = 115,000 240 = 240,000
150 = 150,000 250 = 250,000
180 = 180,000 350 = 350,000
Low Nox
060 = 60,000
090 = 90,000
120 = 120,000
Electrical Data Supplement

MODEL NUMBER NOMENCLATURE

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
8 0 J E 1 6 D 2
th
digit of the Model Number is a "3", as
4 0 A 3 A 0 A A
Indoor Fan Options
1 = Standard Static Option
2 = Medium Static Option
3 = High Static Option
Coil Options For Round Tube/Plate Fin Condenser Coil Models Only
(Outdoor – Indoor – Hail Guard)
A = Al/Cu – Al/Cu
B = Precoat Al/Cu – Al/Cu
C = E-coat Al/Cu – Al/Cu
D = E-coat Al/Cu – E-Coat Al/Cu
E = Cu/Cu – Al/Cu
F = Cu/Cu – Cu/Cu
M = Al/Cu – Al/Cu – Louvered Hail Guards
N = Precoat Al/Cu – Al/Cu – Louvered Hail Guards
P = E-coat Al/Cu – Al/Cu – Louvered Hail Guards
Q = E-coat Al/Cu – E-coat Al/Cu – Louvered Hail Guards
R = Cu/Cu – Al/Cu – Louvered Hail Guards
S = Cu/Cu – Cu/Cu – Louvered Hail Guards
Coil Options For All Aluminum-Novation Condenser Coil Models Only
(Outdoor – Indoor – Hail Guard)
G = Al/Al – Al/Cu
H = Al/Al – Cu/Cu
J = Al/Al – E-coat Al/Cu
K = E-coat Al/Al – Al/Cu
L = E-coat Al/Al – E-coat Al/Cu
T = Al/Al – Al/Cu – Louvered Hail Guards
U = Al/Al – Cu/Cu – Louvered Hail Guards
V = Al/Al – E-coat Al/Cu – Louvered Hail Guards
W = E-coat Al/Al – Al/Cu – Louvered Hail Guards
X = E-coat Al/Al – E-coat Al/Cu – Louvered Hail Guards
C11016
