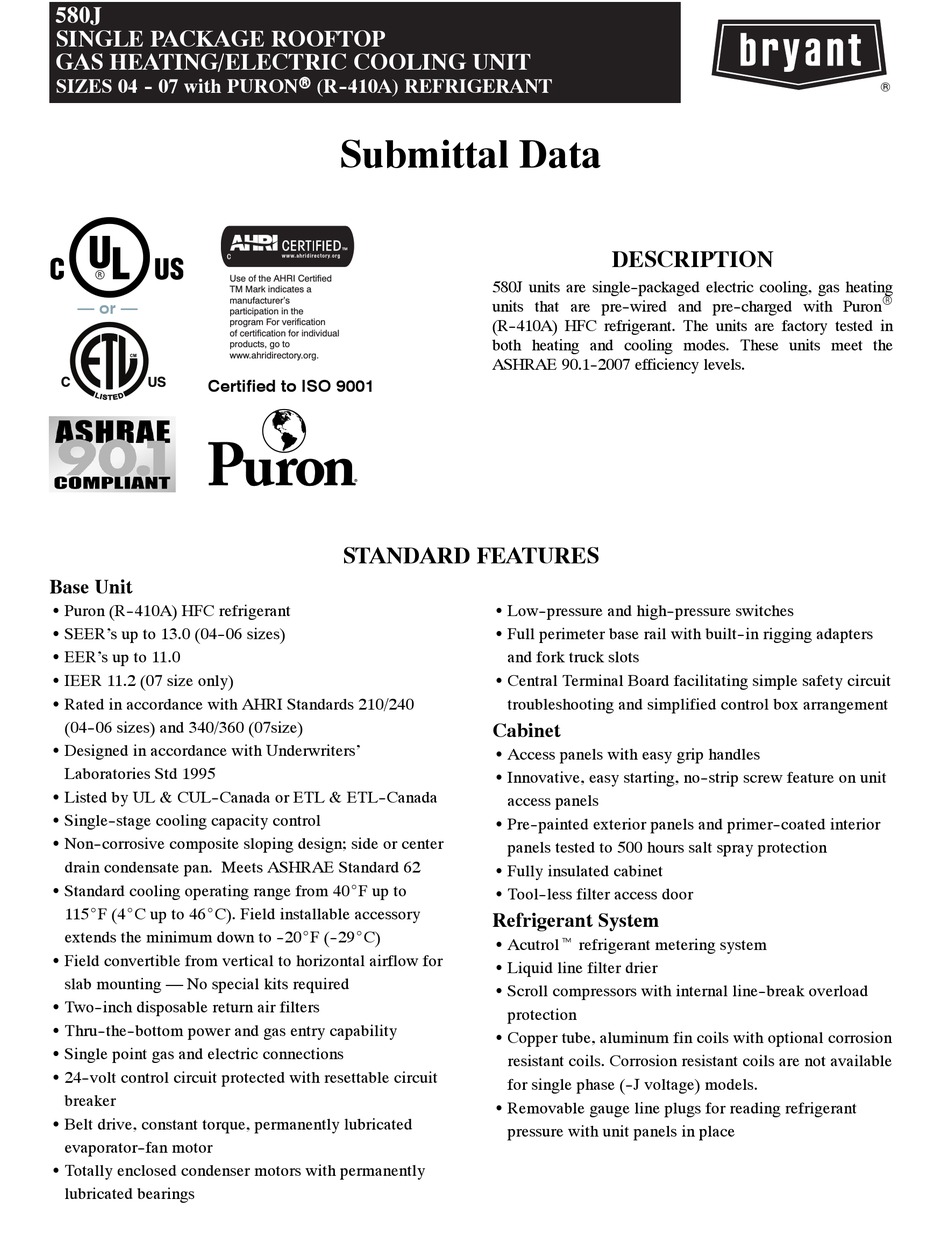

Bryant 580J Submittal Data

580J
SINGLE PACKAGE ROOFTOP
GAS HEATING/ELECTRIC COOLING UNIT
SIZES 04 - - 07 with PURON
— or —
Certified to ISO
Base Unit
S Puron (R- - 410A) HFC refrigerant
S SEER's up to 13.0 (04- - 06 sizes)
S EER's up to 11.0
S IEER 11.2 (07 size only)
S Rated in accordance with AHRI Standards 210/240
(04- - 06 sizes) and 340/360 (07size)
S Designed in accordance with Underwriters'
Laboratories Std 1995
S Listed by UL & CUL- - Canada or ETL & ETL- - Canada
S Single- - stage cooling capacity control
S Non- - corrosive composite sloping design; side or center
drain condensate pan. Meets ASHRAE Standard 62
S Standard cooling operating range from 40_F up to
115_F (4_C up to 46_C). Field installable accessory
extends the minimum down to - - 20_F (- - 29_C)
S Field convertible from vertical to horizontal airflow for
slab mounting — No special kits required
S Two- - inch disposable return air filters
S Thru- - the- - bottom power and gas entry capability
S Single point gas and electric connections
S 24- - volt control circuit protected with resettable circuit
breaker
S Belt drive, constant torque, permanently lubricated
evaporator- - fan motor
S Totally enclosed condenser motors with permanently
lubricated bearings
(R- - 410A) REFRIGERANT
r
Submittal Data
Use of the AHRI Certified
TM Mark indicates a
manufacturer's
participation in the
program For verification
of certification for individual
products, go to
www.ahridirectory.org.
9001

STANDARD FEATURES

DESCRIPTION

580J units are single- - packaged electric cooling, gas heating
units that are pre- - wired and pre- - charged with Puron
(R- - 410A) HFC refrigerant. The units are factory tested in
both heating and cooling modes. These units meet the
ASHRAE 90.1- - 2007 efficiency levels.
S Low- - pressure and high- - pressure switches
S Full perimeter base rail with built- - in rigging adapters
and fork truck slots
S Central Terminal Board facilitating simple safety circuit
troubleshooting and simplified control box arrangement
Cabinet
S Access panels with easy grip handles
S Innovative, easy starting, no- - strip screw feature on unit
access panels
S Pre- - painted exterior panels and primer- - coated interior
panels tested to 500 hours salt spray protection
S Fully insulated cabinet
S Tool- - less filter access door
Refrigerant System
S Acutrolt refrigerant metering system
S Liquid line filter drier
S Scroll compressors with internal line- - break overload
protection
S Copper tube, aluminum fin coils with optional corrosion
resistant coils. Corrosion resistant coils are not available
for single phase (- - J voltage) models.
S Removable gauge line plugs for reading refrigerant
pressure with unit panels in place
