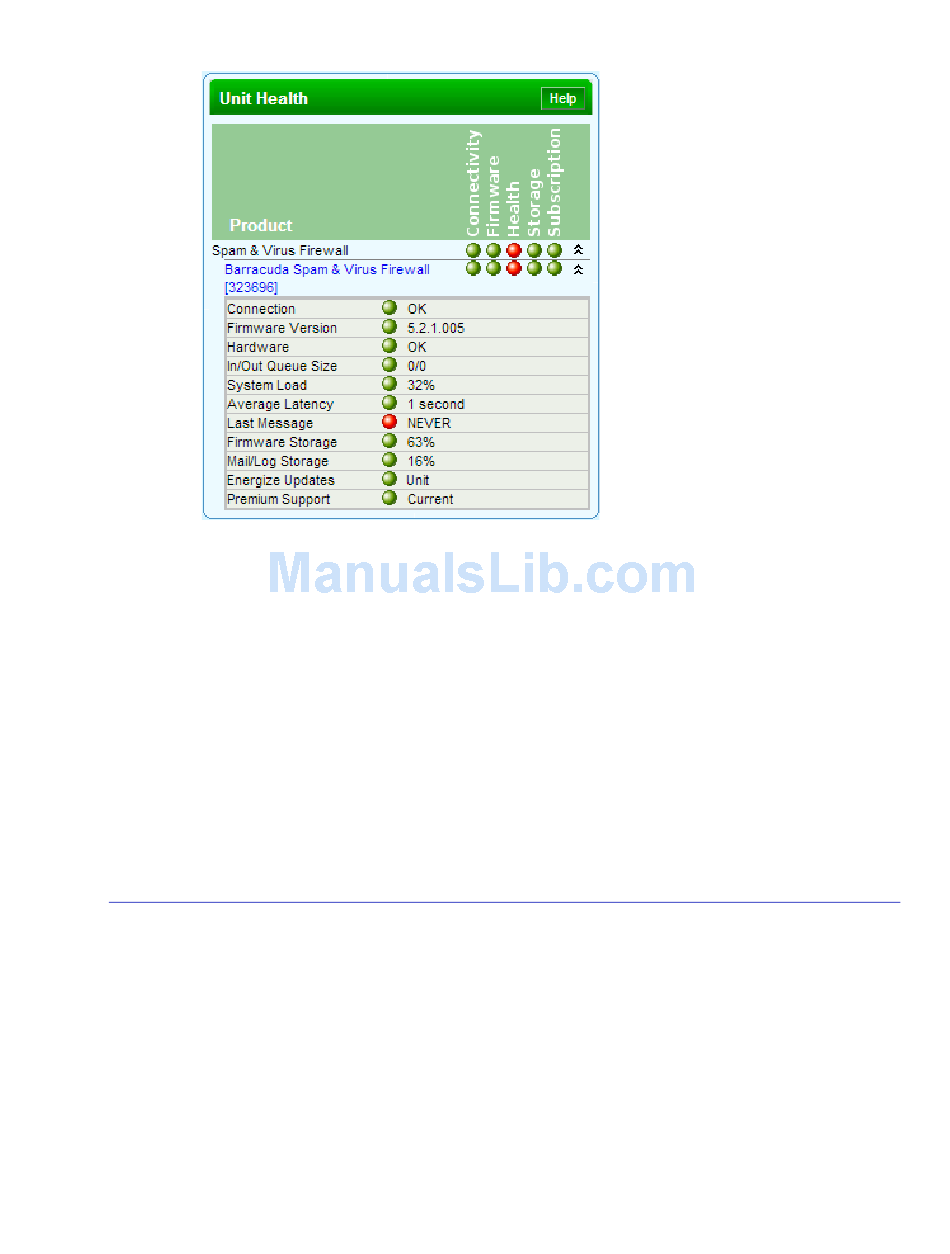

Figure 4.2: General status for each connected device
Legend for the Unit Health pane is as follows:

Product Context

When you click on a particular device in the product tree or the Unit Health pane, the unique statistics
and settings for that device display with the same web interface you would see if you logged directly
into the web interface of that device outside of the Barracuda Control Server.
The product web interface displays settings only for that device. For the selected product, you can
view and change all settings available from within the Barracuda Control Server web interface; note
that some settings are not available from within the Barracuda Control Server web interface and must
be configured from logging into the device directly from your browser. Pages or settings not available
from within the Barracuda Control Server are grayed out.
24 Barracuda Control Server Administrator's Guide
• Connectivity: Green indicates device is connected, red indicates device is not connected
• Firmware Version:
- Green indicates current release
- Yellow indicates that a new minor release is available for download
- Red indicates that a new major release is available for download
• Health: General indicator of device performance statistics
• Storage: Green indicates there are no storage issues, red indicates there are storage issues
• Subscription: Green indicates that Energize Updates, Instant Replacement (where
applicable) and Premium Support (where applicable) are current for the device, red
indicates that one or more of these subscription items is either expired or not yet activated
