Barracuda CloudGen Firewall
Barracuda NG Firewall F400 Revision B
https://campus.barracuda.com/doc/43847032/

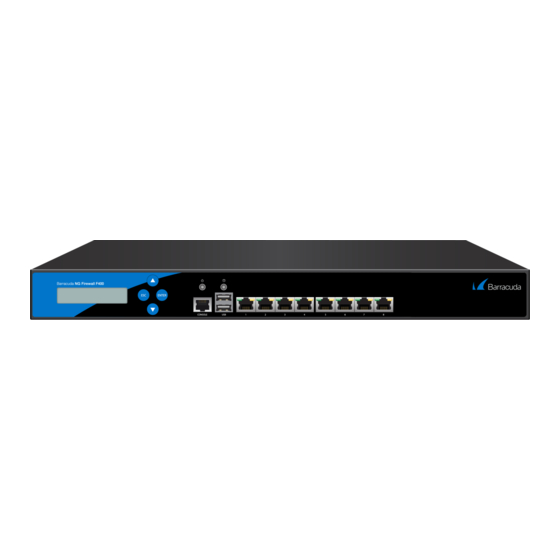

F400 Standard Model
F400 Sub-Model .F20
The standard model of Barracuda's NG Firewall F400 (Rev. B) comes with eight 10/100/1000 MBit RJ45
Ethernet ports and a single power supply. Other F400 model types (.F20) provide different port
combinations and a dual power supply.
Standard Model Port Configuration
Label OS Notation
1
port1
2
port2
3
port3
4
port4
5
port5
6
port6
7
port7
8
port8
F400 Sub-Model .F20 Port Configuration
Label OS Notation
Barracuda NG Firewall F400 Revision B
Speed/Type
10/100/1000 MBit RJ45
10/100/1000 MBit RJ45
10/100/1000 MBit RJ45
10/100/1000 MBit RJ45
10/100/1000 MBit RJ45
10/100/1000 MBit RJ45
10/100/1000 MBit RJ45
10/100/1000 MBit RJ45
Speed/Type
Management Port
X
Management Port
1 / 6

Advertisement

loading
Need help?

Need help?

Do you have a question about the F400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Barracuda F400

Summary of Contents for Barracuda F400

  • Page 1 F400 Standard Model F400 Sub-Model .F20 The standard model of Barracuda's NG Firewall F400 (Rev. B) comes with eight 10/100/1000 MBit RJ45 Ethernet ports and a single power supply. Other F400 model types (.F20) provide different port combinations and a dual power supply.

  • Page 2: Hardware Specifications

    1 GbE Fibre SFP port12 1 GbE Fibre SFP Hardware Specifications Opening your Barracuda Networks appliance or removing its warranty label unless instructed to do so by Barracuda Networks support will void your warranty and hardware support. Barracuda Networks Appliance Safety Instructions Component Specifications...

  • Page 3: Operation

    The hardware configuration list in Table 1 was valid at the time this manual was published. The listed components are subject to change at any time, as Barracuda Networks may change hardware components due to technological advancements. Therefore, the list may not reflect the current hardware configuration of the Barracuda Networks NG Firewall or NG Control Center...
  • Page 4 Left or Escape Navigates back or acts like an Escape key while working in the LCD menu. Navigates up or increases a value. Down Navigates down or decreases a value. Right or Enter Navigates forth or acts like an Enter key for confirming a configuration step. Barracuda NG Firewall F400 Revision B 4 / 6...
  • Page 5 Once set, this flag can not be deleted through the menu. When Menu to boot into ART during the rebooted, the appliance will not start Barracuda OS, but ART next reboot instead. You may connect to the appliance by using the serial console or by SSH.
  • Page 6 Barracuda Networks Inc. All specifications are subject to change without notice. Barracuda Networks Inc. assumes no responsibility for any inaccuracies in this document. Barracuda Networks Inc. reserves the right to change, modify, transfer, or otherwise revise this publication without notice.
