Summary of Contents for Eureka MYTHOS 220

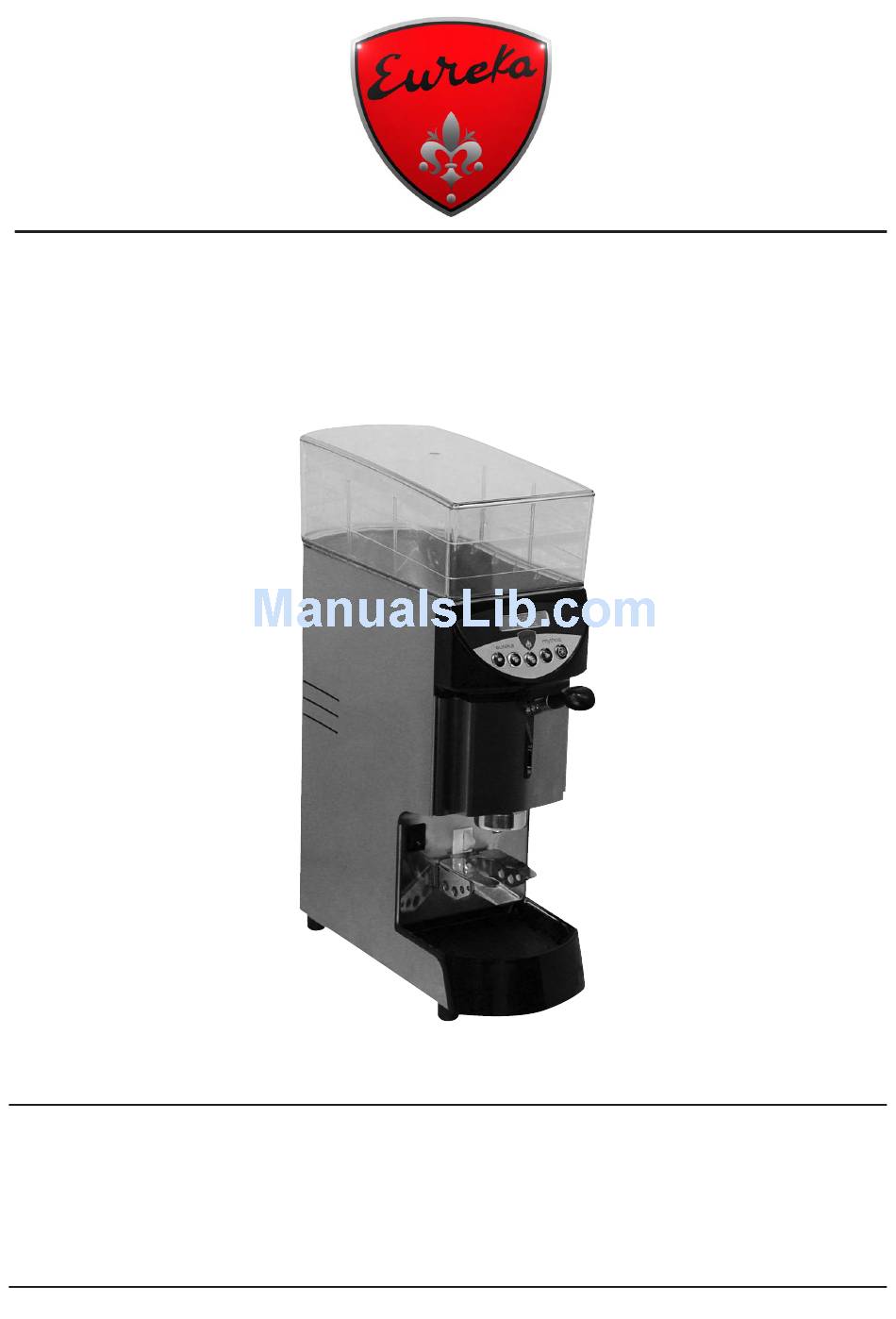

- Page 1 mythos LIBRETTO ISTRUZIONI USER HANDBOOK MANUEL D’INSTRUCTIONS GEBRAUCHANWEISUNGEN INSTRUCCIONES DE MANEJO...

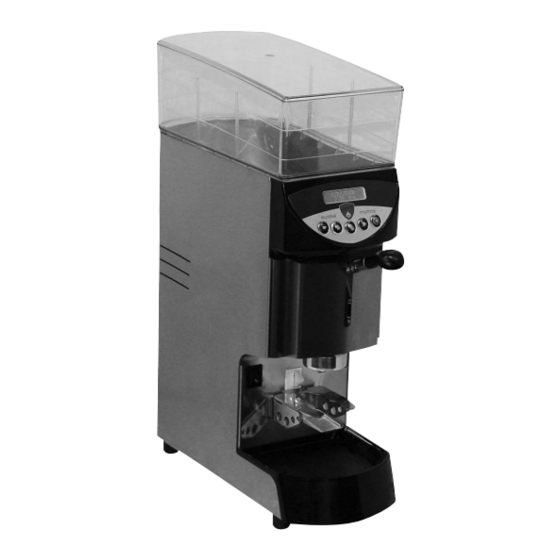

- Page 2 DICHIARAZIONE DI CONFORMITA’ CE EC DECLARATION OF CONFORMITY CONTI VALERIO S.R.L. Via di Colonnata, 1 - 50019 Sesto Fiorentino (FI) – ITALY Dichiariamo sotto la nostra responsabilità, che il prodotto: Declare under our responsibility that the product: SISTEMA ELETTRONICO DI MACINATURA PER CAFFE' MODELLO: MYTHOS ELECTRONIC-INSTANTANEOUS COFFEE GRINDER SYSTEM MODEL: MYTHOS...
-
Page 3: General Information
CONTI VALERIO - Via di Colonnata, 1 - Sesto Fiorentino, Firenze - Italy MODELS: MYTHOS - Elettronic-instantaneous coffee grinder system TECHNICAL DATA MODEL DESCRIPTION MYTHOS 220 MYTHOS 110 Volts (V) Frequency (Hz) Power (W) El. Motor power (W) Revolution per min. (rpm) - Page 4 IMPORTANT INFORMATION This manual is designed for use by the user of the machine and/or by those performing mainte- nance on the machine and must be considered an integral part of the machine itself. This manual provides information concerning correct use and appropriate maintenance of the machine, as well as useful indications for ensuring user safety.
-
Page 5: Applications And Use
The power cord of this appliance must never be replaced by the user. In the event of damage, switch off the appliance and only contact professionally qualified technicians for its replacement. Should you decide to no longer use this type of appliance, we recommend that you make it inoperative: unplug the appliance from the mains socket and cut off the power cord. -
Page 6: Instructions For Use
Always use the appliance on a flat, steady surface that is able to support its weight. Always unplug the machine from the power supply before performing any cleaning or maintenance operations. Do not use jets of water or detergents for cleaning. In the case of machine breakdown or malfunction switch the machine off and do not tamper with it. -
Page 7: Programming Of The Machine
WARNING To avoid the blockage of the spout (11) hold the portafilter on the fork (10). REGULATION OF THE GRIND To adjust grinding fineness, it is necessary to open the hatch (7) and use the knob (14) (see Fig. 5) turning it clockwise for finer grinding, or anticlockwise for coarser grinding. This adjustment does not have any stop points and each turn of the knob corresponds to a movement of 0.4 mm of the grinders. - Page 8 7.4.3 DOSE SELECTION IN BARISTA MODE During operation in “barista” mode, the display will appear as shown in the figure above; the time for the dose will be shown in seconds on the left side at the bottom of the display, while the relevant button will stay lit.
- Page 9 refers to the (›) symbol which permits the continuation of the programming, even of other eventual dosages to be programmed that will continue flashing. 7.4.6 PROGRAMMING OF THE SINGLE IMPULSE Proceeding in the programming you enter the setting of the access time to the “single impulse”.
- Page 10 To return to the program mode re-push the lit button. or to know the total number of coffees, with the possibility of zeroing the quantity; or to know the number of times the motor has started. Finally it is possible to count the grind times: the time the machine has continuously ground coffee (can be zeroed);...
- Page 11 used on all modes: manual, automatic, and barista. 7.4.10 PASSWORD ENTRY The new software version includes the possibility to enter a password to prevent access to programming. Once on the "EDIT PSW" page, it is possible to enter or change a password by pressing the flashing key .
- Page 12 it possible to access the programming function. The whole "PASSWORD" function is active for all operating modes; in the "MANUAL" and "AUTOMATIC" modes it blocks access to all programming. However, in "BARISTA" mode it is still possible to edit dose times but it is not possible to access counters. 7.4.11 LANGUAGE SELECTION During programming it is possible to choose the language (Italian, English, French, German,...
-
Page 13: Cleaning And Maintenance
Pressing this key, it is possible to change the lighting of the "NON ACTIVE" keys in standby on a scale from 0 to 10, indicated by "Tm". Pressing this key, it is possible to change the lighting of the display on a scale from 0 to 7, indicated by "D". -
Page 14: Maintenance
MAINTENANCE WARNING Maintenance operations must be carried out by specialized personnel authorized by the manufacturer. WARNING Do not carry out unprofessional or dangerous repairs, do not use non-original spare parts. Do not carry out unprofessional or dangerous repairs, do not use non-original spare parts. IDENTIFYING BREAKDOWNS Contact specialized personnel. - Page 15 C O N T I VAL E R I O S . R . L . Via di Colonnata, 1 - 50019 SESTO FIORENTINO (FIRENZE) Italia Graphics by: “ Type Engineering S.r.l.”...
