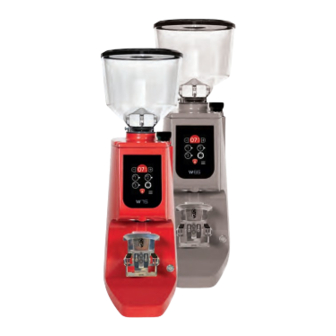

ATOM W 65/75
LIBRETTO ISTRUZIONI
USER HANDBOOK - GEBRAUCHANWEISUNGEN
MANUEL D'INSTRUCTIONS - INSTRUCCIONES DE MANEJO
Istruzioni Originali - Translation of the Original Instructions -
Übersetzung der Originalanleitungen - Traduction des Instructions Originales -
Traducción de las Instrucciones Originales

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ATOM W 65 and is the answer not in the manual?

Questions and answers

Summary of Contents for Eureka ATOM W 65

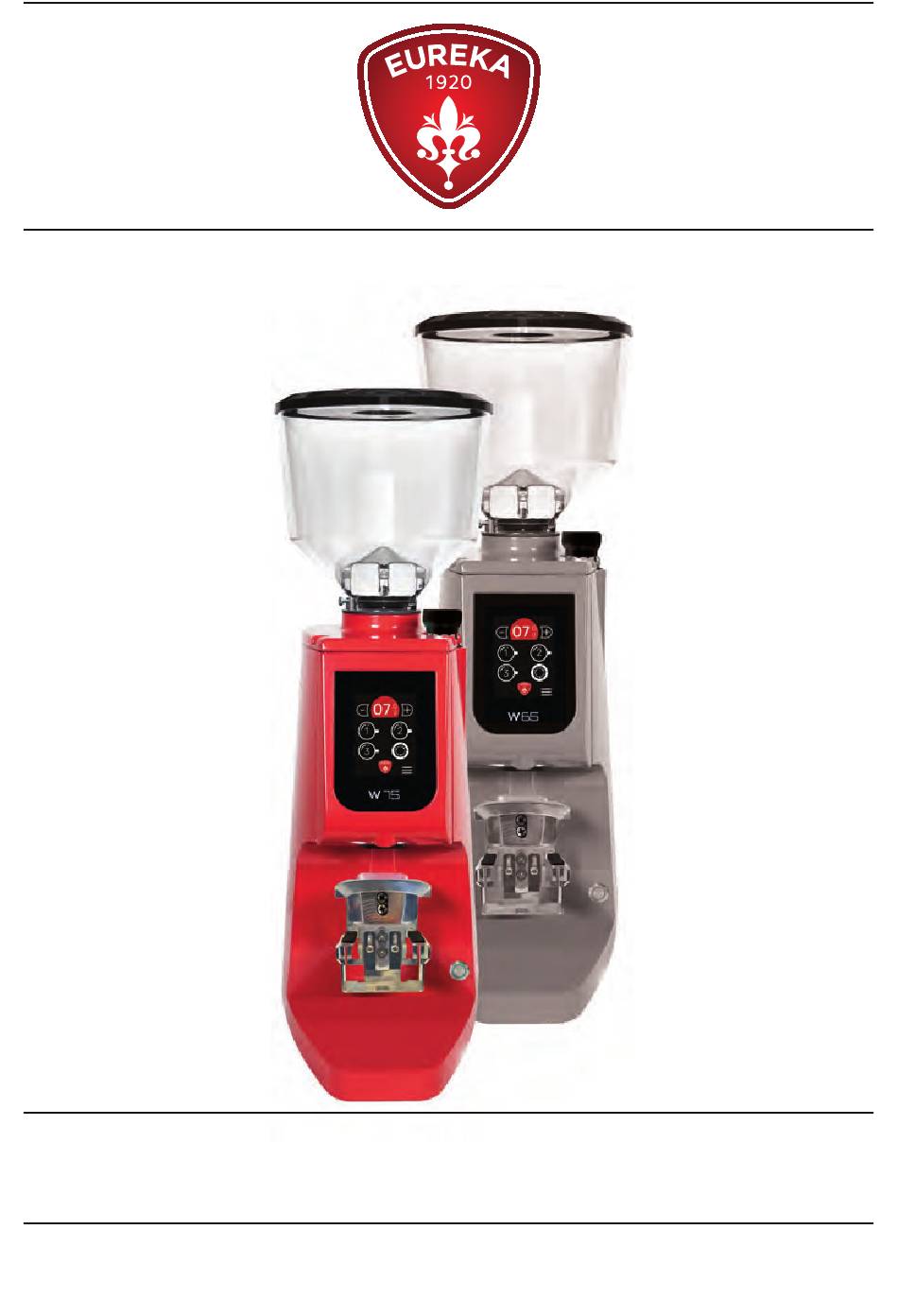

  • Page 1 ATOM W 65/75 LIBRETTO ISTRUZIONI USER HANDBOOK - GEBRAUCHANWEISUNGEN MANUEL D’INSTRUCTIONS - INSTRUCCIONES DE MANEJO Istruzioni Originali - Translation of the Original Instructions - Übersetzung der Originalanleitungen - Traduction des Instructions Originales - Traducción de las Instrucciones Originales...
  • Page 2: Safety Instructions

    SAFETY INSTRUCTIONS The producer has reasonably considered every precaution possible, so to assure user’s safety. Anyway, in installing and using the grinder, various conditions may create uncontrollable and unpredictable events; so, it’s always necessary to evaluate any risks and consider what follows: •...
  • Page 3: Important Warnings

    IMPORTANT WARNINGS • Do not pull the cable or the grinder itself to disconnect its power cable. • Do not use the grinder with wet or damp hands. • Do not use the grinder when you are barefoot. • Before cleaning or servicing, unplug the grinder from the electric net. •...
  • Page 4: Importance Of The Manual

    considered like a usual home waste ; it must be delivered to a suitable waste collection facility that recycle electric and electronic devices. If this grinder is correctly disposed of, you will prevent potential damages to both environment and health; these damages may occur in case the grinder is not correctly disposed of.
  • Page 5 ATOM W 65-75 - 07...
  • Page 6 XVII...
  • Page 7: General Information

    (kg) Hopper Capacity (Kg) Height (mm) Width (mm) Depth (mm) * The values indicated refer to the actual revolutions of the grinders • Atom W 65: Ton 30s – Toff 270s • Atom W 75: Ton 30S – Toff 420s...
  • Page 8: Description Of The Appliance

    DESCRIPTION OF THE APPLIANCE 1. Container lid 5. Touch screen display 2. Container for coffee beans 6. Dispensing nozzle 3. Coffee bean container 7. Ignition button 8. Filter holder fork opening/closing tab 4. Grinding adjustment knob I. Continuous dose selection A.
  • Page 9: Turning On The Machine

    TURNING ON THE MACHINE Turn the switch (7) to the on position. When the appliance is switched on for the first time, it will be set to the mode set at the time it left the factory and, in any case, during subsequent starts, it will always be set to the last mode before it was switched off.
  • Page 10 4.4.1 CONTINUOUS DISPENSING Select the continuous dose button (I), place the filter holder cup on the fork (8) and keep the continuous dose button (I) pressed for the entire duration of the grinding. To pause the grinding, simply remove your finger from the continuous dose key (I) and hold it down again to continue dispensing.
  • Page 11: Machine Programming

    MACHINE PROGRAMMING DOSE ADJUSTMENT • Select the key (C) or (G) to select the dose to be set. • Press the keys (B) or (F) to decrease or increase the dispensing time of the selected dose by plus or minus 5 hundredths of a second. If pressed for a long time, the time is increased or decreased by however long the key is pressed.
  • Page 12: Machine Information

    The previously set password must first be entered. By pressing the NEXT key it will be possible to write, confirm and save the new password. 5.2.3 MACHINE INFORMATION This screen is used to view the machine information relating to the model and firmware version, necessary for any type of technical intervention request.
  • Page 13: Display Brightness

    5.3.2 DISPLAY BRIGHTNESS This screen is used to set the brightness of the display. Press the “+” and “-” keys to increase or decrease the brightness. 5.3.3 DOSE SELECTION MODE This screen allows setting the dose selection mode. • ON: before each dispensing cycle, the dose must be selected. •...
  • Page 14 5.3.5 LANGUAGE This screen allows selecting the language. The language currently in use is shown on the screen as a preview. Press the SET key to change the language, choosing from one of the languages listed. 5.3.6 STANDBY This screen is used to activate and deactivate standby and to set the minutes to wait before it activates.
  • Page 15 FILTER HOLDER FORK CALIBRATION Press and hold the calibration key for 3 seconds. The menu to calibrate the system is entered: • The sample weight value available to the user flashes on the display. It is possible to modify the weight by acting on the keys (B) and (G). •...
  • Page 16: Grinding Mode

    GRINDING MODE Grinding mode It is possible to switch from grinding by weight to grinding Grinding by weight by time via the "GRINDING MODE" screen. When grinding by weight is ON the main screen will be red. Grinding by time When grinding by time is ON the main screen will be green.
  • Page 17: Maintenance

    ATTENTION Do not leave the filter holder inserted on the fork (8). CLEANING THE COFFEE BEAN CONTAINER After removing the container from the machine, wash the inside with water and neutral soap, removing the oily layer left by the coffee beans. Rinse and dry it thoroughly. Repeat the process for the plastic lid.
  • Page 20 CONTI VALERIO S.R.L. Via Luigi Longo 39/41 - 50019 Sesto Fiorentino (FI) - ITALY...
