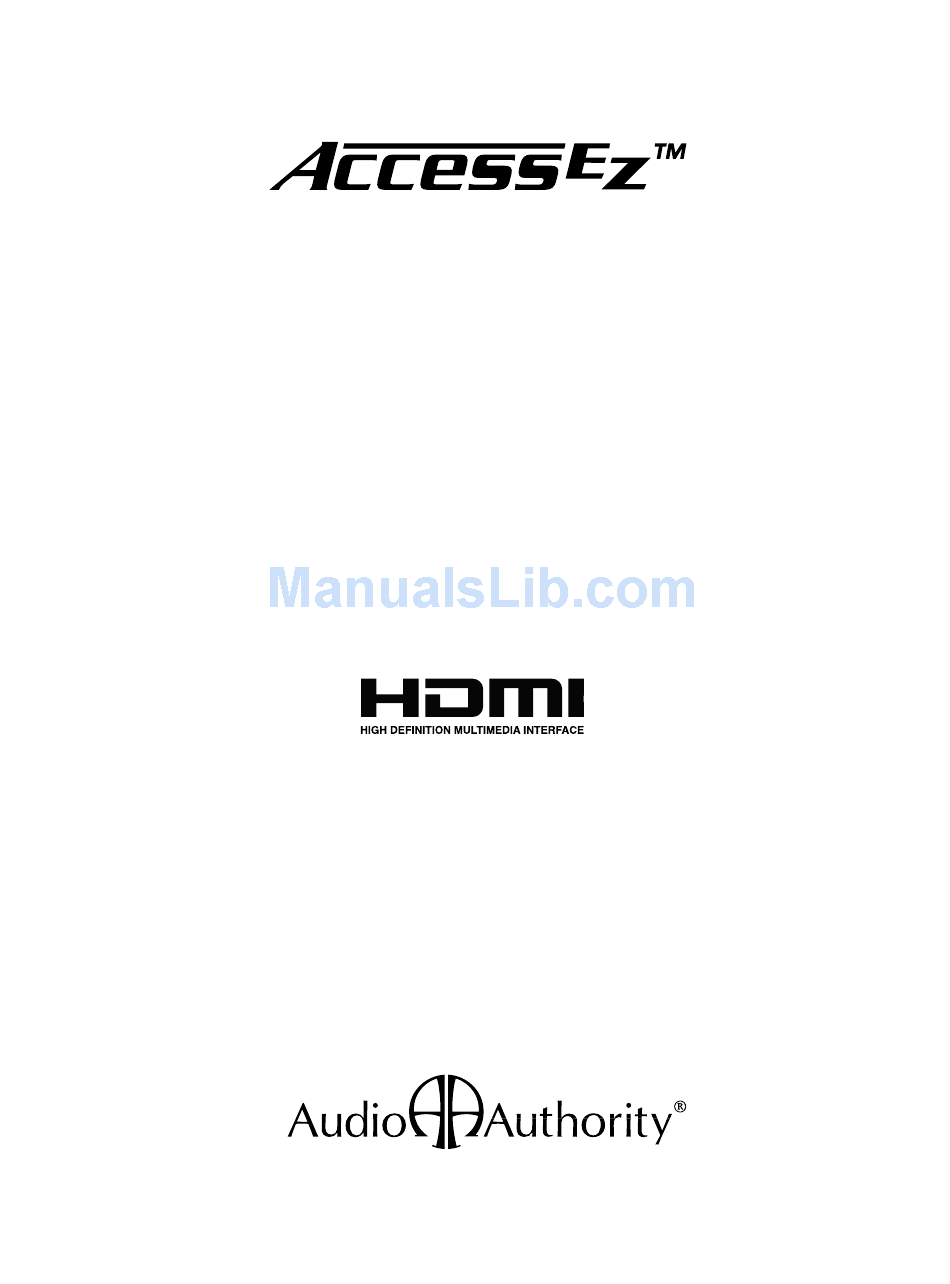

- Page 1 Demonstration Network Model 972 Installation Manual Access Switching System Interface for Model 1374A HDMI Switcher...
-
Page 2: System Bus
HDMI switches. Module ID addressing is explained in detail below. In Slave mode, the 972 mirrors the switching activity of an Access electronics module, such as a 922, 954 or 947. The 972 in Slave mode is not directly connected to the EXPANSION port as other Access expanders are, but must be addressed identically to the “master”... - Page 3 972 in Slave Mode if HDMI switching capability is being added to an existing Access source group as shown in Figure 10. In that case, the 972 acts as an expander module to a 955 module, but it does not connect in the same physical manner as an expander module.
-
Page 4: Example System
Example System 1 A typical application for the 972 is to add HDMI source switching to a speaker switching system. • The HDMI sources send audio and video to a dedicated HDMI receiver. • The receiver’s speaker outputs are switched using Access speaker switching modules. - Page 5 • The receivers all receive HDMI from the 1394A amp but their output is switched so that only one receiver’s video output is shown on the TV at one time. 972 is in Slave Mode, mirroring the behavior of a 947 receiver switch module.
- Page 6 Module ID setting on 972 in second level Output to sink (HDMI input on TV, receiver, or distribution system) Module ID setting on 972 in third level HDMI / AccessEZ Switching Interface Installation Manual Audio Authority • 800-322-8346 • www.audioauthority.com...
- Page 7 HDMI receiver. PSBs connected to the 955 select the 972 HDMI Source positions as well as the audio and video channels switched by the 955. The maximum product capacity in Slave Mode is 40 HDMI sources.
-
Page 8: Troubleshooting Guide
PSBs respond correctly, but HDMI • Check outlet and power supply connections to 1394A switch does not respond • Protocol does not match HDMI switch type (call Audio Authority) • Pinout jumper incorrect for HDMI switch type • Bad RS-232 Cable...
