Audio Authority 922 Diagram

Low-Level Subwoofers

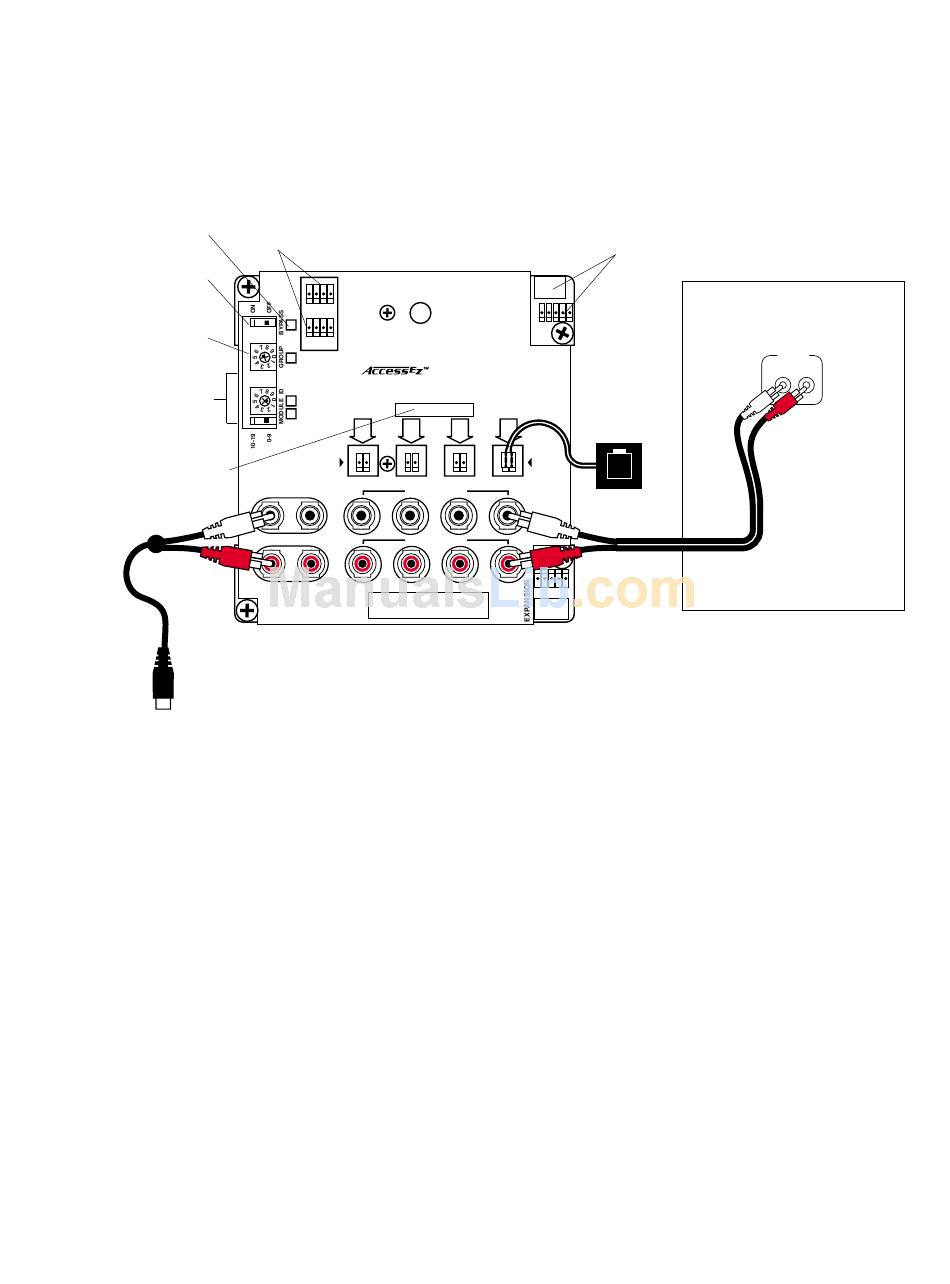

This drawing shows a powered subwoofer switched by a 922 Low-Level Selector. The GROUP address should
be higher than the highest speaker GROUP address. The mono subwoofer bus cable connects to the stereo
jacks with a "Y" adapter. Instructions for other types of subwoofer configurations are available if needed.
Contact our Sales department at the phone number below.
Write in switch
settings in each box
Setting for
Bypass
Group Number
Setting
Module
Address
Settings
Write
"SUBWOFERS"
in this box
"Y" Cable for bus
connections
Mono Subwoofer Bus
cable from 947 module
connects here
ASD
Phone: 859-233-4599 Fax: 859-233-4510
System Bus
Model 922 Stereo
Connections
Low-Level Selector
ASD
SYSTEM
BUS
Low Level Selector
SOURCE, PROCESSOR, SUB, ETC:
1 2
PSB
SIGNAL BUS
LEFT AUDIO
RIGHT AUDIO
Tech Support USA and Canada: 800-322-8346 (Mon-Fri 8:30 AM to 5:00 PM Eastern Time)
Do Not Use these ports in
Home-Audio Applications
701-1089
POWER
Model 922
(Optional)
Product
Select
Button
Position #4
3 4
S
PSB
Hookup drawings and FAQ http://www.audioauthority.com
Powered
Subwoofer
AUDIO IN
LEFT RIGHT
Left/Right
Audio Input
