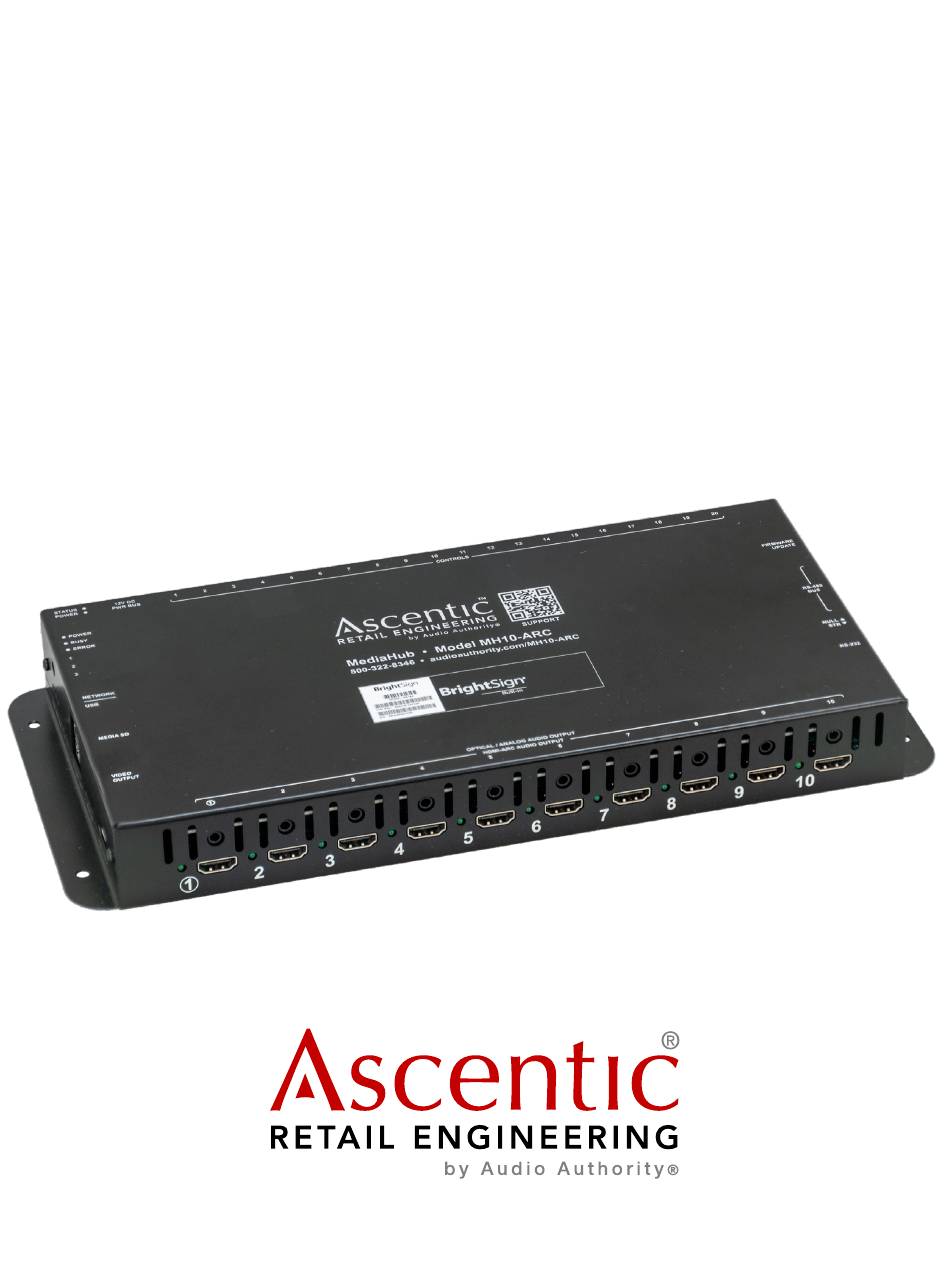

- Page 1 User Manual MH10-ARC Intelligent Audio MediaHubs Including MH10-ARC-OPT-4K and MH10-ARC-S5 Image Angle 1 View: Centered...
- Page 2 Interface options include push-buttons and AirSelect proximity sensors, to control an interactive presentation • Customizes intuitively with the power of BrightAuthor firmware by BrightSign * Audio Authority/Ascentic Media products incorporating Brightsign SOM cores do not support metadata-centric content (HDR) Contact BrightSign support for further information. Centered...
- Page 3 Communication The MH10-ARC Intelligent Audio MediaHub has the default device ID 253. It can send and receive serial commands via RS-485 at 57600 Baud, 8-N-1, and half-duplex; and via RS-232 at 115200 Baud, 8-N-1, and full-duplex. Both configuration ports utilize a modular RJ45 jack with the following pinouts: RS-485 Pinout: RS-232 Pinout: Pin Function...
-
Page 4: Quick Start Instructions
Quick Start Instructions Create a new BrightAuthor experience for the HS123/124/144 (depending on the module installed in the MediaHub). 2. In BrightAuthor’s presentation properties on the interactive tab, ensure “port 0” is configured to a baud rate 115200 8-N- 1, ASCII, with “CR” for send and receive EOL. 3. -
Page 5: Power Specification
Power Specification Troubleshooting Power Bus Port: 2x barrel jack connectors (5.5 x 2.1mm) No Ethernet connectivity, check the following: Voltage: +12V DC • Connections are fully seated No-Load Current: • The correct position is selected via software PCAs Only: TBD MH10-ARC: TBD •...
