Summary of Contents for Audio Authority Ascentic MH10-ARC

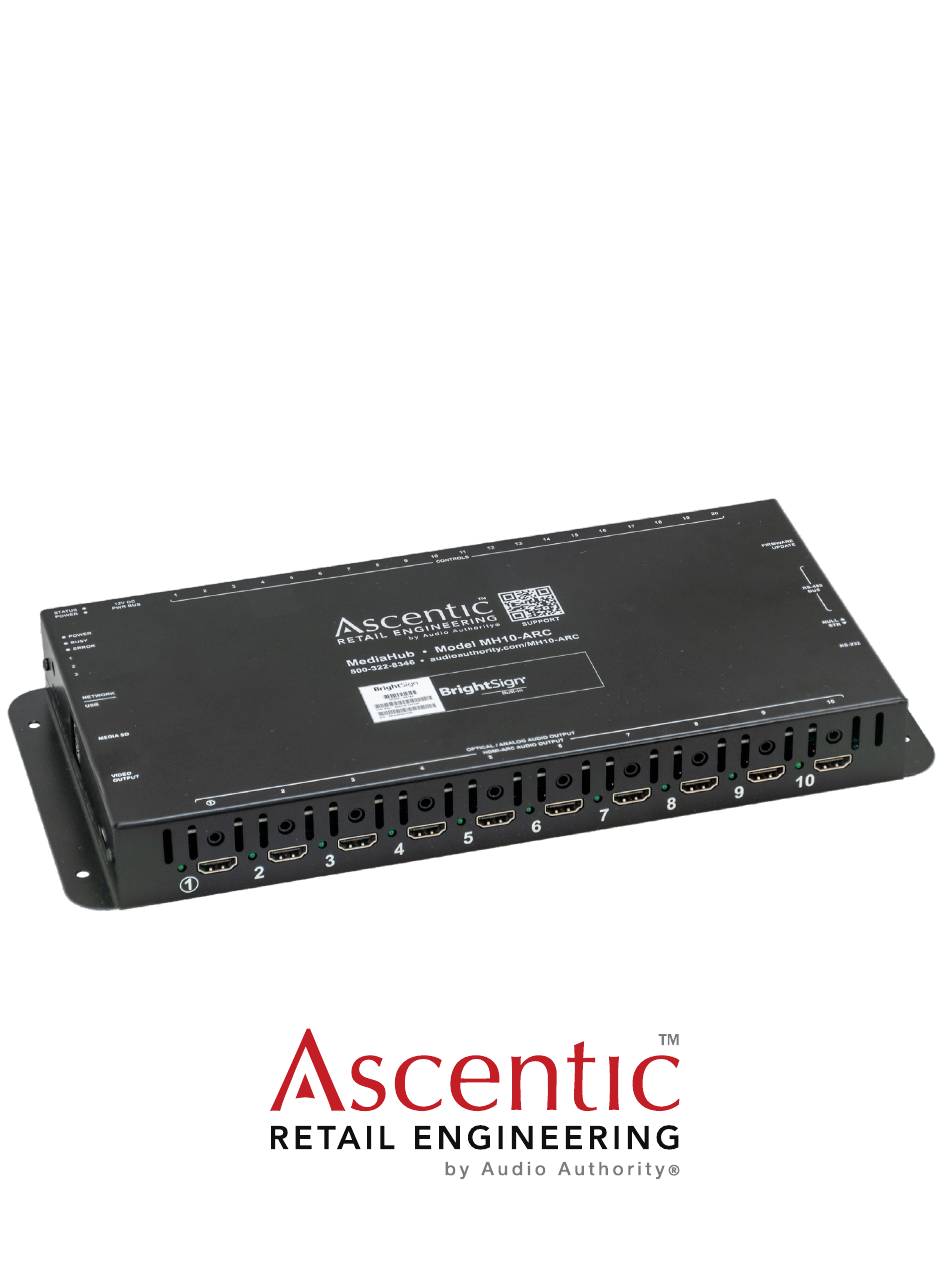

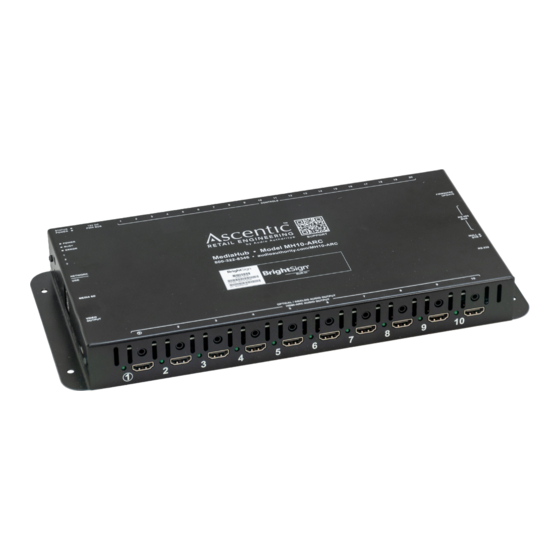

- Page 1 User Manual MH10-ARC Intelligent Audio MediaHub Image Angle 1 View: Centered...
- Page 2 Introduction The MH10-ARC Intelligent Audio MediaHub uses audio return channel to demonstrate multiple different sound bars. This device also features 4K video from its dedicated video output. The MH10- ARC has 10 HDMI audio ports and 20 interface control ports for Front View Image: presentations of all sizes.
- Page 3 Communication The MH10-ARC Intelligent Audio MediaHub has the default device ID 253. It can send and receive serial commands via RS-485 at 57600 Baud, 8-N-1, and half-duplex; and via RS-232 at 115200 Baud, 8-N-1, and full-duplex. Both configuration ports utilize a modular RJ45 jack with the following pinouts: RS-485 Pinout: RS-232 Pinout: Pin Function...
- Page 4 Quick Start Instructions Create a new BrightAuthor experience for the HS123/124/144 (depending on the module installed in the MediaHub). 2. In BrightAuthor’s presentation properties on the interactive tab, ensure “port 0” is configured to a baud rate 115200 8-N- 1, ASCII, with “CR” for send and receive EOL. 3.
- Page 5 Power Specification Troubleshooting Power Bus Port: 2x barrel jack connectors (5.5 x 2.1mm) No Ethernet connectivity, check the following: Voltage: +12V DC • Connections are fully seated No-Load Current: • The correct position is selected via software PCAs Only: TBD MH10-ARC: TBD •...
