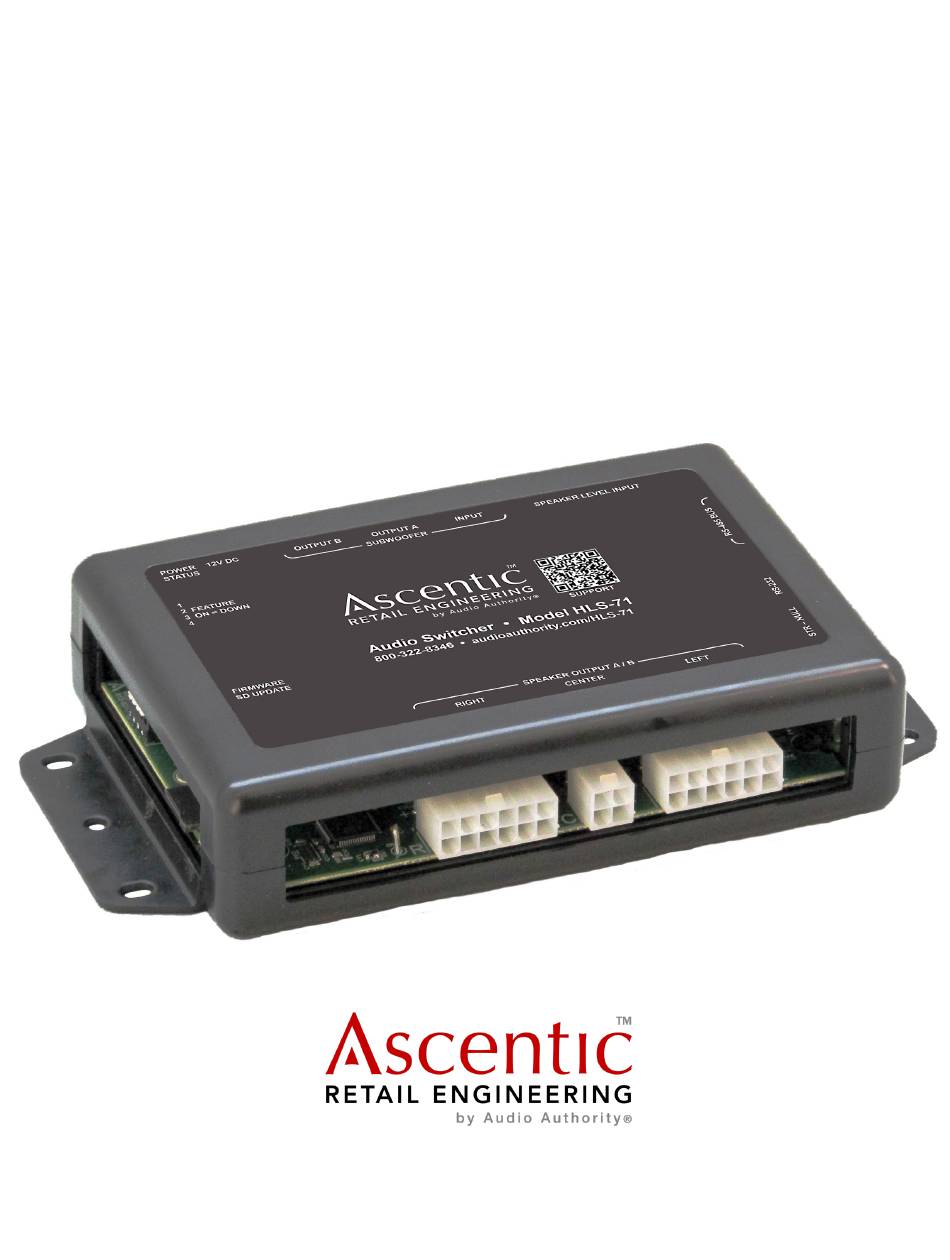

- Page 1 User Manual HLS-71 Series Intelligent Audio Switcher...

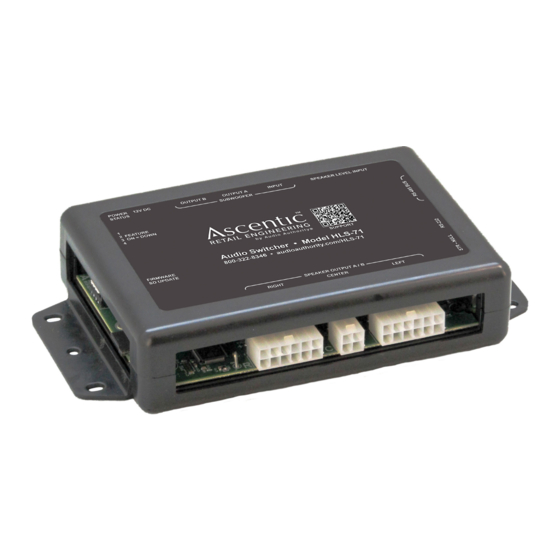

- Page 2 Introduction The HLS-71 Intelligent Audio Switcher controls 7.1 channel audio systems between two sets of outputs. This device also monitors system health, with optional network control and monitoring capabilities. The HLS-71 mounts directly to a flat surface using the mounting flanges on the case. Features •...
-
Page 3: Quick Start Instructions
Communication The HLS-71 Intelligent Audio Switcher has the default device ID 7. It can send and receive serial commands via RS-485 at 57600 Baud, 8-N-1, and half-duplex; and via RS-232 at 115200 Baud, 8-N-1, and full-duplex. Both configuration ports utilize a modular RJ-45 jack with the following pinouts: RS-485 Pinout: RS-232 Pinout: Pin # Function... -
Page 4: Example System
Example System: HLS-71-IP With Speakers and Subwoofers This display uses audio to attract and communicate. It leverages the HLS-71-IP module’s high level audio output options to demonstrate two different products. All audio outputs can play either digital or analog audio, depending on the requirements of the device. -
Page 5: Power Specification
Power Specification Power Entry Port: 2x barrel jack connectors (5.5 x 2.1mm, bussed, center positive) Voltage: +12V DC No-Load Current: HLS-71: 16mA HLS-71-IP: 145mA Maximum Load Current: HLS-71: 175mA HLS-71-IP: 350 mA Maximum Current Output: RS-485 Bus: 1.25 A @ 12.0VDC Mechanical Details Case Type: Ascentic universal case, molded ABS Case Dimensions: W x L x H... - Page 6 Ascentic is a trademark of Audio Authority Corp. 2048 Mercer Road, Lexington, Kentucky 40511-1071 800-322-8346 • 859-233-4599 • Fax: 859-233-4510 E-217 www.audioauthority.com • support@audioauthority.com 20210120 SUPPORT...
