Summary of Contents for Audio Authority 1332
-

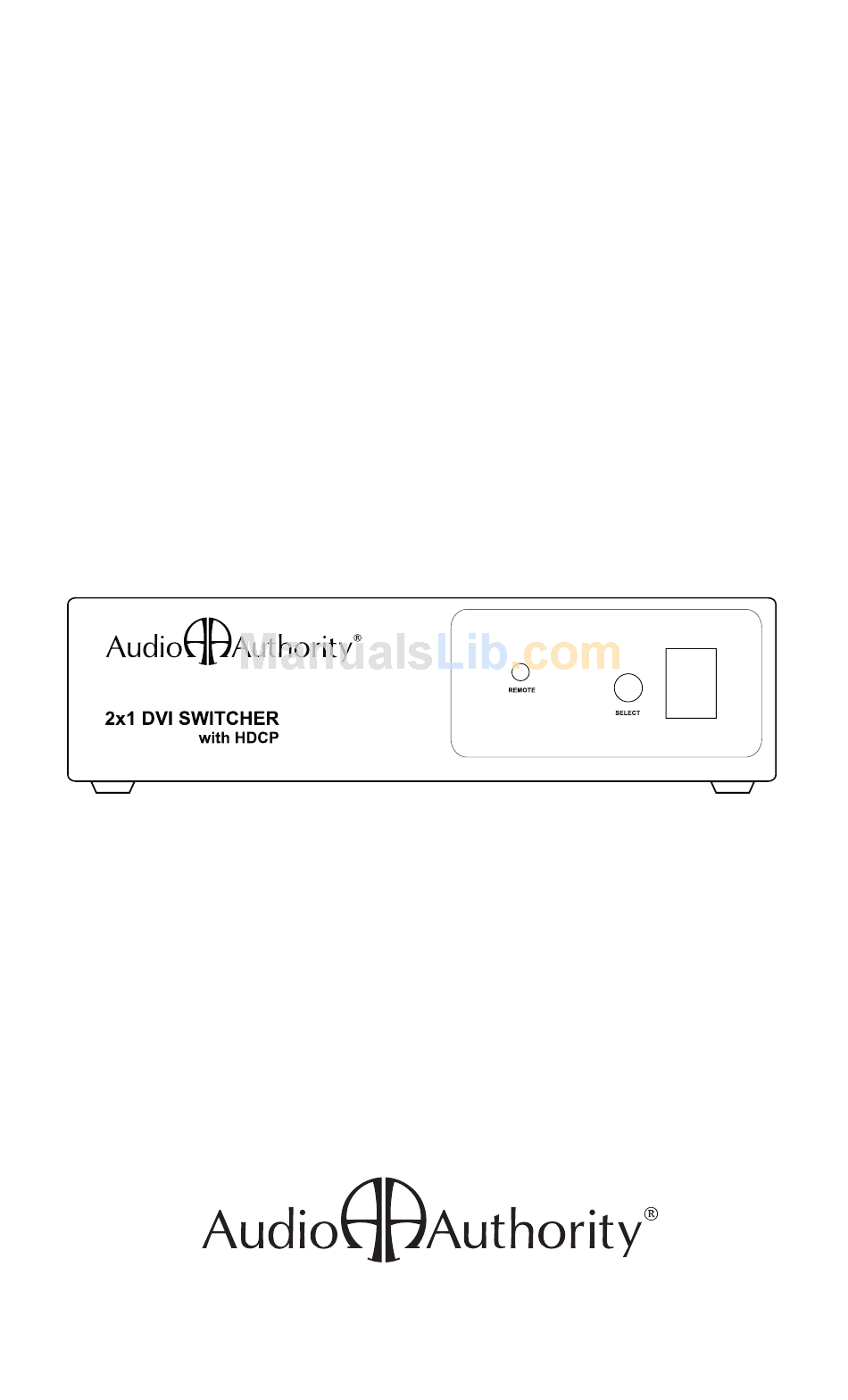

Page 1: User Manual
User Manual Model 1332 and 1334 2x1 and 4x1 DVI Switcher with HDCP... -
Page 3: Table Of Contents
Introduction ..... . . 4 Specifi cations ..... . 5 Checking Package Contents . -
Page 4: Introduction
Audio Authority. All other trademarks are the property of their respective holders. 1.2 FEATURES The 1332 2X1 and 1334 4X1 DVI Switchers have many features that enable them to perform in a superior manner. Among those features you will fi nd: •... -
Page 5: Specifications
2.0 SPECIFICATIONS Performance HDTV Resolutions Supported Maximum PC Resolution Bandwidth DVI Source Port Connectors Display Device Port Connector Display device selection Mechanical Dimension (H-W-D) Weight Warranty Limited Warranty Environmental Operating Temperature Operating Humidity Storage Temperature Storage Humidity Power Requirements External Power Supply Regulatory Approvals Switcher Unit Power Supplies... - Page 6 Model 1332 2x1 DVI Switcher Model 1334 4x1 DVI Switcher...
-
Page 7: Checking Package Contents
Before attempting to use this unit, please check the packaging and make certain the following items are contained in the shipping carton: • 1332 or 1334 DVI Switcher with Remote Control • DVI Cable • 9 VDC AC Adapter • User Manual Note: Please retain the original packing material should the need ever arise to return the unit. -
Page 8: Remote Control Selection
5.2 Remote Control Selection Input selection is also possible using the provided remote by pressing the appropriate button. If you have a problem with the IR control confl icting with other devices, the remote allows users to reconfi gure four (A, B, C, D) alternate combinations of IR codes. -
Page 9: Troubleshooting
The cables must be 6 foot long or less. Lastly, Inspect the cables and connectors for damage. 6.1 HDMI Displays The 1332 or 1334 DVI output signal can be converted to HDMI using a cable or converter, but the resulting signal may not be compatible with all HDMI displays. -
Page 10: Limited Warranty
Should any consumer product from Audio Authority fail due to defects in materials or workmanship within one year from the date of the original sale to the end-user, Audio Authority guarantees that we will replace the defective product at no cost. Freight charges for the replacement unit will be paid by Audio Authority (Ground service only). -
Page 11: Regulatory Compliance
8.0 REGULATORY COMPLIANCE The 1332 and 1334 DVI Distribution Amplifi er have been tested for compliance with FCC and CE Regulations. The Power Adaptor/Supply has been tested for compliance with UL, CSA & CE Regulations. 9.0 CONTACT INFORMATION Should you have questions or require assistance with this product in areas not covered by this manual, please contact Audio Authority using the information below. - Page 12 2048 Mercer Road, Lexington, Kentucky 40511-1071 Phone: 859/233-4599 • Fax: 859/233-4510 Customer Toll-Free USA & Canada: 800/322-8346 Website: http://www.audioauthority.com 752-494 11/05...
