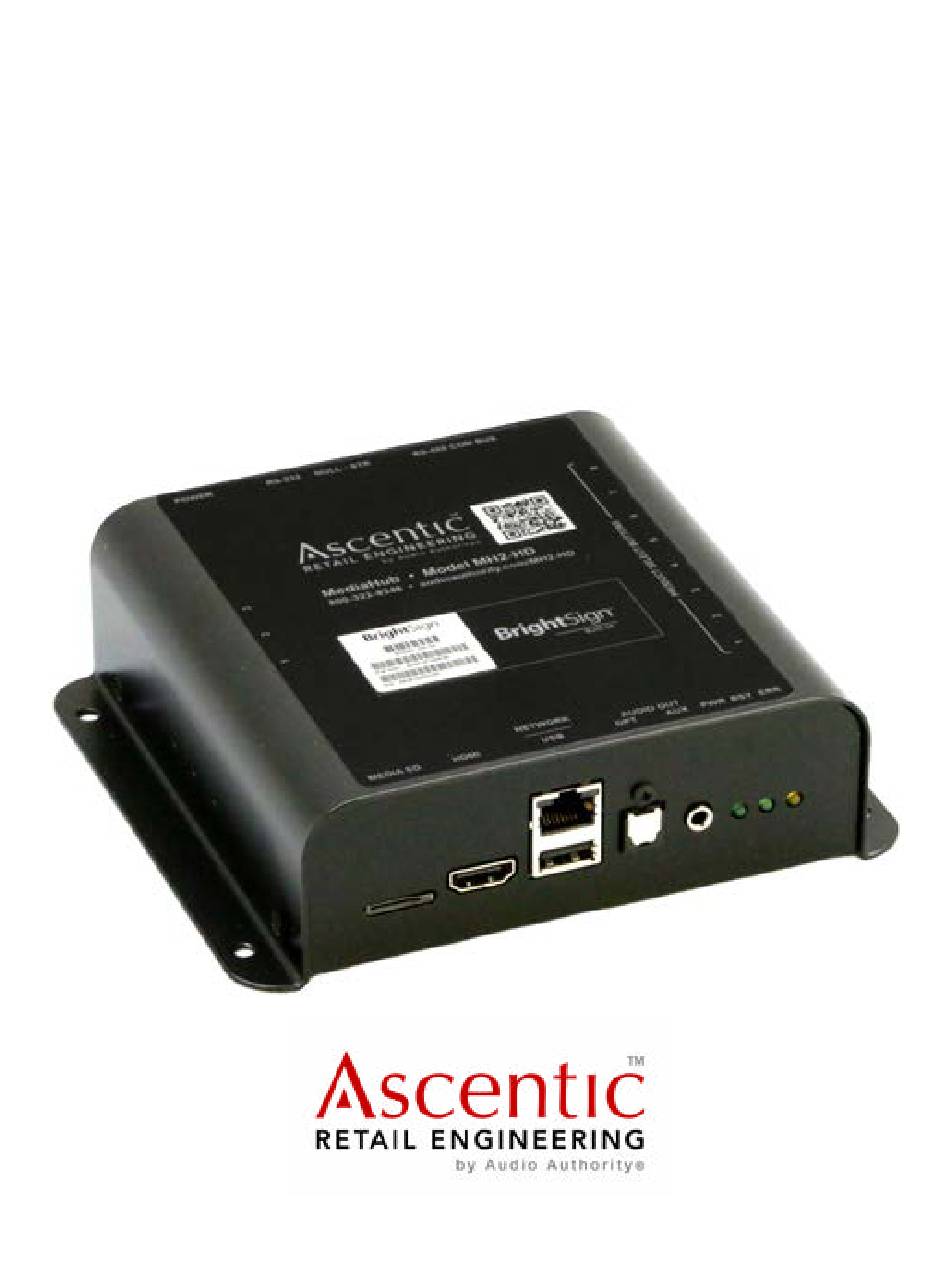

- Page 1 User Manual MH2 MediaHub Audio-Video Switching and Distribution Models Include: MH2-4K, MH2-HD and MH2-HS...

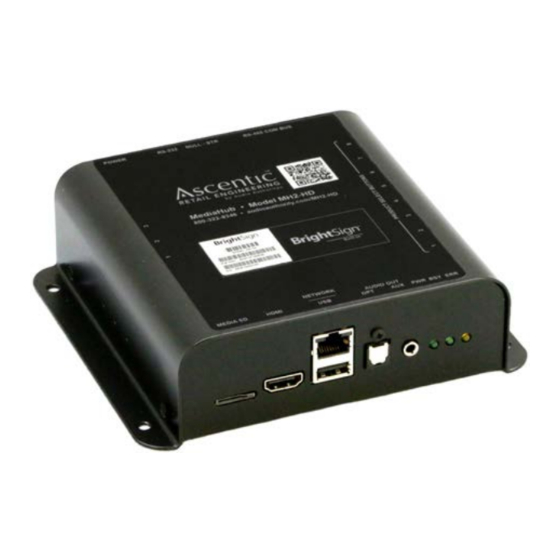

- Page 2 Introduction The MH2-4K, HD, and HS MediaHubs combine interactivity with audio switching and distribution. In addition to video (with optional 4K resolution), this media player offers digital or analog signals through an audio output. Multiple ports on the MH2-4K link interactive peripherals like push-buttons and serial devices including touch screens and touch panels to serve a variety of demonstration designs.
- Page 3 Control Bus (RS-485) The RS-485 control bus allows the MH2-4K to interact with devices such as the Audio Authority TouchSelect panels or the 1895 Visual Volume knob. The MH2-4K can also control switch modules or amplifiers that are linked via the Control Bus.
- Page 4 Internal Settings External Settings (RS-232) Baud rate may be changed via Port BrightAuthor. Baud Rate 115200 Default Baud Rate 115200 Data Bits Data Bits Parity None Stop Bits Parity None Stop Bits Protocol ASCII Send EOL Control Bus Settings (RS-485) Receive EOL Baud Rate 57600...
- Page 5 Installation • Attach the player to a flat surface with the screws provided. • Load programming and media files onto a compatible and properly formatted microSD card. • Connect Easy Plug push-buttons, touch panels or touch screen. • Connect power adapter to AC power, then to the MH2-4K power port. •...
- Page 6 Power Supply: external 12V DC, 5A For a complete list of product specifications and compatible devices please visit www.audioauthority.com/MH2-4k or click this link. Ascentic is a trademark of Audio Authority Corp. 2048 Mercer Road, Lexington, Kentucky 40511-1071 800-322-8346 • 859-233-4599 • Fax: 859-233-4510 E-182 www.audioauthority.com •...
