Page 1: Instruction Manual

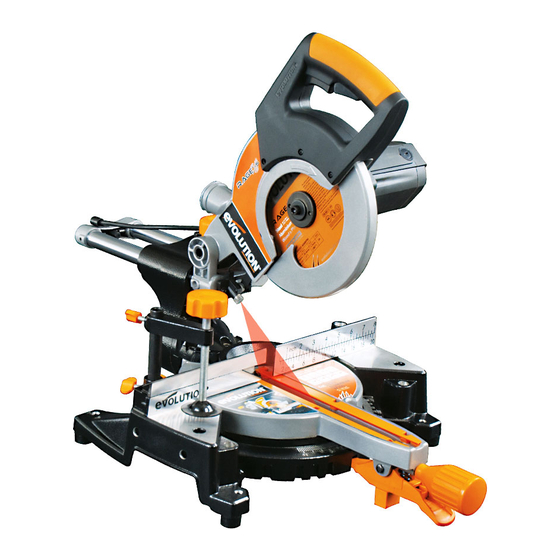

® TCT Multipurpose Sliding Mitre Saw Range Manual Original Instruction Manual Read instructions before operating tools Models manual is applicable to: Rage3-S2102 / Rage3-S2101 / Rage3-S2102eU Rage3S3001 / Rage3S3002 / Rage3S3002eU Rage32552 / Rage32551 /Rage32552eU PUBLISHED DATE: 28.05.12... -
Page 2: Machine Specification
RAGE3-S 210mm TCT Model Specifications MULTIPURPoSE SLIDInG MITRE SAw DESIGnED To CUT Evolution Power Tools reserves the right to Mild Steel Plate – Max Thickness (mm) make improvements and modifications to the Mild Steel Box Section – Max Wall Thickness (mm) design and technical specification of this Wood –... - Page 3 RAGE3-S300 210mm TCT MULTIPURPoSE RAGE3 255mm TCT SLIDInG MITRE SAw wITH 300mm SLIDE MULTIPURPoSE SLIDInG MITRE SAw DESIGnED To CUT DESIGnED To CUT Mild Steel Plate – Max Thickness (mm) Mild Steel Plate – Max Thickness (mm) Mild Steel Box Section – Max Wall Thickness (mm) Mild Steel Box Section –...
-
Page 4: Table Of Contents
TABLE oF ConTEnTS PAGE Machine Specification 2 - 3 Introduction guarantee Vibration Instruction Manual explanation of Labels and Symbols Read instructions before operating this tool. Intended use of this Power Tool 6 - 7 Prohibited use of this Power Tool SAFETY PRECAUTIonS electrical Safety general Power Tool Safety Instructions... -
Page 5: Gb Introduction
InTRoDUCTIon Claims made under this guarantee must be made directly to Evolution Power Tools within Congratulations on your purchase of an the guarantee period. all defective goods shall be returned / collected at Evolution Power Evolution Power Tools machine. This product has been manufactured to the Tools cost. -
Page 6: Vibration
Do not operate this machine if operator can be exposed to high levels warning and/or instruction labels are missing or damaged. Contact evolution Power Tools for of vibration transmitted to the hand and arm. It is possible that the operator could replacement labels. -
Page 7: Prohibited Use Of This Power Tool
when fitted with a correct blade this machine can be used to cut: Wood Wood derived products (MDF, Chipboard, Plywood, Blockboard, Hardboard etc) aluminium Mild Steel (6mm Ø) noTE: Wood containing non galvanised nails or screws can, with care, can be safely cut. ... -
Page 8: General Power Tool Safety Instructions
If an extension cable is required it must be a electric shock. suitable type for use outdoors and so labelled. • Do not abuse the cord. never use the The manufacturers instructions should be cord for carrying, pulling or unplugging followed when using an extension cable. -
Page 9: Health Advice
clothing or jewellery. Keep your hair, instructions, taking into account the clothing and gloves away from moving working conditions and the work to parts. Loose clothes, jewellery or long be performed. Use of the power tool for hair can be caught in moving parts. operations different from those intended could result in a hazardous situation. -
Page 10: Personal Protective Equipment (Ppe)
and that comply with the requirements of the retractable guard or any part of its operating eN 847-1 mechanism. Do Not use saw blades that are damaged or Before each use check the operation of the deformed as they could shatter and cause serious retractable guard and its operating mechanism injury to the operator or bystanders. -
Page 11: Getting Started Unpacking
Place the saw on a secure stationary work glasses with side shield or a full face shield when needed. surface and check the saw over carefully. Check particularly the operation of all the wARnInG: If any parts are missing, do not machines safety features before attempting to operate the machine. -
Page 12: Additional Accessories
R3SM3 additional accessories and information on the use and type of accessory suitable for your machine can be obtained by contacting your local dealer (or evolution Power Tools). UnLATCHInG AnD RAISInG THE CUTTInG HEAD wARnInG: To avoid serious injury, nEVER perform the unlocing or locking procedure unless the saw is oFF and the blade stopped. -
Page 13: Machine Overview
oVERALL VIEw oF MITER SAw ReVeRSe OF MaCHINe (20) (21) (22) (10) (16) (11) (18) (17) (13) (12) (15) (14) (19) 1. on/oFF TRIGGER SwITCH 12. MITRE HAnDLE 2. BLADE GUARD LoCKInG TRIGGER 13. MITRE AnGLE SCALE 3. CUTTInG HAnDLE 14. -
Page 14: Assembly And Preparation
ASSEMBLY AnD PREPARATIon wARnInG: always disconnect the saw from the power source before making any adjustments. noTE: It is recommended that all instructions are always read before operating. PERMAnEnTLY MoUnTInG THE MITRE SAw To reduce the risk of injury from unexpected saw movement, place the saw in the desired location either on a workbench or other suitable machine stand. - Page 15 • Never exchange the laser module assembly for a different type or class of laser. • Repairs to the laser module must only be conducted by evolution Power Tools or their authorized agent. www.evolutionpowertools.com...
- Page 16 LASER ADJUSTMEnT wARnInG: at no time during this procedure should the motor be started. To check laser alignment: • Place a piece of cardboard, or similar, onto the rotary table of the machine. • With the carriage slide in the rearmost position, lower the Cutting Head so that a blade tooth makes a mark in the cardboard.
- Page 17 noTE: The following wARnInG labels may be • Switch on the laser beam. found on this machine: • Position the workpiece on the rotary table and against the fence. • Slide the workpiece into position until LASER RADIATIon Do noT STARE InTo THE BEAM the pencil line on the workpiece and the CLASS 2 LASER PRoDUCT...
- Page 18 DEPTH SToP (Fig. 8) Use of the depth stop allows the operator to cut slots in the workpiece. The downward travel of the Cutting Head can be set so that the saw blade does not completely cut through the workpiece. noTE: When using the Depth Stop it is advisable that the depth of cut is checked using a scrap piece of timber to ensure that the slot cut is correct.
-
Page 19: Operating Instructions
oPERATInG InSTRUCTIonS • Secure the workpiece firmly to the table and against the fence to prevent any CAUTIon: The Mitre Saw should be inspected movement. (particularly for the correct functioning of • Use a Hold Down Clamp if possible but the safety guards) before each use. - Page 20 BEVEL AnGLES (0 AnD 45 Bevel Stop Adjustment • ensure that the Cutting Head is in the locked down position with the latching pin fully engaged in its socket. (see Fig.19) • ensure that the Cutting Head is upright, against its stop and the bevel pointer is indicating 0 on the scale.
- Page 21 • Return the Cutting Head to its upright position. • Loosen the locknut on the 45 Bevel adjustment Screw. • Use a Hex Key to adjust the adjustment Screw in or out as required. (Fig. 15) • Tilt the Cutting Head to the 45 setting and recheck for alignment with the Set Square.
- Page 22 PREPARInG To MAKE A CUT Do noT oVER-REACH Keep good footing and balance. Stand to one side so that your face and body are out of line of a possible kickback. Freehand cutting is a major cause of accidents and MUST noT BE ATTEMPTED.
- Page 23 THE MoToR on/oFF SwITCH (Fig. 19) The ON/OFF Motor Trigger Switch is a non-latching type. It is the upper of the two switches that are positioned inside the Cutting HaNDLe. • Press the switch to start the motor. • Release the switch to turn off the motor. Fig.
- Page 24 SLIDE CUTTInG This saw is equipped with a Sliding Carriage system. Loosening the slide lock screw will release the slide and allow the Cutting Head to move forwards and backwards. (Fig. 23) The saw blade is lowered into the workpiece and then pushed to the rear of the machine to complete a cut.
- Page 25 MITRE CUTTInG (Fig. 27) The rotary table of this machine can be turned through 45 to the left or right from the normal cross-cut (0 ) position. Positive stops are provided at 45 , 30 , 22.5 and 15 both the right hand and left hand sides. Mitre Cutting is possible with or without the Sliding Carriage system being deployed.
- Page 26 To reposition: • Lift up the lever and turn to a convenient position Release the lever • Stand to the left side of the handle when making a cut. when cutting is completed: • Release the ON/OFF trigger switch, but keep your hands in position vand allow the blade to completely stop.
- Page 27 View of guard operating arm spring clip wARnInG: Only carry out this operation with the machine disconnected from the mains supply. wARnInG: Only use genuine evolution blades which are designed for this machine. ensure that the maximum speed of the blade is higher than the speed of the motor.
- Page 28 • Press the black arbor lock button to lock the arbor. (Fig. 37) • Using the supplied Hex Key, release the arbor screw and remove the washer and blade flange and the blade from the arbor. (Fig. 38) noTE: The arbor screw has a LH thread. Turn clockwise to loosen.
-
Page 29: Use Of Additional Accessories
USE oF oPTIonAL EVoLUTIon ACCESSoRIES not supplied as original equipment. All accesories can be purchased from Evolution Power Tools. See ‘Additional Accessories’ section. DUST BAG a Dust Bag can be fitted to the extraction port at the rear of the machine. The Dust Bag is for use when cutting wooden materials only. - Page 30 noTE: approximately 75mm of the Workpiece Support Bar should slide into the base to provide positive location. • Tighten the retaining screw. • Repeat the above for the Left Hand side. To remove a Workpiece Support Bar, simply loosen the relevant retaining screw and slide the Workpiece Support Bar from the machine.
-
Page 31: Final Safety Check List
FInAL SAFETY CHECKS Condition Slides Inserted through the Bevel Neck and connected to the Cutting Head. Locating lugs successfully deployed Positive Stop Installed onto Locking Mechanism Locking Lever Mitre Locking Installed onto Locking Screw Handle Power Cable Routed correctly and fastened to back slide bracket. 50 –... -
Page 32: Maintenance
Replacement inserts (sold in handed pairs) are available For Business Users in the European Union from your supplier or evolution Power Tools. If you wish to discard electrical and electronic To replace the table inserts: equipment, please contact your dealer or supplier for further information. -
Page 33: Your Notes
YoUR noTES www.evolutionpowertools.com... -
Page 34: Parts Diagrams & Ec Declaration Of Conformities
PARTS DIAGRAM (non ASSEMBLY) www.evolutionpowertools.com... - Page 35 ® The manufacturer of the product covered by this Declaration is: Evolution Power Tools, Venture One, Longacre Close, Holbrook Industrial estate, Sheffield, S20 3FR The manufacturer hereby declares that the machine as detailed in this declaration fulfils all the relevant provisions of the Machinery Directive and other appropriate directives as detailed below.
- Page 36 PARTS DIAGRAM (non ASSEMBLY) www.evolutionpowertools.com...
- Page 37 ® The manufacturer of the product covered by this Declaration is: Evolution Power Tools, Venture One, Longacre Close, Holbrook Industrial estate, Sheffield, S20 3FR The manufacturer hereby declares that the machine as detailed in this declaration fulfils all the relevant provisions of the Machinery Directive and other appropriate directives as detailed below.
- Page 38 PARTS DIAGRAM (non ASSEMBLY) www.evolutionpowertools.com...
- Page 39 ® The manufacturer of the product covered by this Declaration is: Evolution Power Tools, Venture One, Longacre Close, Holbrook Industrial estate, Sheffield, S20 3FR The manufacturer hereby declares that the machine as detailed in this declaration fulfils all the relevant provisions of the Machinery Directive and other appropriate directives as detailed below.
- Page 40 ® UK HQ FRAnCE HQ USA HQ Evolution Power Tools, Evolution Power Tools, Evolution Power Tools LLC, Venture One, Longacre Close, 61 avenue Lafontaine, 33560, 8363 Research Drive, Holbrook Industrial estate, Carbon-Blanc, Davenport,Iowa 52806 Sheffield, S20 3FR, UK France U.S.a TeL: +44 (0) 114 251 1022 TÉL: + 33 (0)5 57 30 61 89...
