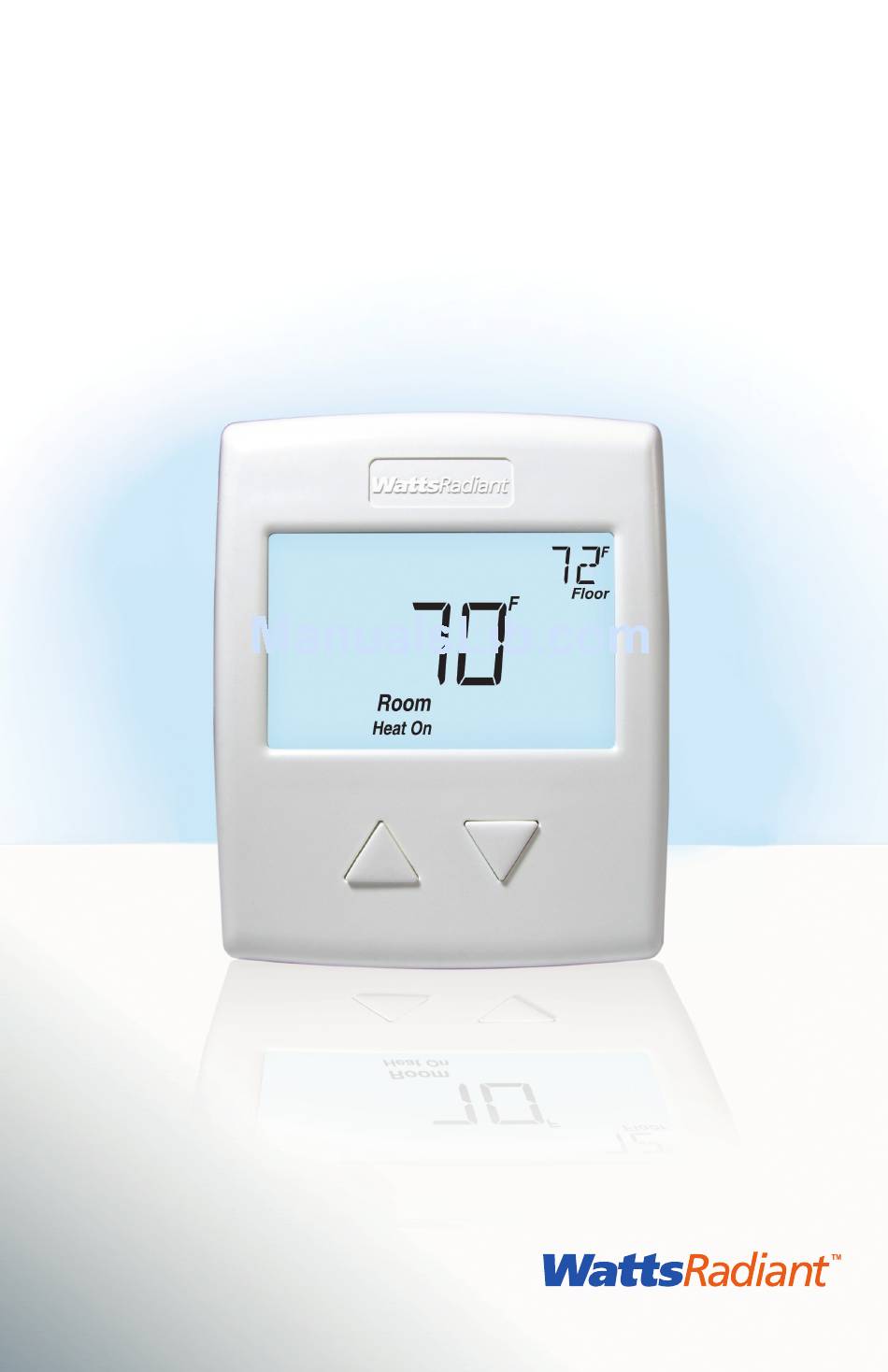

- Page 1 Product Guide Radiant Thermostat 519 of 4 © 203 Watts Radiant...
-
Page 2: User Interface
This brochure will provide you with the information you need to benefit the most from your Watts Radiant Thermostat. Please visit www.wattsradiant.com for more detailed information on this or any other Watts Radiant product. User Interface Display Symbols This thermostat will display symbols on its screen in order to indicate what mode it is in, what temperature it is operating at, or what equipment it is trying to turn on. This section describes each of those symbols. HeaT On Heat is turned on. The floor is at or below the floor minimum temperature. MODe OFF The heating system is off. The floor has reached the WaRnInG SyMbOl floor maximum temperature. Indicates an error is present. PG-WR-Radiant_Thermostat-59 330 2 of 4... -
Page 3: Setting The Temperature
Setting The Temperature To change the heat temperature setting, push the buttons to select a or preferred temperature setting. air Temperature Only - - - - - ----- - - - - - - - - - - - - - - - -- -- -- --- -- -- -- -- --- -- If there is only an air temperature sensor (no floor sensor), the thermostat operates to control your desired air temperature. -
Page 4: User Settings
Settings • Press and hold down both the and buttons for 3 seconds to change from one step to the next. • Release both buttons once the step has been reached. • Press the or the button to change the setting, if available. • Press and hold down both the and buttons for 3 seconds to go to the next step, OR • After 5 seconds of no button activity, the display goes back to normal operation. Display Setting User settings. MODe Select heat or off. UnITS Select the temperature units in degrees Fahrenheit or Celsius. baCK lIGHT Select when the display back light should operate. Options are Off, Auto, On. Auto operates the backlight for 30 seconds after a keystroke. SeT FlOOR Set the floor minimum temperature. Available when an auxiliary floor sensor is connected and the built-in room temperature sensor is on. TyPe Device Type number. eSCaPe Release the and buttons to return to the home screen. More Information This Product Guide contains standard information on WARNING: This product contains chemicals how to make adjustments to an installed product. More known to the State of California to cause cancer and birth defects or other reproductive harm.
