Quick Setup Guide
Invita
For Use With
Conventional systems:
• Up to 2-stage heating, 2-stage cooling,
fan and 2 accessories
Heat pump & dual fuel systems:
• Up to 4-stage heating, 2-stage cooling,
fan, reversing valve and 1 accessory
Accessory options:
• Humidifier, dehumidifier, HRV/ERV
ventilator
Interface Module

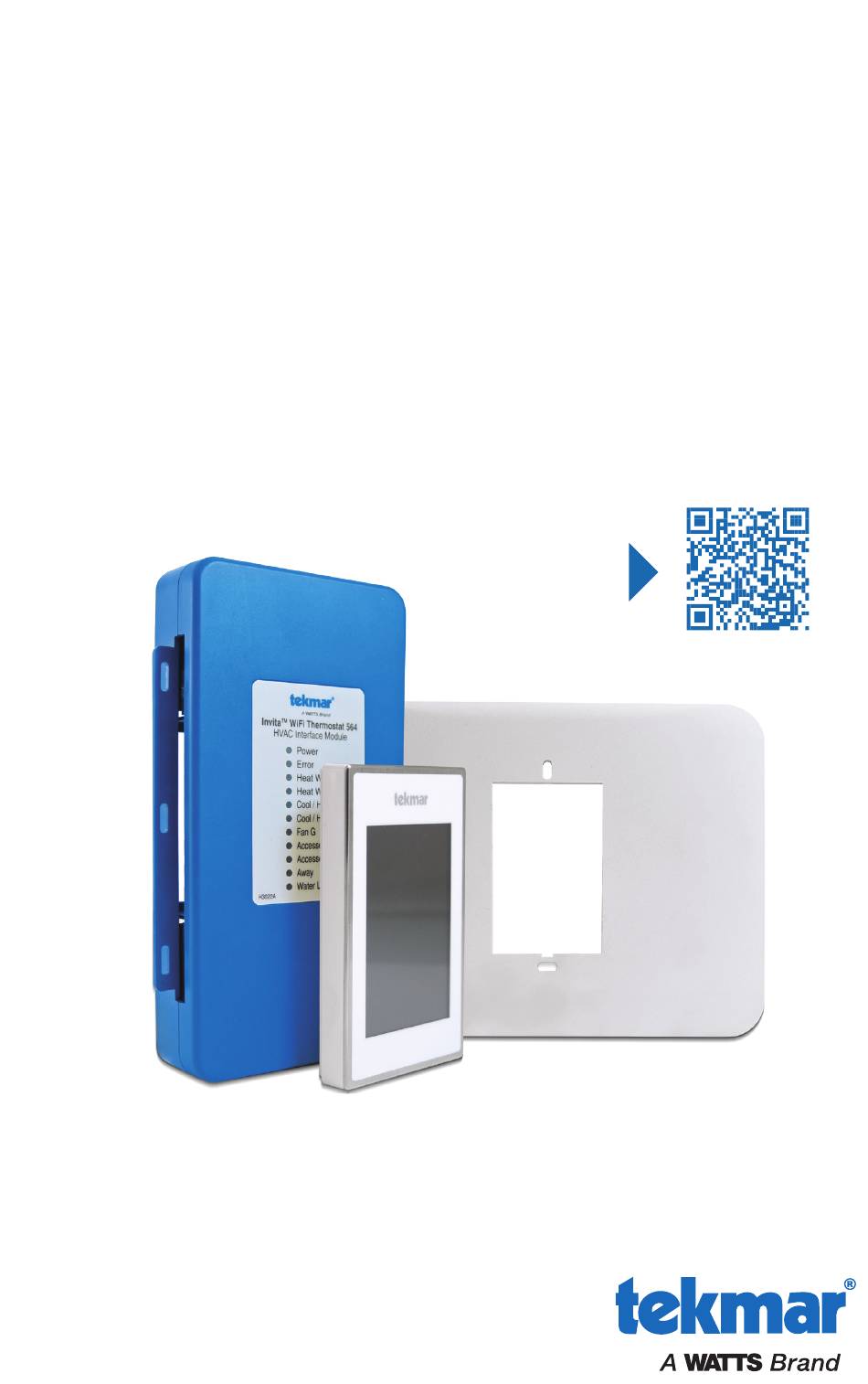

Package Contents
• Invita WiFi Thermostat
564 or 564B
• HVAC Interface
Module
WiFi Thermostat
®
HVAC
WiFi Thermostat
• 4 drywall anchors
• 4 wood screws
• 2 self tapping screws
• Wall trim plate
Need more information?
• Refer to the User Brochure for information
on using the thermostat and app
• Refer to the Voice Control Manual for
details on voice control features
• Refer to the Operation Manual for in-depth
installation and operation details
All literature is available from:
tekmarControls.com/Invita
Scan to open
Invita webpage
Wall Trim Plate
Invita
Advertisement
Table of Contents
Related Manuals for Watts Tekmar Invita 564
Summary of Contents for Watts Tekmar Invita 564
- Page 1 Quick Setup Guide Invita WiFi Thermostat ® For Use With Need more information? Conventional systems: • Refer to the User Brochure for information on using the thermostat and app • Up to 2-stage heating, 2-stage cooling, • Refer to the Voice Control Manual for fan and 2 accessories details on voice control features Heat pump &...
-
Page 2: Table Of Contents
This Quick Setup Guide is intended for use by HVAC professionals. For in-depth operation and troubleshooting details, download the operation manual 564_D from the Invita WiFi Ther- mostat 564 product page on tekmarControls.com. For assistance, contact your local tekmar representative: www.tekmarControls.com/company/contact-representative.html. Or call tekmar 1-800-438-3903 customer service at Table of Contents... -
Page 3: Installation
• Improper installation and operation of this thermostat could result in damage to the equipment and possibly even personal injury or death. • This thermostat is not intended for use as a primary limit control. Other controls that are intended and certified as safety limits must be placed into the control circuit. Thermostat Location Consider the following: •... - Page 4 2. Mount Invita base to wall 4. Attach the thermostat to back plate Remove the back plate from the thermostat. Align the 2 notches at the top of the base plate with the holes on the top of the thermostat then rotate on the hinge point down to close.
-
Page 5: Equipment Connections
• Humidifier, dehumidifier, HRV/ERV ventilator HRV/ERV Ventilator Optional Outdoor Sensor HVAC Humidifier Interface Module Electric Coil Invita WiFi Thermostat Watts FloodSafe Water ® Detector Shutoff Air Conditioner or Heat Pump Hot Water Tank Furnace 5 of 16 © 2019 tekmar 564_Q - 10/19... -
Page 6: Wiring The Hvac Interface Module
Wiring the HVAC Interface Module ACC1 ACC2/O/B Ensure power to connecting equipment is off. To prevent the risk of personal injury and/or death, make sure power is not applied to the thermostat or HVAC WATER AWAY LEAK Interface Module until they are fully installed and ready for configuration. All WATER LEAK DETECTOR work must be done with power to the circuit being worked on turned off. - Page 7 Up to 2-Stage Heat Pump with Auxiliary Heat The thermostat operates high cost electric resistance heat when the heat pump is unable to meet the building heating load. Essential Settings: Jumpers: HVAC Interface Module Heating Type = Heat Pump J1 = On Acc1 Equipment = 2 Heat Pump/1 Aux J2 = On...
-
Page 8: Outdoor Sensor
Dehumidification using a DX Coil The thermostat operates the cooling system and runs the system fan at low speed to dehumidify the air. Essential Settings: External Jumper Wires: Accessory Relay 1 or 2 = Dehumidifier R to Acc1 Dehumidifier Type = DX Coil R to O/B HVAC Interface Module Acc1... - Page 9 Watts FloodSafe Water Detector Shutoff ® The Watts FloodSafe Water Detector Shutoff LFWDS prevents catastrophic water damage in the event of a water heater leak. The thermostat provides an email notification in the event that the FloodSafe Water Detector Shutoff LFWDS detects a water and shuts off the supply line to the water heater.
-
Page 10: Startup
Startup To prevent the risk of personal injury and/or death, make sure power is not applied to the thermostat or HVAC Interface Module until they are fully installed and ready for configuration. All work must be done with power to the circuit being worked on turned off. Restore power to the connected equipment. -
Page 11: Settings Menu
Settings menu Press the button to enter the settings menu MENU SELECTION Program schedule Toggle between AWAY SCHEDULE home and away to save energy Set °F or °C, Time is automatically DISPLAY TIME background and set when connected to language, and view the Internet. - Page 12 Relay menu RELAYS The Relay menu determines how the thermostat Heating Type: Conventional operates the mechanical equipment. Equipment: 1 Heat/1 Cool • Press the button to enter the settings menu • Press the SETUP button Radiant Floor Heating: No • Press the RELAYS button Heat 2 Differential: 2.0 °F Select conventional or heat pump Heat 2 Time Delay: 1 min...
-
Page 13: Menu Map
Menu Map HOME Toolbox: Away Error: (Displays info only if error present) At Home Access Level: User/Installer Away Status: Operational Status Readout Software Version: (Displays version code) Load Defaults: Yes/No Display Calibrate Touchscreen: (Use to improve alignment) Shortcut to Temperature units: °F/°C Temp: Schedule Settings... -
Page 14: Technical Data
Technical Data Invita WiFi Thermostat 564 Submittal, Quick Setup Guide, Operation Manual, User Manual, Literature Voice Command Manual, Job Record Packaged weight 1.3 lb. (600 g) Display: 4-1/2" H x 2-3/4" W x 9/16" D (114 x 70 x 14 mm) Dimensions HVAC Interface Module: 7-7/16"... -
Page 15: Voice Controls
Voice Controls The Invita WiFi Thermostat includes the capability to connect to the Amazon Alexa and Google Home mobile apps. In order to use these features, the thermostat must be first connected to the Internet and be registered to a mobile app account. For details on setting up and using the voice control features of you Invita WiFi Thermostat, refer to the Voice Control Manual, available from tekmarControls.com. -
Page 16: Warranty
Warranty Limited Warranty The liability of tekmar under this are the Purchaser’s sole responsibility and obligation. warranty is limited. The Purchaser, by taking receipt Purchaser shall indemnify and hold tekmar harmless of any tekmar product (“Product”), acknowledges from and against any and all claims, liabilities and the terms of the Limited Warranty in effect at the damages of any kind or nature which arise out of or time of such Product sale and acknowledges that it...
