Installation & Operation Manual

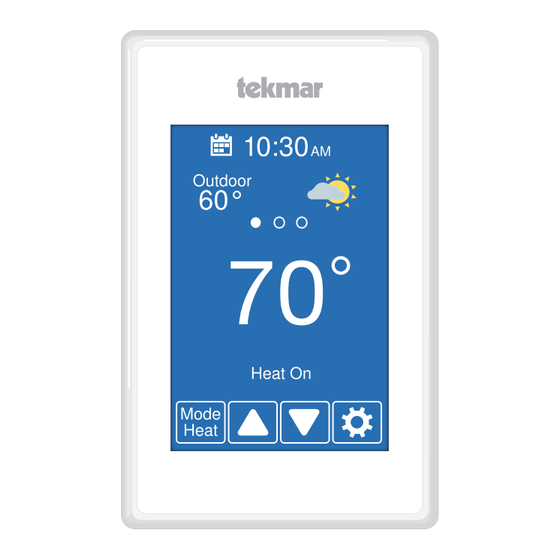

WiFi Thermostat 561
Introduction
The WiFi Thermostat 561 provides precise temperature control of a one-stage heating
system. When connected to the Internet, the mobile app and website allows you to
control the thermostat remotely. The thermostat and mobile app include an away
feature that overrides the schedule to lower the temperature and increase energy
savings. The thermostat is designed to support radiant floor heating and optional
floor sensors can be installed to enhance comfort and protect floor coverings.
© 2016 tekmar 561 _ D - 12/16
Features
• Mobile app for iOS and Android
• Supports optional floor sensor
• Automatic software updates
• Outdoor temperature
• Local weather
• Email error and warning notifications
• Time clock updated from Internet
• 7 day programmable schedule
• Away energy savings mode
• Early start
• Energy monitoring
• English/Français/Español languages
• 3.5" color touchscreen
• Selectable background colors
561 _ D
12/16
Zoning
Replaces: 11/16
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Watts Tekmar 561
Summary of Contents for Watts Tekmar 561
- Page 1 • Time clock updated from Internet • 7 day programmable schedule • Away energy savings mode • Early start • Energy monitoring • English/Français/Español languages • 3.5" color touchscreen • Selectable background colors © 2016 tekmar 561 _ D - 12/16...
-
Page 2: Table Of Contents
Setup - Alerts ....................18 Setup - Relays ....................19 tekmar Connect Web and Mobile App .............20 Troubleshooting ....................22 Error Messages ....................22 Technical Data ....................23 Limited Warranty and Product Return Procedure ...........24 © 2016 tekmar 561 _ D - 12/16 2 of 24... - Page 3 Do not attempt to service the thermostat. There are no user serviceable parts inside the thermostat. Attempting to do so voids warranty. © 2016 tekmar 561 _ D - 12/16 3 of 24...
-
Page 4: Installation
• The maximum length of wire is 500 feet (150 m). • Strip wire to 3/8" (10 mm) for all terminal connections. • Use standard 8 conductor, 18 AWG wire. © 2016 tekmar 561 _ D - 12/16 4 of 24... -
Page 5: Removing The Thermostat Base
Please be aware local codes may require this thermostat to be installed or connected by an electrician. Stud Thermostat Base Thermostat Front Switch " (83 mm) Thermostat Front Wall Thermostat Stud Base © 2016 tekmar 561 _ D - 12/16 5 of 24... -
Page 6: Application 561-1
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Electrical WiFi Thermostat 561 Zone Valve Control or Switching Relay AWAY AWAY ZVC1 © 2016 tekmar 561 _ D - 12/16 6 of 24... -
Page 7: Application 561-2
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Electrical WiFi Thermostat 561 Zone Valve Control or Switching Relay AWAY AWAY ZVC1 © 2016 tekmar 561 _ D - 12/16 7 of 24... -
Page 8: Application 561-3
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Electrical WiFi Thermostat 561 Zone Valve Control or Switching Relay AWAY AWAY ZVC1 © 2016 tekmar 561 _ D - 12/16 8 of 24... -
Page 9: Application 561-4
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Electrical WiFi Thermostat 561 Zone Valve Control or Switching Relay AWAY AWAY ZVC1 © 2016 tekmar 561 _ D - 12/16 9 of 24... -
Page 10: Sequence Of Operation
Warm Weather Shut Down (WWSD) The heating system can automatically shut off based upon the outdoor temperature and the WWSD setting. This provides a convenient way to shut off radiant floor heating. © 2016 tekmar 561 _ D - 12/16 10 of 24... -
Page 11: User Interface
Go to settings Touch adjust temperature Save Cancel Hold overrides the programmed schedule 'Save to schedule' applies until the time shown the new temperature to the current schedule event. © 2016 tekmar 561 _ D - 12/16 11 of 24... -
Page 12: User Settings
Set to On to follow the time required to heat a room schedule. Set to Off to use and starts early. the same temperature all of the time. Creates a new schedule. © 2016 tekmar 561 _ D - 12/16 12 of 24... -
Page 13: Display
White, Blue, BACKGROUND Black, Latte, Blue Select the background color. Espresso English, LANGUAGE Español, English Select the language. Français SCREEN CLEAN Locks screen for 10 seconds to allow cleaning. © 2016 tekmar 561 _ D - 12/16 13 of 24... -
Page 14: Time
Select the brightness when not in use. Incorrectly setting the time and date manually may prevent the thermostat from communicating to the mobile app. Automatic time source is recommended when using an Internet connection. © 2016 tekmar 561 _ D - 12/16 14 of 24... -
Page 15: Wifi
Step 6 Enter WiFi password. Enter ZIP or postal code. Select if the time is set This determines your automatically from the location for weather Internet or manually. information. © 2016 tekmar 561 _ D - 12/16 15 of 24... -
Page 16: Installer Settings
SOFTWARE VERSION J1249A Display the software version. LOAD DEFAULTS Yes, All settings are returned to factory defaults. CALIBRATE TOUCHSCREEN Recalibrate the screen after loading factory defaults. © 2016 tekmar 561 _ D - 12/16 16 of 24... -
Page 17: Setup - Temp
Select the maximum heating temperature limit. Off, 4.5 to 35.0°C Off, 40 to 95°F WARM WEATHER SHUT DOWN Select the outdoor temperature at which the heating is shut off. Off, 4.5 to 35.0°C © 2016 tekmar 561 _ D - 12/16 17 of 24... -
Page 18: Setup - Sensors
Sends an email notification if the room exceeds this Off, 4.5 to 38.0°C temperature. ROOM COLD WARNING Off, 40 to 100°F Sends an email notification if the room falls below this Off, 4.5 to 38.0°C temperature. © 2016 tekmar 561 _ D - 12/16 18 of 24... -
Page 19: Setup - Relays
Setup - Relays Setting Range Default RADIANT FLOOR HEATING Select if the first stage W1 heats a radiant floor. © 2016 tekmar 561 _ D - 12/16 19 of 24... -
Page 20: Tekmar Connect Web And Mobile App
Edit your account and save. Devices page. from the thermostat into the mobile app. Then enter the thermostat's room name. The app supports multiple site locations. Enter the location for the thermostat. © 2016 tekmar 561 _ D - 12/16 20 of 24... - Page 21 70° TEMP 40° 100° 72° Save temperature Temperature change hold change to the schedule SAVE TO CANCEL PROGRAM HOLD until schedule change Return to home view My Devices Account © 2016 tekmar 561 _ D - 12/16 21 of 24...
-
Page 22: Troubleshooting
ROOM COLD WARNING The room temperature is below the Room Hot Warning setting in the Alerts menu. The warning will automatically clear once the room temperature falls below the setting. © 2016 tekmar 561 _ D - 12/16 22 of 24... -
Page 23: Technical Data
NTC thermistor, 10 kΩ @ 77°F (25°C ±0.2°C) ß=3892 – Included None – Optional tekmar type # 070, 072, 073, 076, 077, 079, 084 Communications WiFi 802.11n, 2.4 GHz, WPA2 encryption Mobile app Apple iOS, Android © 2016 tekmar 561 _ D - 12/16 23 of 24... -
Page 24: Limited Warranty And Product Return Procedure
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information: Watts.com/prop65 All speci cations are subject to change without notice Tel: (250) 545-7749 • Fax: (250) 984-0815 tekmarControls.com...
