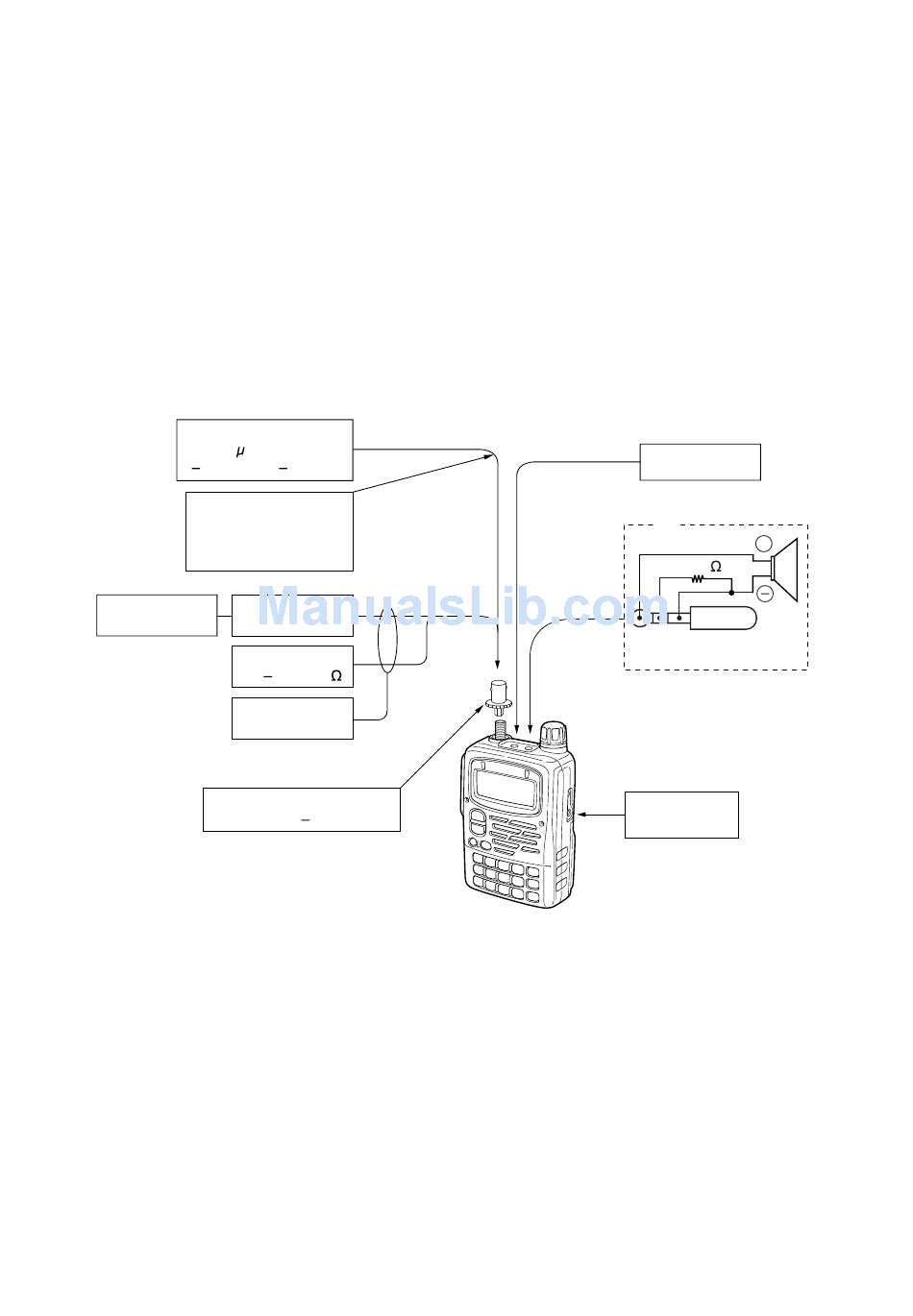

• CONNECTION
Standard signal generator
0.1 V to 32 mV
( 127 dBm to 17 dBm)
CAUTION:
DO NOT transmit while
an SSG is connected to
the antenna connector.
FM
deviation meter
AD-92SMA
Optional SMA BNC adaptor
to the antenna connector
Attenuator
40 dB or 50 dB
RF power meter
0.1 10 W/50
Frequency
counter
to [MIC]
to [SP] jack
5 - 2
Audio generator
JIG
+
68 k
1/8" (3.5 mm)
3-conductor plug
Power supply
11 V / 3 A
