Summary of Contents for Mobi Technologies DualScan

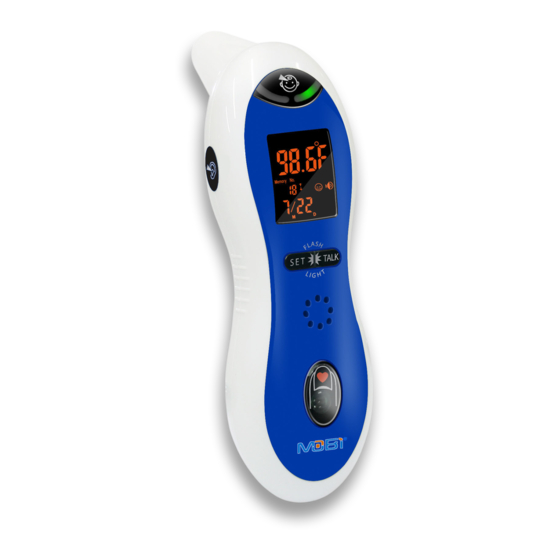

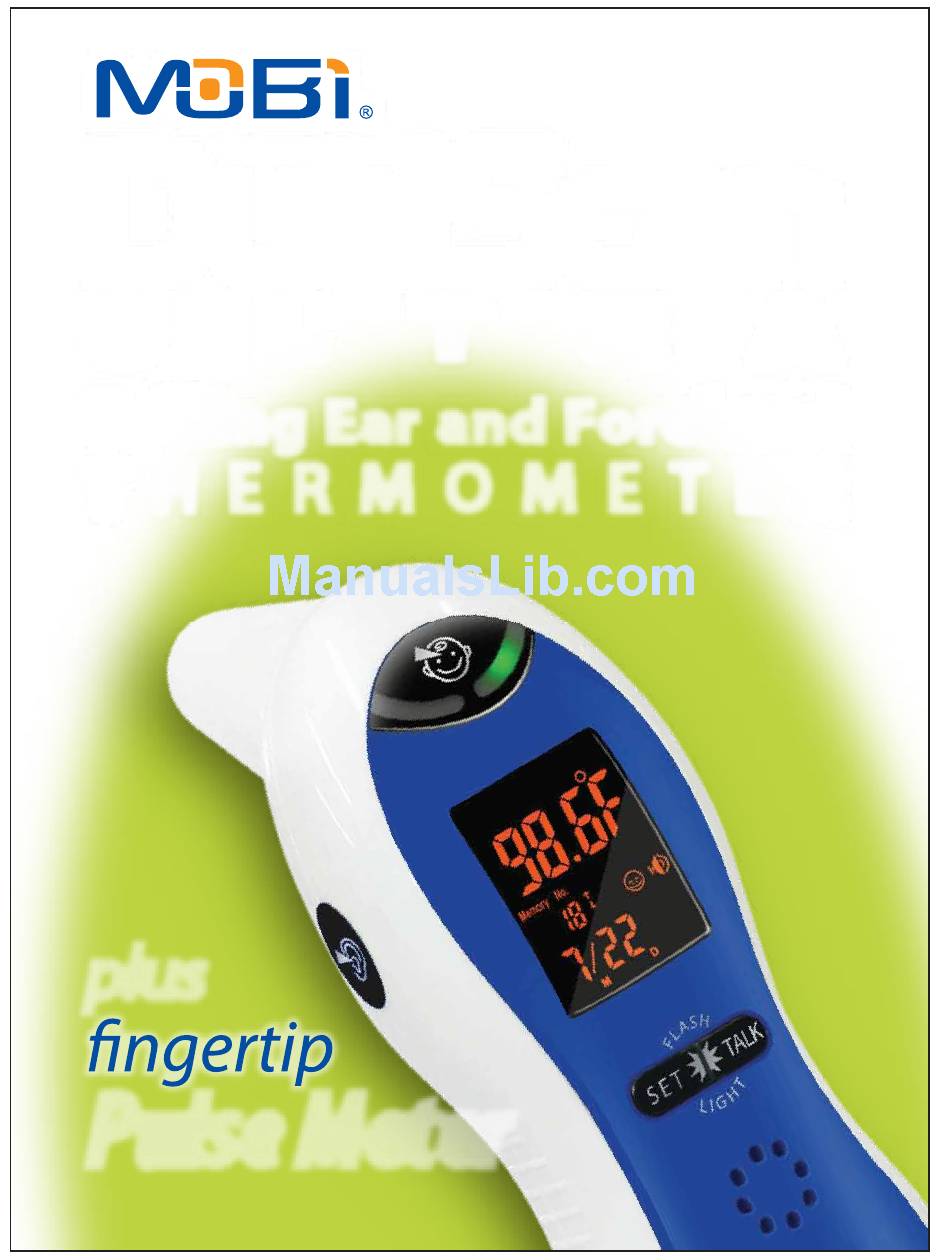

- Page 1 DualScan Talking Ear and Forehead T H E R M O M E T E R plus Pulse Meter...
-
Page 2: Safety Precautions
User’s Manual for DualScan Ultra Digital Thermometer ™ - Thank you for purchasing our DualScan Ultra thermometer. For optimal use ™ of this product, be sure to read this user manual before any operation. - Remove safety tab from battery. Open battery case and gently pull out the plastic safety tab from underneath the battery. - Page 3 WARNING Use of this thermometer is not intended as a substitution for consultation with your physician. Measurement results are for reference only. They cannot be used as a clinical assessment or medical diagnostic basis. Contact your physician if you have or suspect any health concerns.
-
Page 4: Interface Layout
RECOMMENDATIONS - Don't use the product for other purposes then those propose herein. - This is not a waterproof device. Clean it only with dampened cloth gently. - It is unsafe and hazardous to leave the product exposed to any chemical solvent, direct sunshine or high temperature. -
Page 5: Lcd Display
LCD DISPLAY Indicates AM or PM when time of day is displayed below it Numerical Readings for Temperature / Time / Pulse Memory Number heading (Memory Numbers displayed below) Calendar Year / Number of the previous reading in Memory Calendar Month Calendar Day Indicates Ear Temperature Button was used Indicates Audio Talking Mode in use... -
Page 6: Primary Functions
PRIMARY FUNCTIONS Calendar Date falls within Gregorian calendar year 2001–2099. Time of Day is shown in 24 hour shifts. The initial date for a powered unit is set as January 1st of the manufacturing year. Room Temperature is displayed with Time of Day (alternating every 5 seconds) when not in use otherwise. -
Page 7: Measurement Preparations
Large Heart When Large Heart symbol your heart beat as you your Pulse leave your Rate will be thumb on displayed in the Heart heart beats Rate Button. per minute. • The Heart Rate is usually read within 15 seconds if the Large Heart symbol between your thumb and the sensor is not optimal and will result in an ERR (error) message on the display indicating the Heart Rate was not measured. - Page 8 HOW TO TAKE TEMPERATURE READINGS To measure Ear Temperature Ear Button cover from the unit, and insert the slimmer Ear Forehead Probe tip just slightly Probe Cover into the ear opening, then press and hold the Ear Button to measure the body temperature.
-
Page 9: Advanced Operation
Display of Measurement Results Temperature Range: Results shown from 89.6°F to 109.3°F (32.0°C to 42.9°C). “HI” is displayed for all results above 109.3°F (42.9°C), and “LO” displayed for result below 89.6°F (32.0°C) Fever Diagnosed: a RED LED lights with results from 100.4°F (38.0°C) to 109.3°F (42.9°C) No Fever: a GREEN LED lights with results from 96.0°F (35.6°C) to 100.3°F (37.9°C) Thirty seconds after a measurement the unit automatically returns to Clock Mode. - Page 10 To retrieve Readings from the Memory Press and release the SET Button to retrieve the most recent reading recorded in the Memory. It will show the Body Temperature, the Type of Reading (ear or forehead), the Fever/No Fever colored light, the Date it was recorded, and the Memory Number (highest number in memory).
-
Page 11: To Set To Sleep Mode
To set to Sleep Mode The unit enters Sleep Mode one minute after the last button is pressed. Sleep Mode Sleep Mode (enabled) (disabled) To change between Fahrenheit or Celsius Press the Ear Button the TALK Button together. The unit will change from which ever scale it is in, to the other…Celsius or Fahrenheit. -
Page 12: Replace Batteries
RECOMMENDATIONS For users not familiar with digital thermometers, it is recommended that you measure the same ear 3 times during initial usage. The maximum reading shall Wait about 30 seconds before measuring the same patient again to factor in changes of skin condition. For users in sound health, both ears will be virtually the same in terms of body temperature. -
Page 13: Maintenance, Storage And Calibration
MAINTENANCE, STORAGE AND CALIBRATION Maintenance: 1. Remove all stains from the device with a soft, dry cloth. 2. Clean the tip of the probe as follows: Wipe the surface gently with a swab of cotton or a soft cloth moistened with alcohol until no dirt or wax remains. Allow the alchol to dry before using thermometer again. -
Page 14: Unit Specifications
UNIT SPECIFICATIONS • Product Name: DualScan Ultra Thermometer • Model: 70120 • Power supply: DC3V (2 x AAA battery) • Temperature Sensing Part: IR sensor • Measuring range: 32.0°C - 42.9°C (89.6°F -109.3°F) • Room Temperature: 5.0°C - 59.9°C 141.0°F -139.8°F) •... -
Page 15: Explanation Of Symbols
EXPLANATION OF SYMBOLS Type B Applied part Disposal in accordance with Directive 2002/96/EC (WEEE) The name and the address of the manufacturer The name and the address of the authorised representative in the European Community Complies with the European Medical Device 0197 Directive (93142/EEC) and amended by directive 2007/47/EC requirements. -
Page 16: Guidance And Manufacturer's Declaration
GUIDANCE AND MANUFACTURER'S DECLARATION Guidance and manufacturer's declaration - electromagnetic emissions below. The customer or the user must ensure that it is used in such an environment. Emissions Test Compliance Electromagnetic environment - guidance RF emissions Group2 The device must emit electromagnetic e energy in order to perform its intended CISPR 11 function. - Page 17 Guidance and manufacturer's declaration - electromagnetic immunity The device is intended for use in the electromagnetic environment specified below. The customer or the user should assure that it is used in such an environment. Electromagnetic IEC 60601 Immunity test Compliance level environment - guidance test level Floors should be wood,...
- Page 18 Guidance and manufacturer's declaration - Electromagnetic immunity The device is intended for use in. the electromagnetic environment specified below. The customer or the user should assure that it is used in such an environment. Portable and mobile RF Communications equipment should be used no closer to any part of the device, including cables, than the recommended separation distance calculated from the...
- Page 19 assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the device is used exceeds the applicable RF compliance level above, should be observed to verify normal operation.
-
Page 20: Declaration Of Conformity
NOTE 2 These guidelines may not apply in all situations. Electromagnetic and people. DECLARATION OF CONFORMITY Mobi Technologies, Inc. declares that the (Mobi DualScan Ultra) complies with the following normative documents: IEC60601-1, IEC60601-1-2, IEC60601-1-4, ASTM E1965-98, IS010993-5, I5010IS010993-1010993-1, ISO 14971, EN 124705. -
Page 21: Troubleshooting Guide
TROUBLESHOOTING GUIDE Troubles Check lists Countermeasures Battery drained Change batteries No response/ Battery in wrong polarity? Automatic Take out battery, reinsert reset when pulling battery correctly out insulator Poor battery contact Battery symbol Change new battery Low battery on LCD “Lo”... -
Page 22: Limited Warranty
LIMITED WARRANTY Mobi Technologies, Inc. warrants this product to be free from defects in material and workmanship for a period of ninety (90) days from the date of purchase. Should this product prove to be defective at any time during the warranty period, Mobi Technologies, Inc.
