Air Non-Contact
Forehead Thermometer
Item No: 70117
Instruction Manual
Please read this instruction manual completely before operating.
Package Contents
Quantity
Parts
1pc

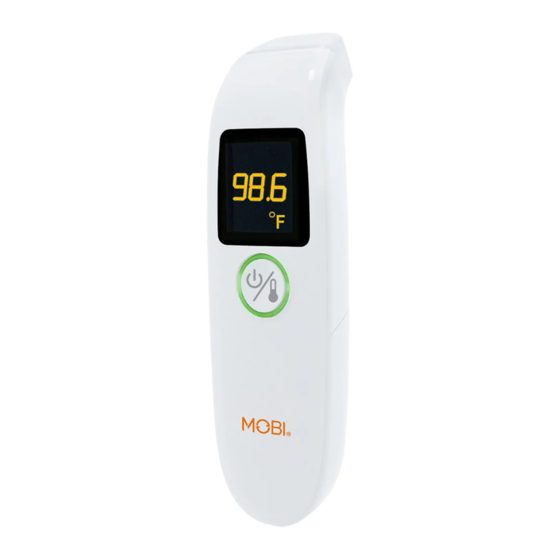

Air Non-Contact Forehead Thermometer
2pc
1.5V (AAA) Batteries
1pc
User Manual
Product Specification
1. Distance Sensor
2. Infrared Sensor
3. LCD Display
4. Power/Scan Button
5. MEM - Memory Button
6. Temperature Mode Selection
7. Battery Cover
1. Forehead Temperature Symbol
2. Ambient Temperature Symbol
3. Object Temperature Symbol
4. Low Battery Symbol
5. Temperature Display
6. C°/F° Symbol
7. Memory Mode Symbol
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Mobi Technologies 70117
Summary of Contents for Mobi Technologies 70117
- Page 1 Air Non-Contact Forehead Thermometer Item No: 70117 Instruction Manual Please read this instruction manual completely before operating. Package Contents Quantity Parts Air Non-Contact Forehead Thermometer 1.5V (AAA) Batteries User Manual Product Specification 1. Distance Sensor 2. Infrared Sensor 3. LCD Display 4.
- Page 2 Installing / Replacing Battery • Located at the back lower base of the thermometer is the battery cover. • Insert two AAA batteries to match the “+” and “- “as illustrated in the battery compartment. • Make sure no plastic tabs are in between the batteries and the springs. •...
- Page 3 Temperature Indicators • This thermometer has a fever indication light. • A Green LED will light up around the Power/Scan button if the temperature is between 93.2°F(34.0°C) ~ 100.3°F(37.9°C). • A Red LED will light up around the Power/Scan button if the temperature is between 100.4°F(38.0°C) ~ 109.4°F(43.0°C) Note: If thermometer is placed too far away to take temperature the LED will light up BLUE and beep until in the proper position.
- Page 4 Object / Food Temperature • Ensure the unit is in ‘Object mode’. In the upper right-hand corner, there will be an icon of a bottle. If you do not see the bottle icon in the upper right hand corner press and release the ‘MODE’ button switch modes until the correct icon displays on screen.
- Page 5 Full responsibility for the conformance of the product to the standard is assumed by MOBI Technologies Inc. Los Angeles, CA, 90015. • ASTM laboratory accuracy requirements for the thermometer only in the display range of 98 °F to 102.2 °F (37 °C to 39 °C) for infrared thermometers is ±...
- Page 6 There will be a charge for repair caused for such damage. This warranty becomes void upon purchase from an unauthorized, third-party seller. This warranty excludes all incidental or consequential damages and any liability other than stated above. Questions? Please visit: www.getmobi.com Support Portal: https://mobisupport.zendesk.com Support Ticket: https://www.getmobi.com/gethelp © 2022 MOBI Technologies, Inc. All Rights Reserved...
Need help?
Do you have a question about the 70117 and is the answer not in the manual?
Questions and answers
The battery cover is stuck. How to get it off?
The manual does not provide specific instructions for removing a stuck battery cover. However, you can try the following general steps:
1. Ensure you are sliding or pressing the cover in the correct direction as indicated in the manual.
2. Apply gentle pressure while trying to slide or lift the cover.
3. Use a small tool, such as a coin or flathead screwdriver, to help pry it open carefully without applying excessive force.
4. If the cover is stuck due to dirt or debris, gently clean around the edges with a soft cloth.
5. Avoid using excessive force to prevent damage.
If the cover remains stuck, contact MOBI Technologies support for further assistance.
This answer is automatically generated
