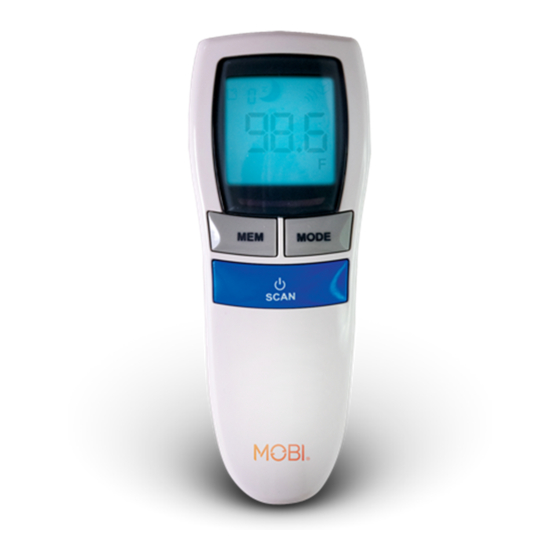

Air Non-Contact Forehead / Object
Thermometer
Model No.: 70118
Instruction Manual
Please Read this instruction Manual Completely before operating
• For proper measurements always store the device in same area being used for at least 30
Minutes before use. An unexpected fluctuation of ambient temperature is likely to lower
measuring accuracy.
• Do not talk or move body during measurement.
• Temperature is likely to increase immediately after exercise, bathing or other physical exertion.
If measurement appears to be incorrect please wait 5-15 minutes before taking measurement
again.
• Replace battery when low battery indicator is On.
• Press the Power Button to Turn the Thermometer ON. The Unit will run a self-test and all
symbols on the display will momentarily appear.
• Ensure that the thermometer is in the human mode; the Human symbol will be on the display.
Press and release MODE button to toggle between different 4 Modes (Human with Sound,
Object with Sound, Human Without Sound, Object without sound).
• Aiming the sensor at the person's Forehead between the eyebrows, approximately 1 Inch (0.5 - 3
cm) away. Press and release SCAN Button, you will hear a short beep means this temperature
reading has been completed.
• If the temperature measurement is below
appearing next to the reading.
•
If the reading is 100.4 °F or 38°C or above, a Frowning Face
the RED LED light up.
MEASUREMENT PREPARATIONS
Forehead Temperature
100.4 °F or 38°C a Smiling Face
will be
will be displayed and
