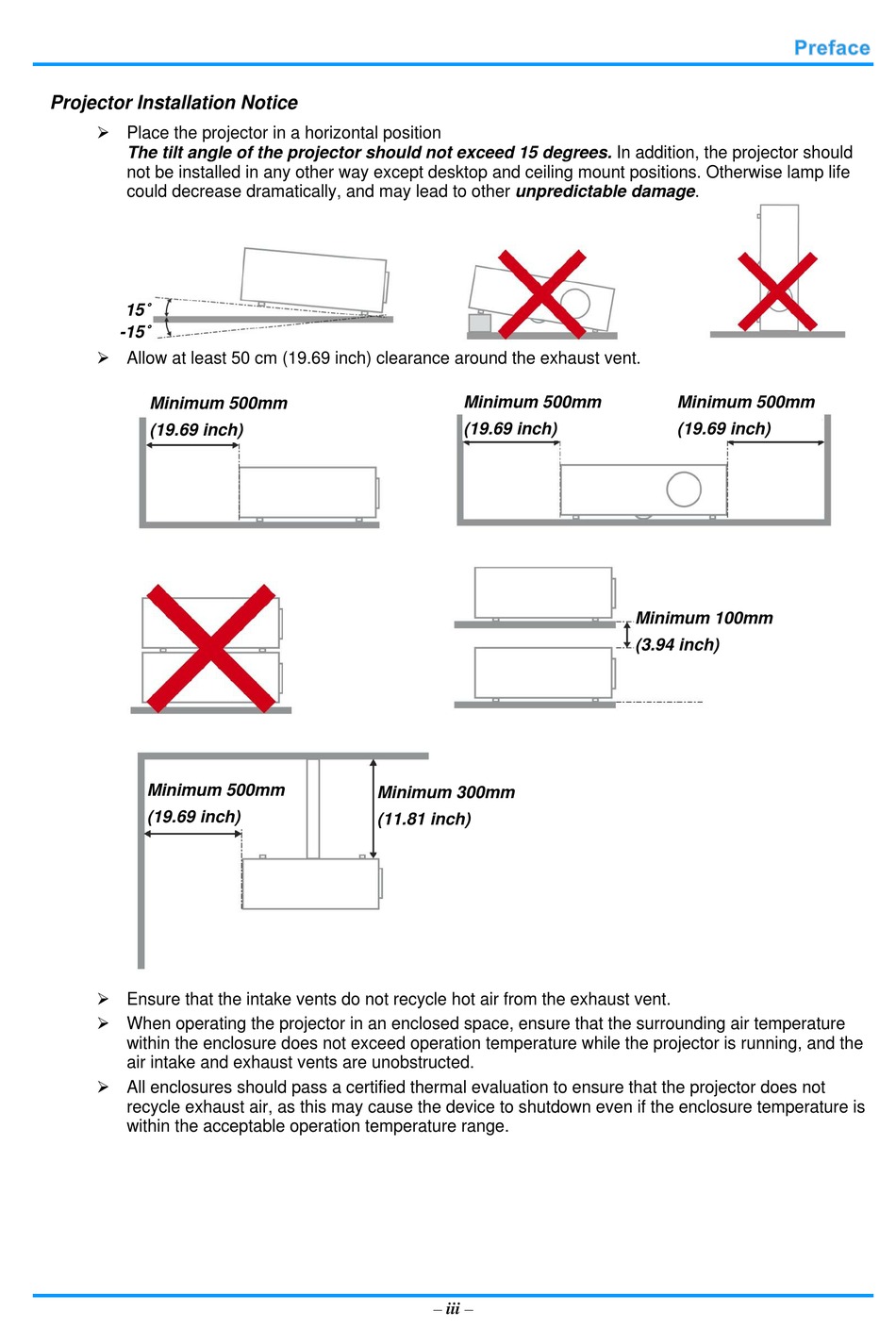

Projector Installation Notice
 Place the projector in a horizontal position
The tilt angle of the projector should not exceed 15 degrees. In addition, the projector should
not be installed in any other way except desktop and ceiling mount positions. Otherwise lamp life
could decrease dramatically, and may lead to other unpredictable damage.
°
15
°
-15
 Allow at least 50 cm (19.69 inch) clearance around the exhaust vent.
Minimum 500mm
(19.69 inch)
Minimum 500mm
(19.69 inch)
 Ensure that the intake vents do not recycle hot air from the exhaust vent.
 When operating the projector in an enclosed space, ensure that the surrounding air temperature
within the enclosure does not exceed operation temperature while the projector is running, and the
air intake and exhaust vents are unobstructed.
 All enclosures should pass a certified thermal evaluation to ensure that the projector does not
recycle exhaust air, as this may cause the device to shutdown even if the enclosure temperature is
within the acceptable operation temperature range.
Minimum 500mm
(19.69 inch)
Minimum 300mm
(11.81 inch)
– iii –
Minimum 500mm
(19.69 inch)
Minimum 100mm
(3.94 inch)
